Dub Luce Fineline LED 48V Track System Components

Description

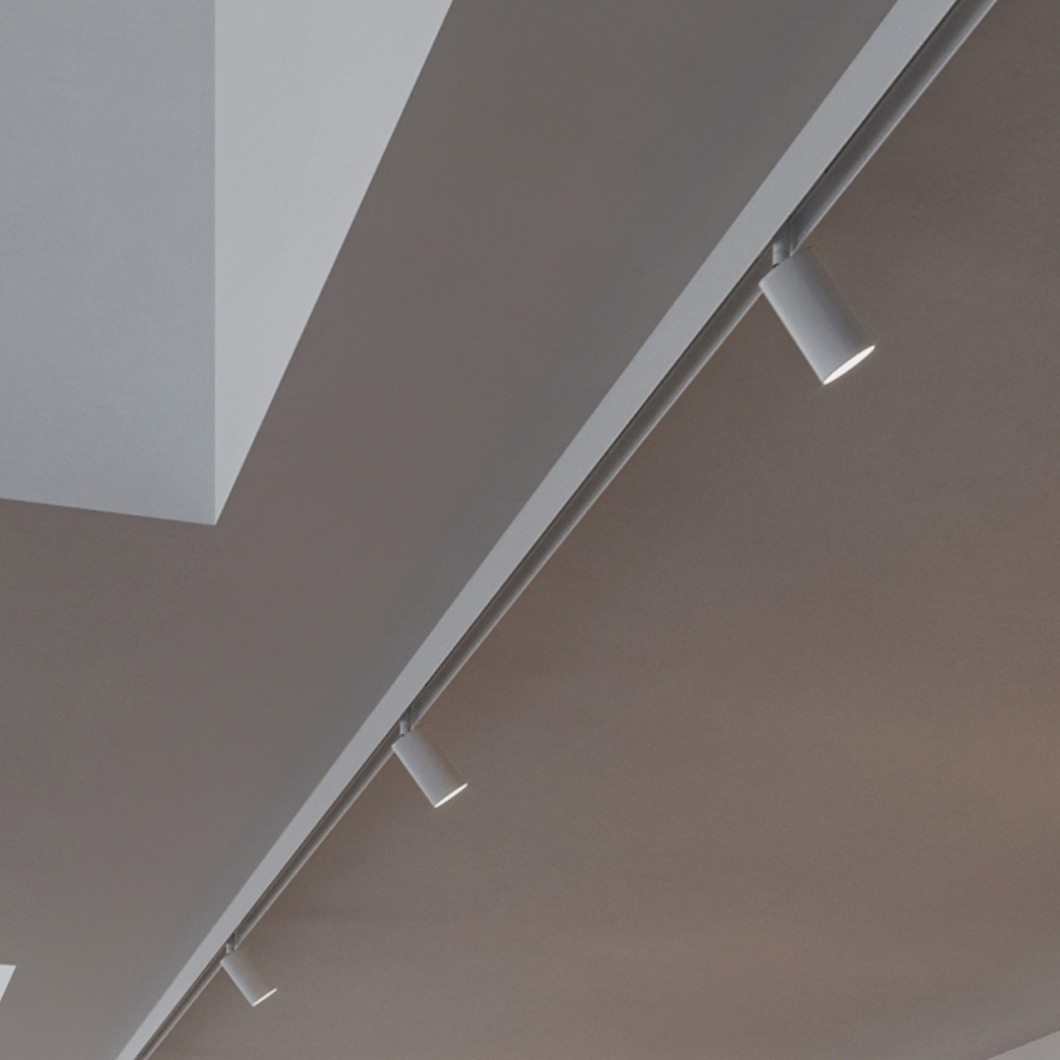

Dub Luce Fineline is an LED smart track system with unlimited possibilities thanks to the wide variety of track types, accessories and modules. With the ability to choose an architectural surface mounted, decorative suspended or modern recess track types, you can choose the finishing effect and whether it’s installed on the ceiling or wall. Finished in black or white, with a PC extrusion cover and standard end caps.

Can be wired to give either a continuous lighting effect, or sectioned off to allow control of light in different areas. A wide range of modules is available to use with the Fineline track, including: a stylish embossed glass and brass pendant, dotted series of LED’s, diffused linear LED and adjustable spotlights. Expand the dimensions of your composition by using horizontal and vertical joiners, whilst end caps and blind covers will produce a professional and well-finished result.

This is our modular components product page, where you have free rein to select individual parts of the track in order to customise and build your own unique track system. We have also collated pre-set compositions, our package product pages (see 'more like this' below), carefully chosen in-house by our lighting design experts.

The track length can be easily cut to suit individual projects on site.

Fineline modules can be dimmed via DALI or Casambi dimming drivers.

Wireless dimming from your smartphone

This track can also be used with the Casambi dimming units to give flexible control of the lighting in your home. Create the perfect mood for all situations wirelessly via Bluetooth 4.0 and save them as pre-set scenes on the Casambi app from your smartphone. Or control the scene at the touch of a button, either with Casambi wireless wall switches or with an off-the-shelf push dimmable on/off switch.  See the 'You May Also Need...' section below for the available options and technical information.

Specification

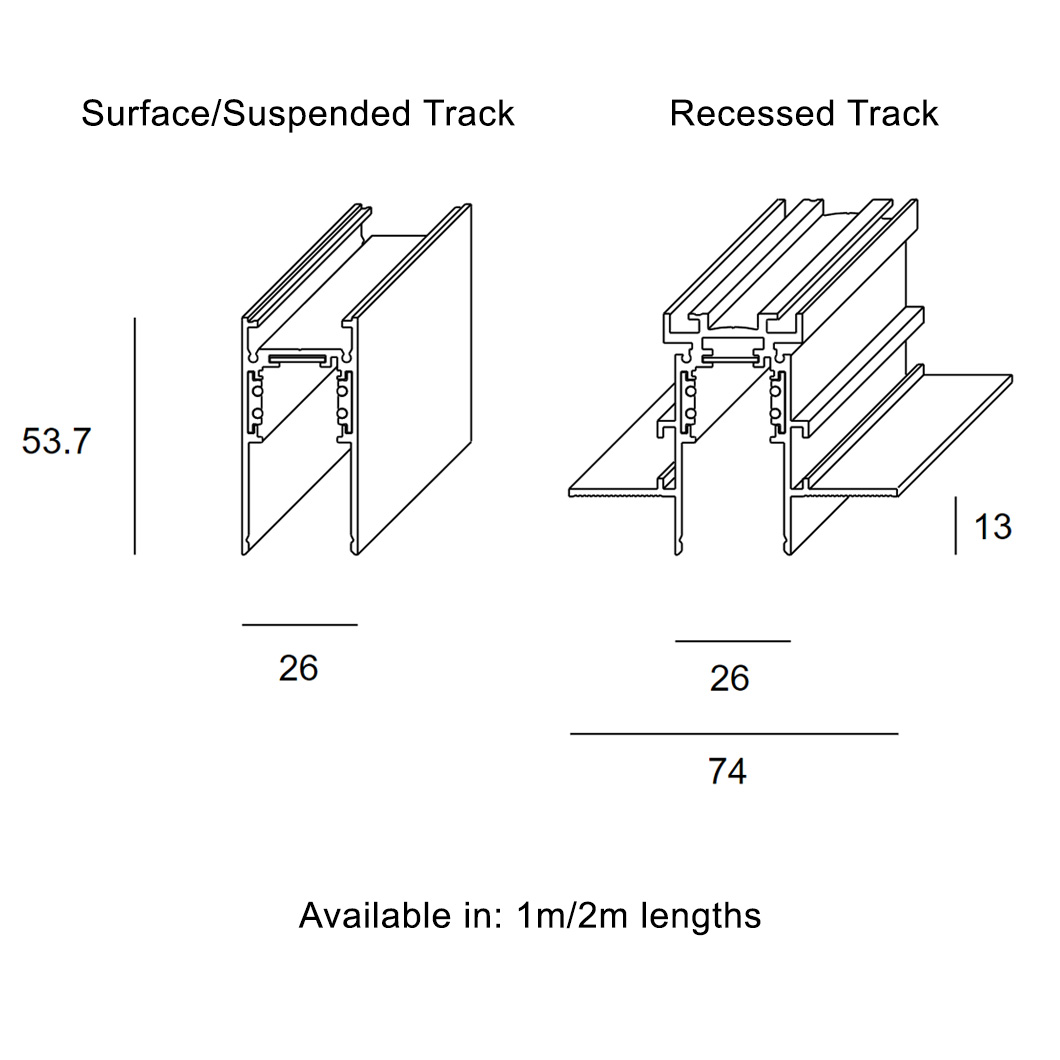

Track Components

Surface/Suspended track component:
H.53.7mm, W.26mm

Recessed track component:
H.54mm, W.26mm

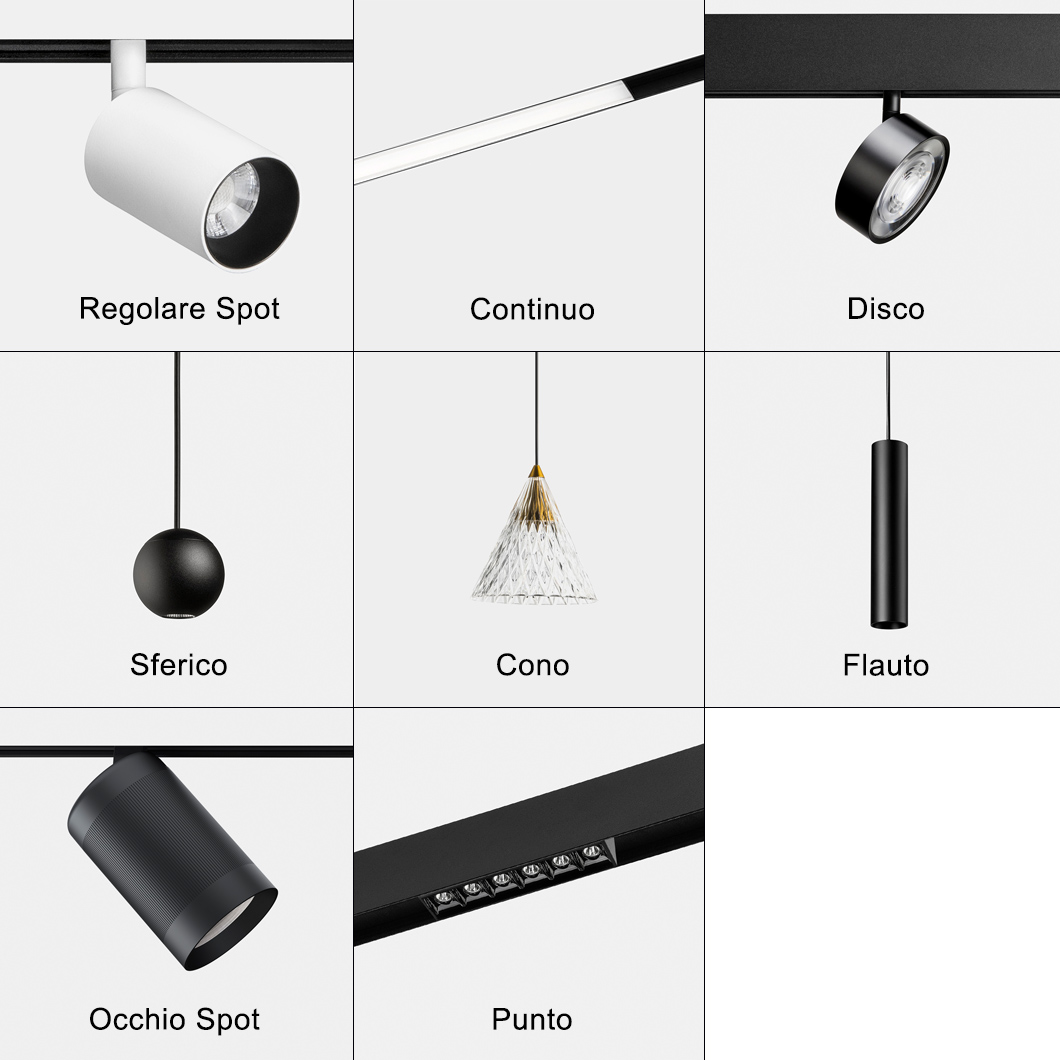

Modules

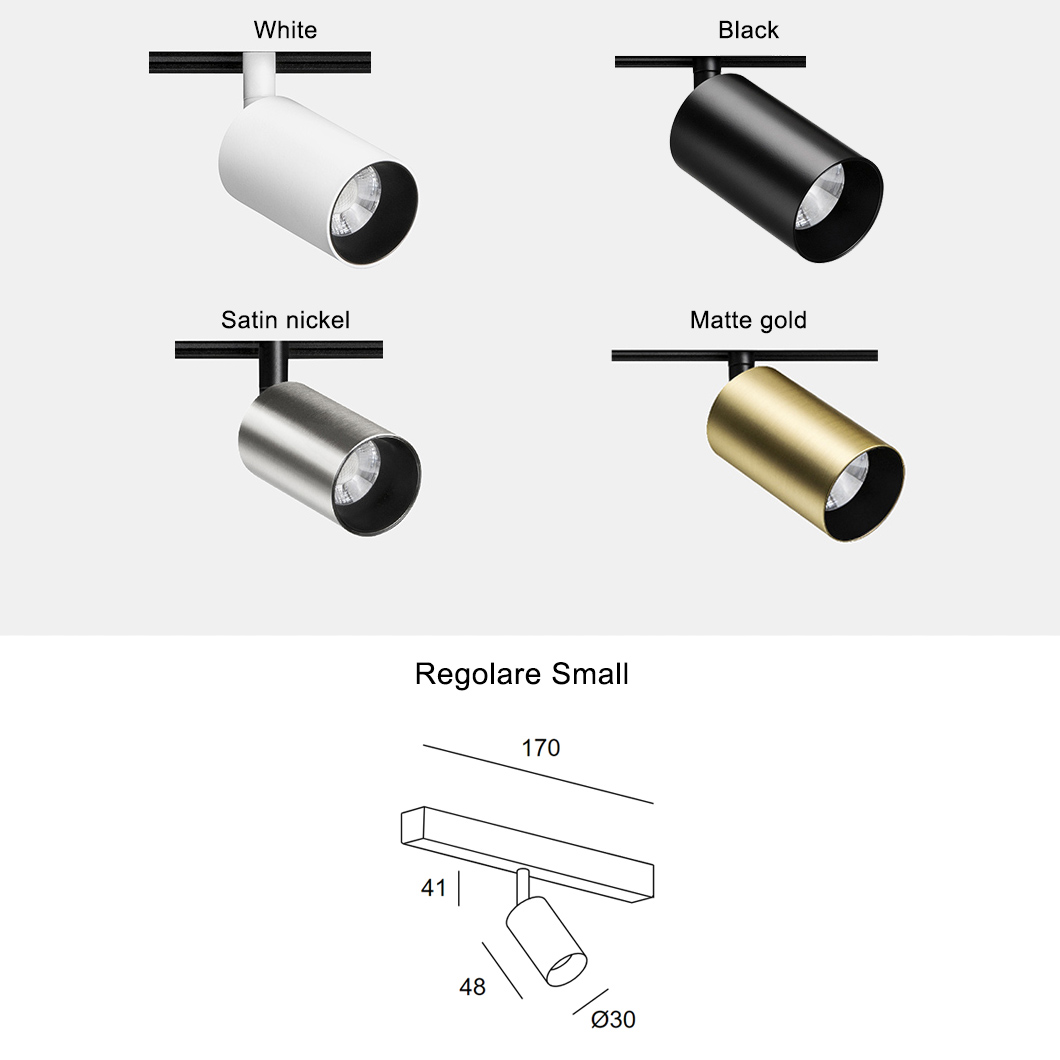

Regolare Small:
Dia.30mm, H.89mm
3.1W 260lm, 37 degree beam
On/Off | DALI dimmable | Casambi dimmable

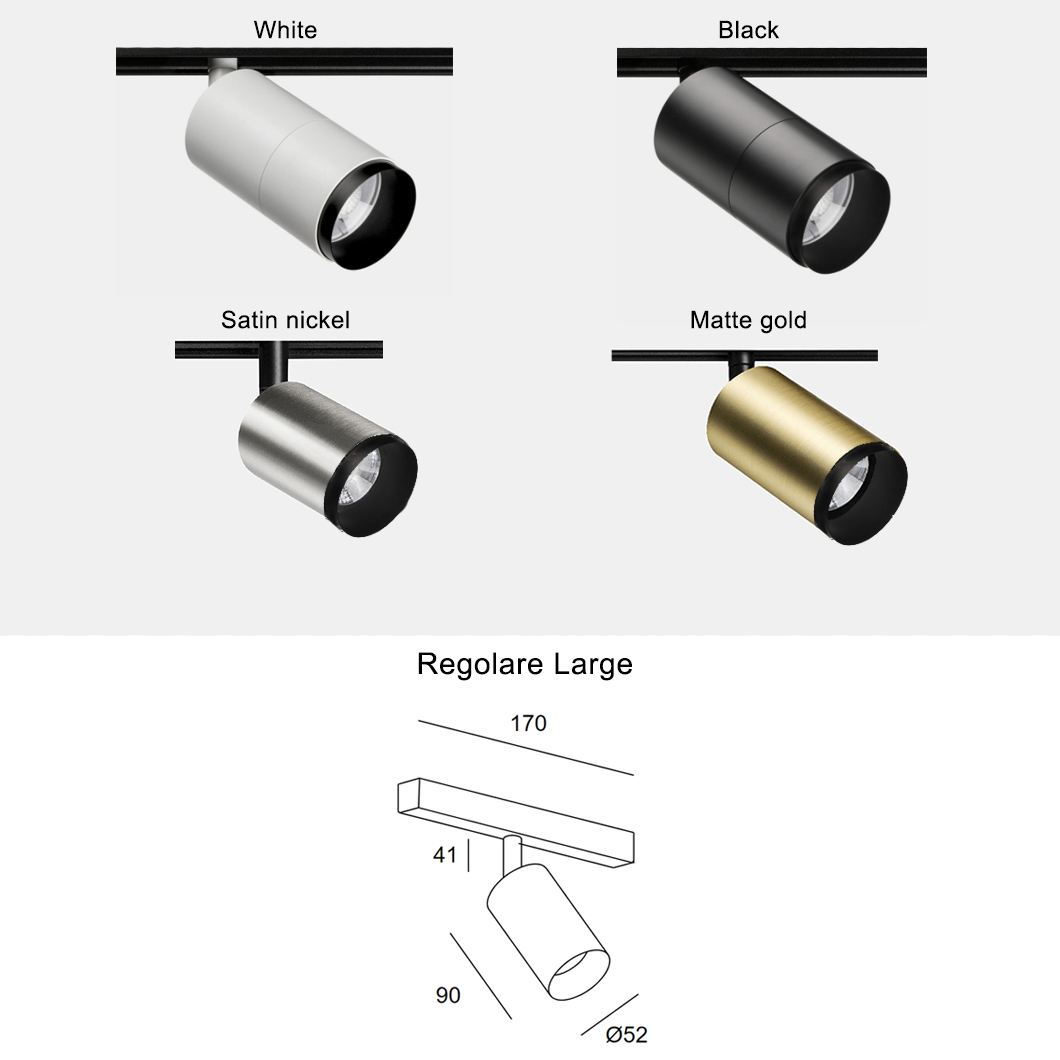

Regolare Large:
Dia.52mm, H.131mm
12.1W 853lm, 24 degree beam
On/Off | DALI dimmable | Casambi dimmable

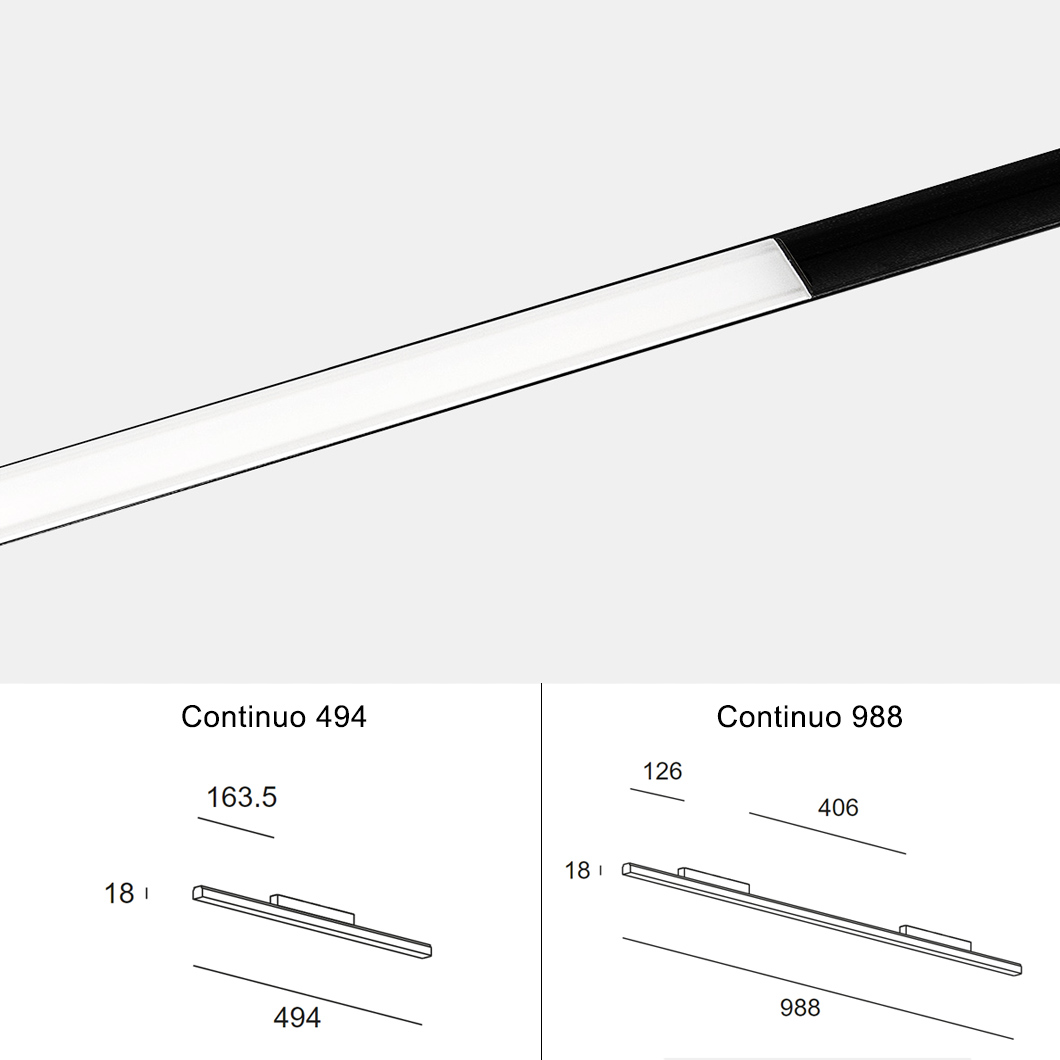

Continuo 494:
W.494mm, H.18mm
On/Off 6.5W | DALI dimmable 6W

Continuo 988:
W.988mm, H.18mm
On/Off 6.5W | DALI dimmable 6W

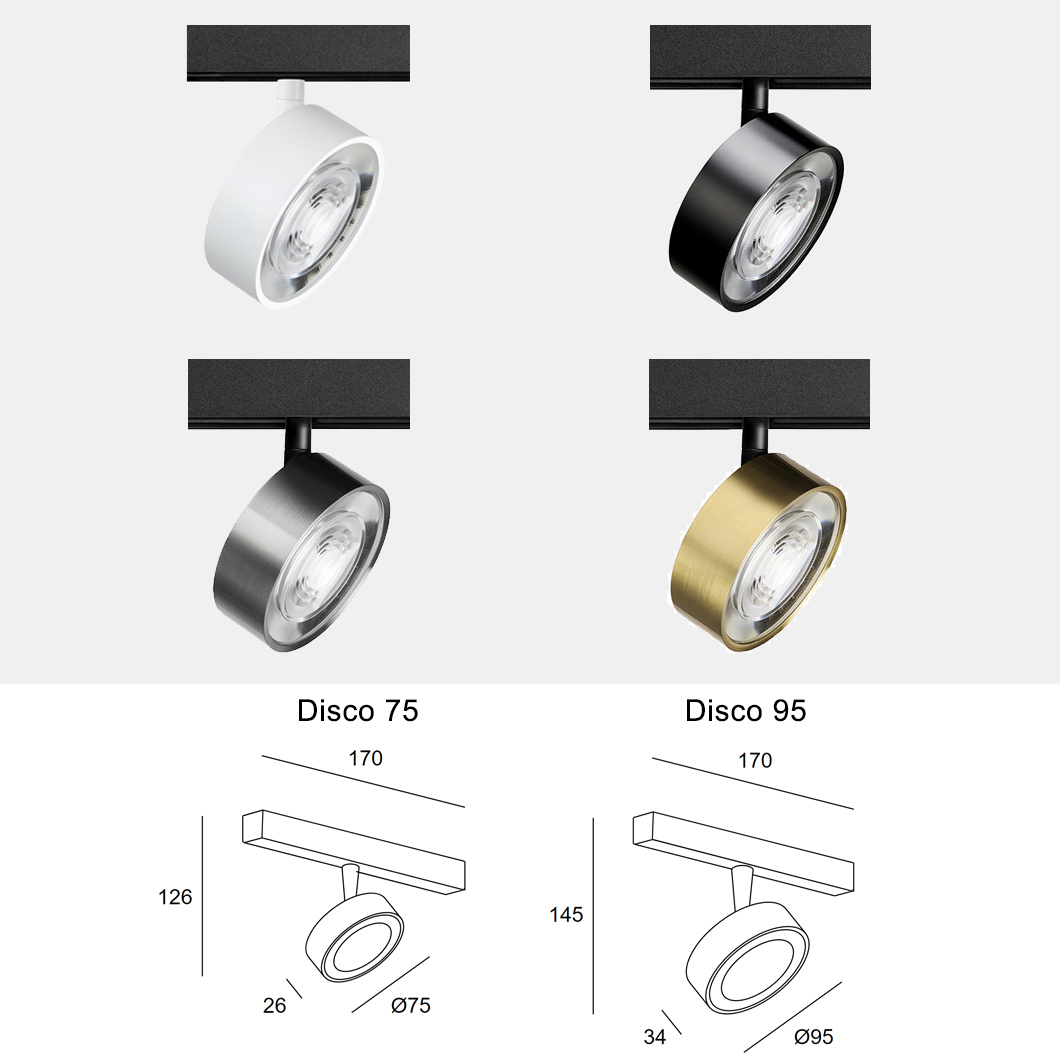

Disco 75:
Dia.75mm, H.126mm, 170mm
6.4W 458lm
On/Off | DALI dimmable | Casambi dimmable

Disco 95:
Dia.95mm, H.145mm, 170mm
12W 1172lm
On/Off | DALI dimmable | Casambi dimmable

Sferico:
Dia.50mm, W.170mm, Max drop 1000/2000mm
5W 329lm
On/Off

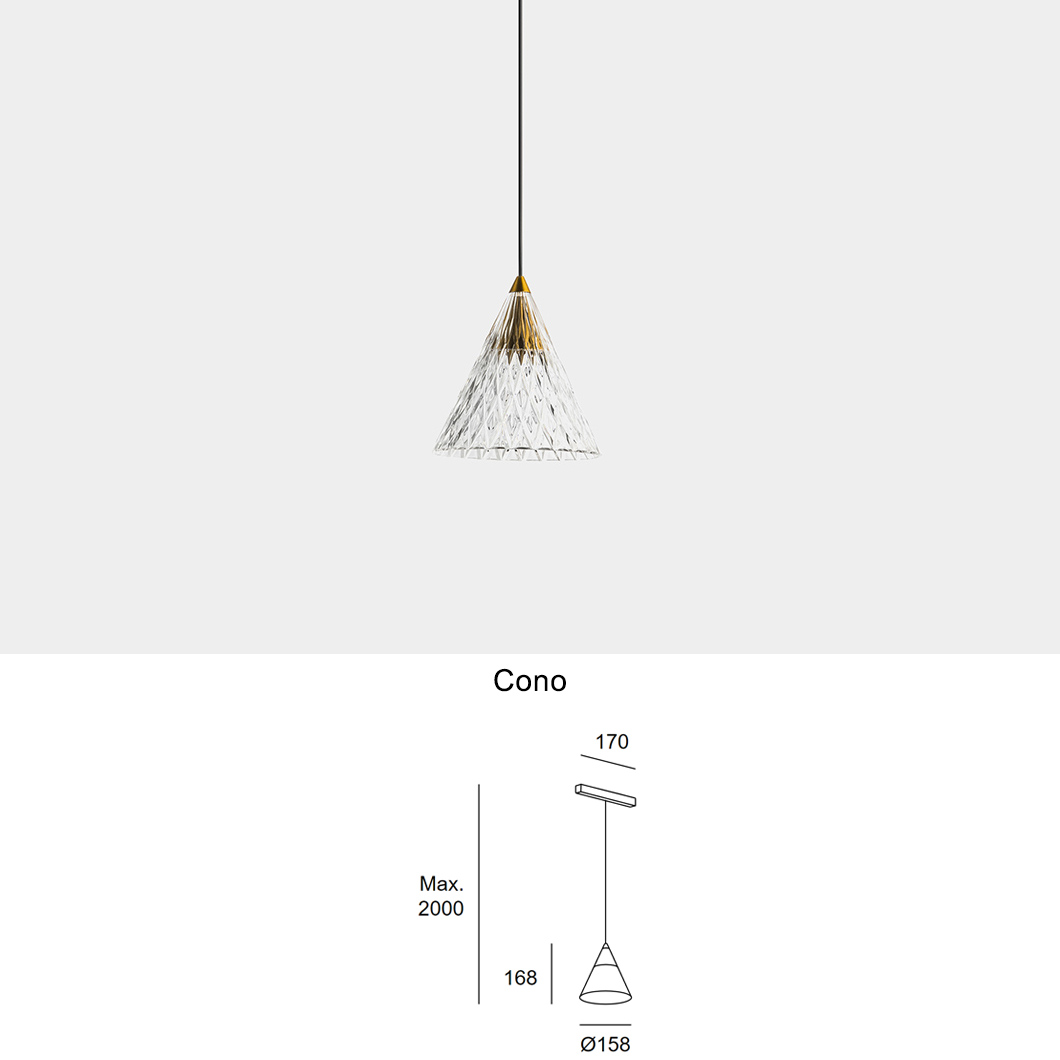

Cono:
Dia.158mm, H.168mm, W.170mm, Max drop 1000/2000mm
5W 269lm
On/Off

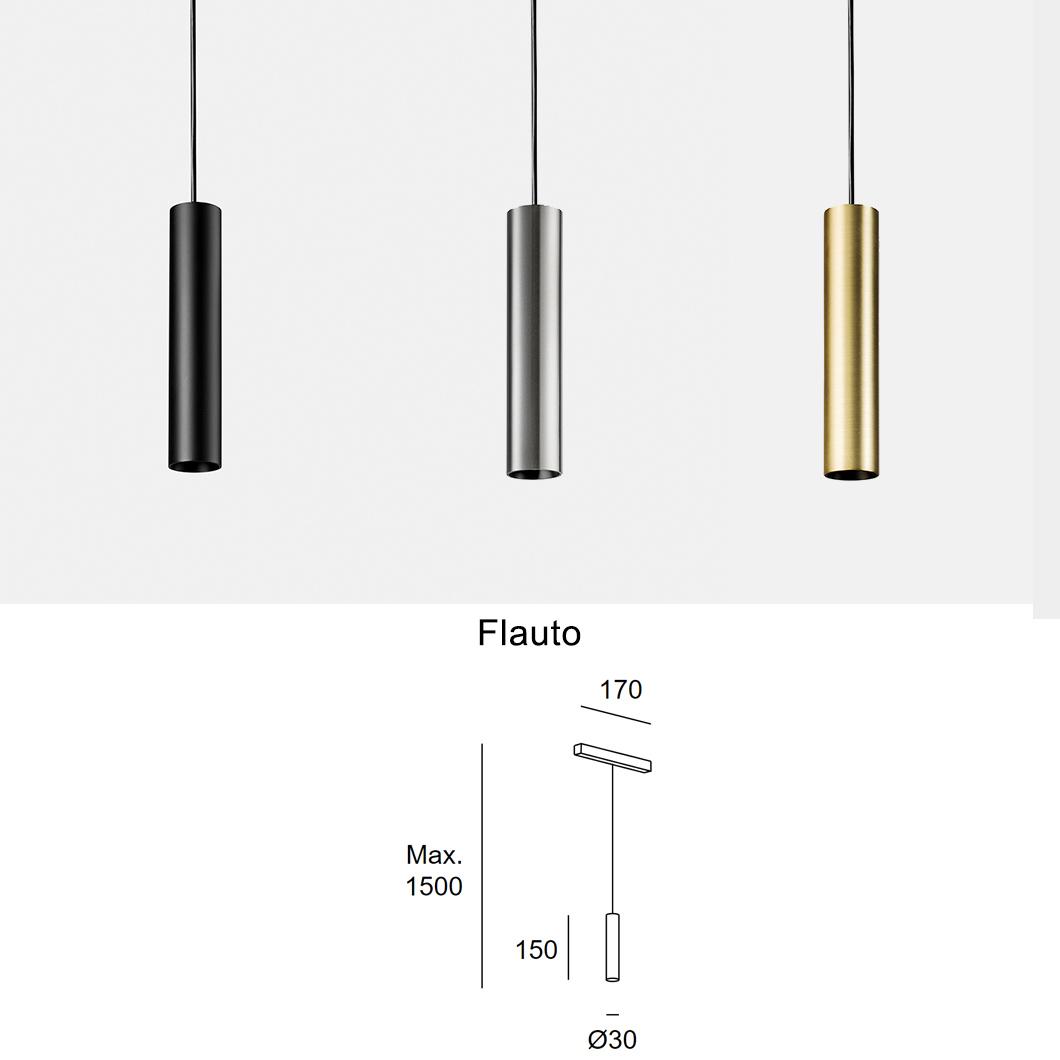

Flauto:
Dia.30mm, H.150mm, W.170mm, Max drop 1500mm
3.1W 269lm
On/Off | DALI dimmable | Casambi dimmable

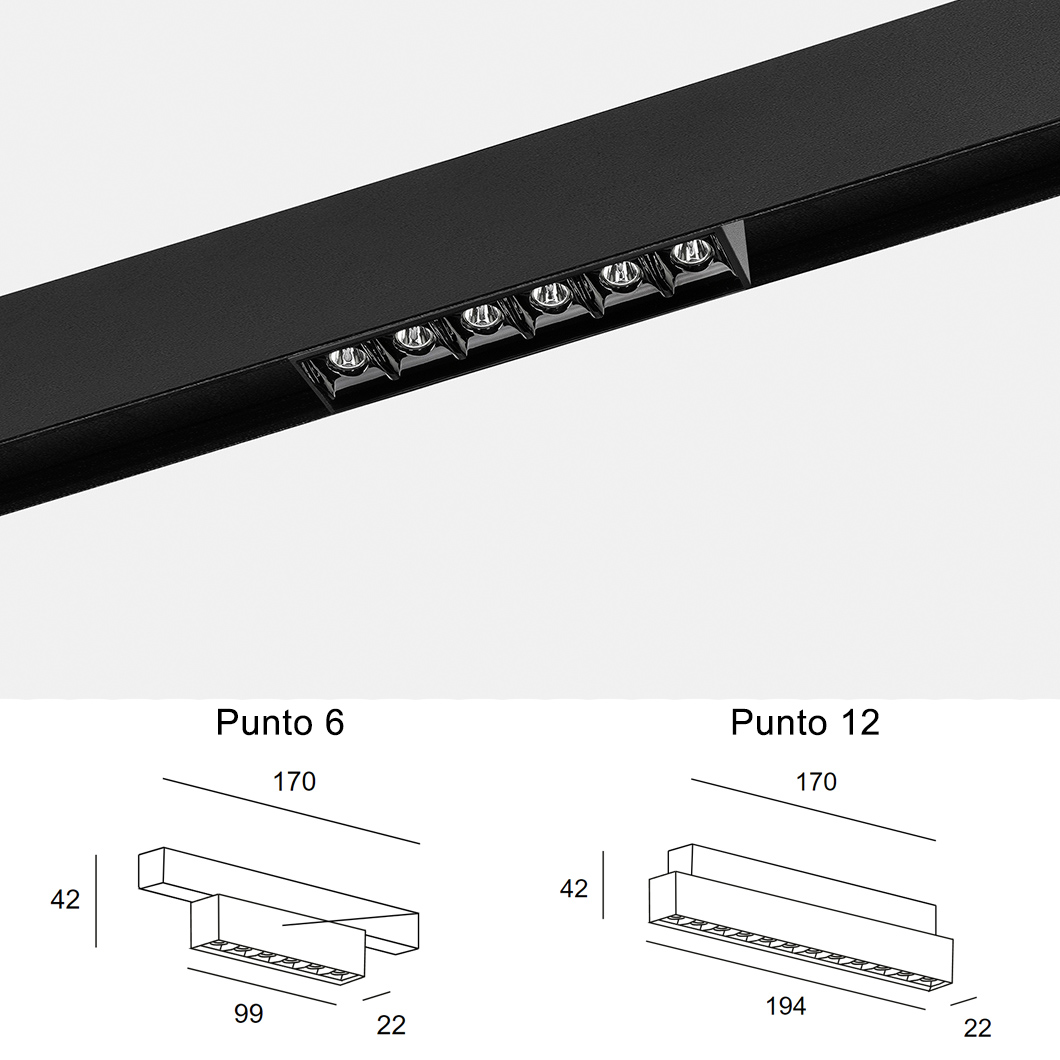

Punto 6:
W.170mm, H.42mm, D.22mm
6W 521lm
On/Off | DALI dimmable | Casambi dimmable

Punto 12:
W.194mm, H.42mm, D.22mm
6W 521lm
On/Off | DALI dimmable | Casambi dimmable

Dimensions

Downloads

• Fineline-track-assembly-instructions

Delivery and warranty

Delivery usually within 3-4 weeks
