DLD Atlas Baffle True Colour CRI98 LED IP44 Adjustable Recessed Downlight - Next Day Delivery

Description

Atlas Baffle LED adjustable recessed downlight features a removable light engine with black baffle and white bezel. The light engine can be simply accessed through a simple twist mechanism, which allows for easy maintenance. Adjustable by 20º and available with a beam angle of 15º, 38º or 60º, Atlas is a flexible fitting suitable for using as a focused spotlight / wall washer or to flood an area with light.

Luminaire in die-cast aluminium luminaire with steel housing with heat sink in forged aluminium for optimum heat dissipation. Bezel in black or white. Reflector in PC plastic. IP44 rated, suitable for installation in bathroom zones 1, 2 and 3. Complete with anti-glare frosted lens. Fixed version also available. Our downlights are fire rated as standard, and have lasted over 60 minutes in independent tests by Cambridge Fire Research. Fully dimmable, supporting 0-10V, TRIAC or DALI drivers - see dropdown options.

4000K colour temperature on demand - please contact for details.

Wireless dimming from your smartphone

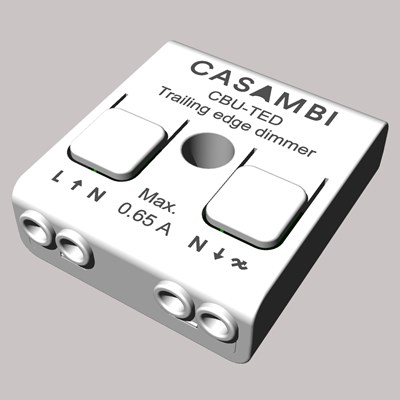

This luminaire can also be used with the Casambi dimming units to give flexible control of all the lights in your home. Create the perfect mood for all situations wirelessly via Bluetooth 4.0 and save them as pre-set scenes on the Casambi app from your smartphone. Or control the scene at the touch of a button, either with Casambi wireless wall switches or with an off-the-shelf push dimmable on/off switch.  See the 'You May Also Need...' section below for the available options and technical information.

Emergency lighting compatible

Emergency pack available as an extra. By utilising the optional emergency pack this luminaire can be used as a back-up emergency light fitting that complies with standard building safety regulations. In the event of a power outage this high performance fitting becomes a low lux emergency light, operating at around 10% of it’s original performance with a battery life of 3 hours. Please contact us for details.

Currently in stock:
All bezel finishes | all beam angles | 2700K & 3000K
Orders placed before midday are delivered next working day

Versions not in stock: delivery usually with 1-2 weeks

Specification

IP44

Wattage: 12.9W
Current: 350mA
Lumen: 1456lm (3000ºK)
Delivered lumens: 700lm (3000ºK)
Beam angle: 15º, 38º or 60º
Adjustable: 20º
Colour temperature: 2700ºK or 3000ºK
CRI 98

Cutout: Ø 68mm

Driver Options:

• Mains dimmable driver: Osram OT FIT 14W Phase Cut CC Driver
• 0-10V dimmable driver: EldoLED 0-10V ELD/SL0241A2-350
• DALI dimmable driver: L-Tech DALI-15-100-700-E1A1
• See datasheets in Downloads tab for further details

Fire Rated:

60+ minute FR rating
Independently tested by Cambridge Fire Service

Emergency pack (optional)

1 x per light engine
3hr battery life
Low lux emergency light output
Fully compliant with standard building safety regulations

Maintenance & Access

• LED fitting removable from the plaster-in housing post installation
• Driver fits through the cut-out hole diameter
• Driver can be housed remotely from the fitting (check maximum distance with us)

Dimensions

Product dimensions: H.87mm x Diameter.76mm

Cutout dimensions: Dia.68mm

Downloads

• DLD-Atlas-Baffle-IP44-Adj-dsheet-2.pdf
• Darklight-Bathroom-Zones67.pdf
• Osram OT FIT 14W Phase Cut Driver Data Sheet PDF
• Datasheet 0-10V Dim. Driver - EldoLED SL0241A2 PDF
• L Tech DALI 15 100 700 E1A1 Data Sheet
• ATLAS ADJUSTABLE BAFFLED V6 12D 2700K.ldt
• ATLAS ADJUSTABLE BAFFLED V6 24D 2700K.ldt
• ATLAS ADJUSTABLE BAFFLED V6 38D 2700K.ldt
• ATLAS ADJUSTABLE BAFFLED V6 60D 2700K.ldt
• ATLAS ADJUSTABLE BAFFLED V6 38D 2700K
• ATLAS ADJUSTABLE BAFFLED V6 60D 2700K
• Atlas-Fire-Test-Report
