Description

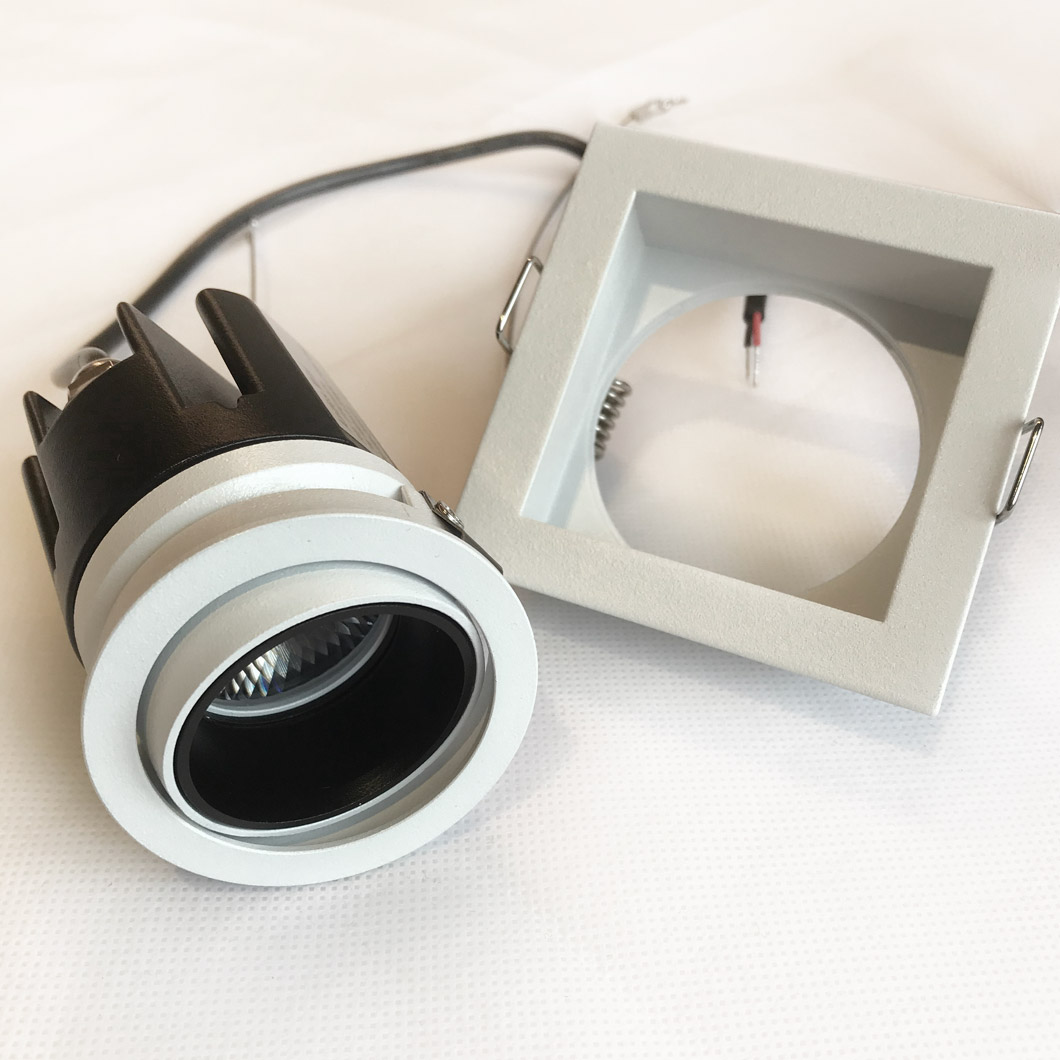

With a glare-reducing deep black baffle, the DLD Andes 1-S Mini adjustable recessed downlight displays colours with amazing precision thanks to our True Colour CRI98 LED chip. With spring loaded clips, it’s easy to pop the LED light engine in and out, allowing for simple maintenance after installation. The Andes range has an IP54 rating, making it a suitable directional downlight for standard rooms or zone 2 of bathrooms. The 24º adjustable tilt and 355º rotation mean Andes can be used to highlight specific walls or architectural features.

Beam angle is 36 degree as standard (for other beam angles, please enquire for availability). Die-cast aluminium luminaire with steel housing. Heat sink in forged aluminium for optimum heat dissipation. Reflector in plastic PC. In white with black baffle. Our downlights are fire rated as standard, and have lasted over 60 minutes in independent tests by Cambridge Fire Research. The Andes range is fully dimmable, supporting 0-10V, TRIAC or DALI drivers.

4000K colour temperature on demand - please contact for details.

Wireless dimming from your smartphone

This luminaire can also be used with the Casambi dimming units to give flexible control of all the lights in your home. Create the perfect mood for all situations wirelessly via Bluetooth 4.0 and save them as pre-set scenes on the Casambi app from your smartphone. Or control the scene at the touch of a button, either with Casambi wireless wall switches or with an off-the-shelf push dimmable on/off switch.  See the 'You May Also Need...' section below for the available options and technical information.

Emergency lighting compatible

Emergency pack available as an extra. By utilising the optional emergency pack this luminaire can be used as a back-up emergency light fitting that complies with standard building safety regulations. In the event of a power outage this high performance fitting becomes a low lux emergency light, operating at around 10% of it’s original performance with a battery life of 3 hours. Please contact us for details.

Currently in stock:
Orders placed before midday are delivered next working day

Available on request:
Body in black & baffle in white or gold
Please contact us for the lead time on these finishes



Specification

IP54 - suitable for bathroom zone 2
Wattage: 7W
Current: 180mA
Beam angle: 36º (15º & 24º available on request)
Adjustable tilt: 24º
Adjustable rotation: 355º
True Colour CRI 98

Beam Angle | Colour Temperature | LM/W | Delivered Lumens:
15d | 2700ºK | 36lm | 288lm
36d | 2700ºK | 50lm | 400lm
15d | 3000ºK | 38lm | 304lm
36d | 3000ºK | 52lm | 416lm
15d | 4000ºK |
36d | 4000ºK |

Cut out: 70x70mm

Lamp type: Integral LED 7W, 180mA, CRI98 (true colour)

Dimensions

Product dimensions: W.78mm x D.78mm x H.91mm

Cutout dimensions: W.70mm x H.70mm

Downloads

• DLD Andes Mini 1-S Trim Adjustable Datasheet
• DLD-Contract-Andes-Mini-Install-Instructions
• FIRE TEST REPORT
• L Tech SE 12 100 400 W1D Data Sheet
