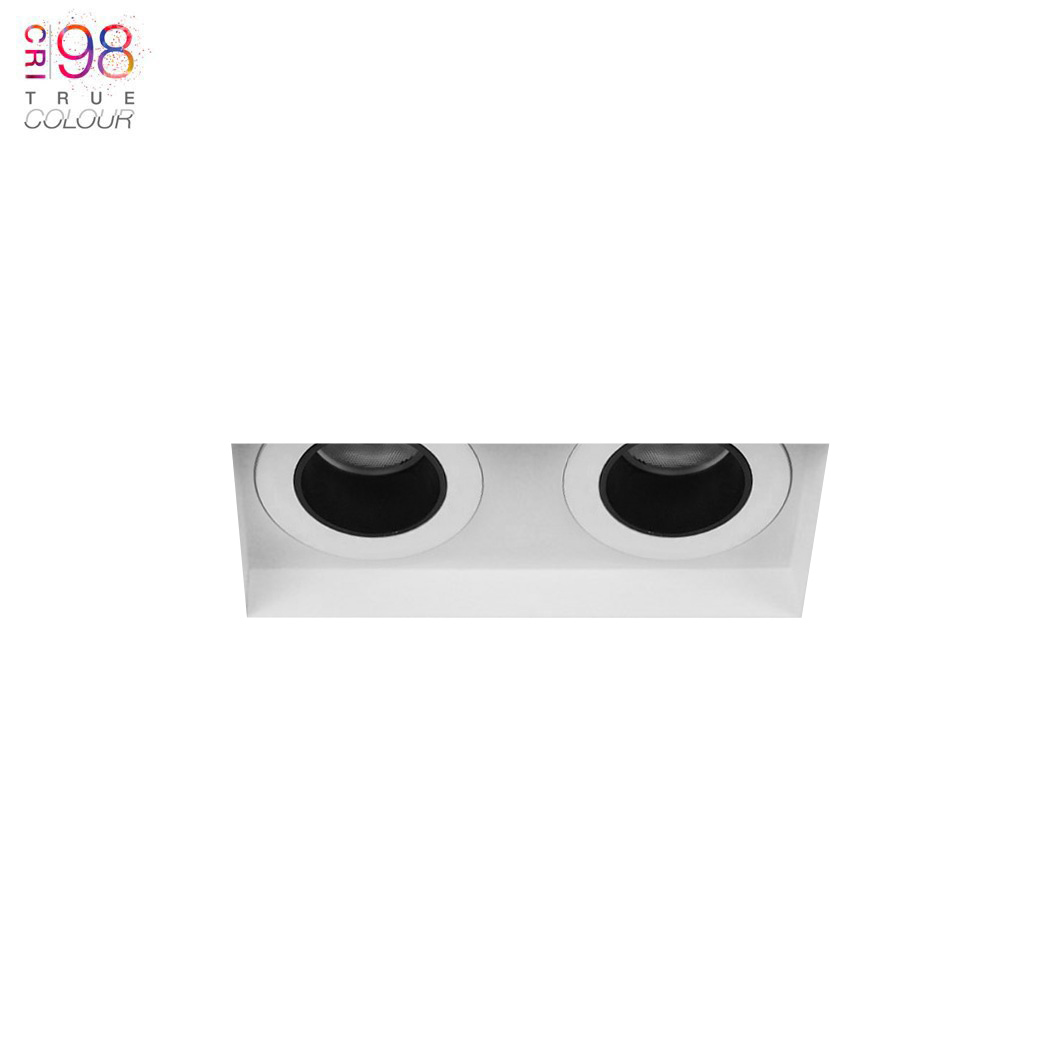

DLD Andes 2 True Colour CRI98 LED IP65 Fixed Plaster In Downlight - Next Day Delivery

Description

The DLD Andes 2 fixed plaster-in twin downlight has a bathroom-friendly IP65 rating making it the perfect directional plaster-in light fitting for bathroom zone 1 installation. Equipped with glare reducing deep black baffles, the Andes downlight collection boasts our True Colour CRI98 LED chip which renders colour with amazing accuracy.

The rectangular frame is fixed directly into the ceiling before plastering and decorating. The result is a seamless finish with the surrounding architecture and no risk of damaging the LED fitting during the install. It's easy to take the LED light engine in and out of the frame, keeping maintenance access simple. Pick from 15º or 36º beam angles for a narrower or wider spread of light depending what effect is needed. Die-cast aluminium luminaire with steel housing. Heat sink in forged aluminium for optimum heat dissipation. Reflector in plastic PC. Bezel ring in white or black finish with an inner black baffle. Our downlights are fire rated as standard, and have lasted over 60 minutes in independent tests by Cambridge Fire Research. The Andes range is fully dimmable, supporting 0-10V, TRIAC or DALI drivers.

4000K colour temperature on demand - please contact for details.

Wireless dimming from your smartphone

This luminaire can also be used with the Casambi dimming units to give flexible control of all the lights in your home. Create the perfect mood for all situations wirelessly via Bluetooth 4.0 and save them as pre-set scenes on the Casambi app from your smartphone. Or control the scene at the touch of a button, either with Casambi wireless wall switches or with an off-the-shelf push dimmable on/off switch.  See the 'You May Also Need...' section below for the available options and technical information.

Emergency lighting compatible

Emergency pack available as an extra. By utilising the optional emergency pack this luminaire can be used as a back-up emergency light fitting that complies with standard building safety regulations. In the event of a power outage this high performance fitting becomes a low lux emergency light, operating at around 10% of it’s original performance with a battery life of 3 hours. Please contact us for details.

Currently in stock:
White with black baffle
Orders placed before midday are delivered next working day

Available on request:
Body in black
Baffle in white or gold
Please contact us for the lead time on these finishes

Specification

IP65 - suitable for bathroom zone 1
Wattage: 13W (x2)
Current: 350mA
Beam angle: 15º | 36º
True Colour CRI 98

Colour Temperature:
2700ºK | 3000ºK | 4000ºK

Delivered Lumens:
Dependent on beam angle and colour temp - see datasheet in Downloads tab

Plaster-in frame: 214mm x 128mm

Driver Options:

• Mains dimmable driver: 2x Osram OT FIT 14W Phase Cut CC Driver
• 0-10V dimmable driver: 2x EldoLED 0-10V ELD/SL0241A2-350
• DALI dimmable driver: 2x L-Tech DALI-15-100-700-E1A1
• See datasheets in Downloads tab for further details

Fire Rated:

60+ minute FR rating
Independently tested by Cambridge Fire Service

Emergency pack (optional)

1 x per light engine
3hr battery life
Low lux emergency light output
Fully compliant with standard building safety regulations

Maintenance & Access

• LED fitting removable from the plaster-in housing post installation
• Driver fits through the cut-out hole diameter
• Driver can be housed remotely from the fitting (check maximum distance with us)

Dimensions

Product dimensions: W.214mm x D.128mm x H.105mm

Cutout dimensions: W.168mm x H.80mm

Downloads

• DLD Andes 2 Plaster-in Fixed Datasheet PDF
• DLD Andes Installation Instructions PDF
• Osram OT FIT 14W Phase Cut Driver Data Sheet PDF
• Datasheet 0-10V Dim. Driver - EldoLED SL0241A2 PDF
• L Tech DALI 15 100 700 E1A1 Data Sheet
• Lighting File 12D 2700K IES
• Lighting File 12D 2700K LDT
• Lighting File 24D 2700K IES
• Lighting File 24D 2700K LDT
• Lighting File 36D 2700K IES
• Lighting File 36D 2700K LDT
• Lighting File 12D 3000K IES
• Lighting File 12D 3000K LDT
• Lighting File 24D 3000K IES
• Lighting File 24D 3000K LDT
• Lighting File 36D 3000K IES
• Lighting File 36D 3000K LDT
• FIRE TEST REPORT
