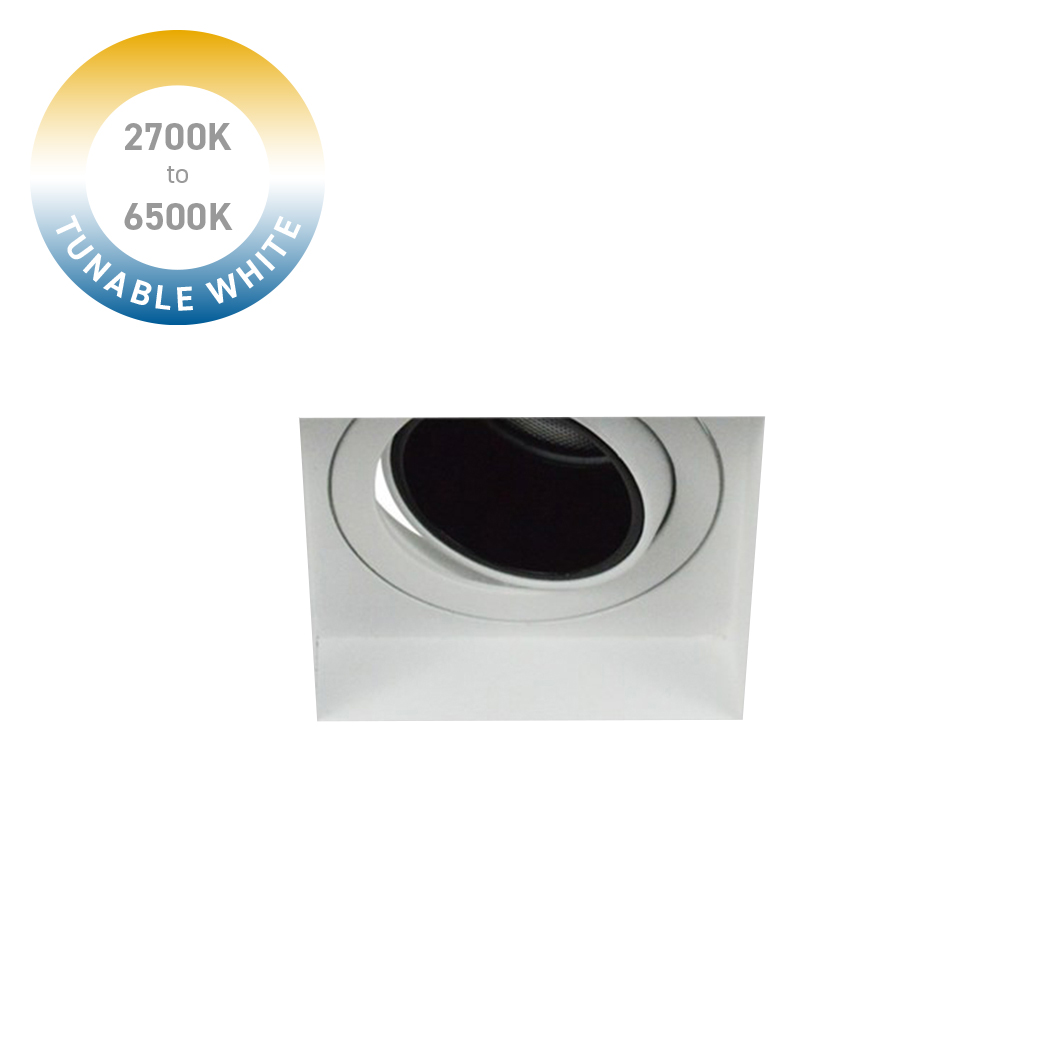

DLD Andes 1-S Tunable White 2700K-6500K LED Adjustable Plaster In Downlight

Manufacturer: DLD Architectural

£109

One tree planted
Trustpilot Rating
Free UK delivery
Next Day Delivery
365 Day returns

View product details

Description

Our Andes 1-S plaster-in downlight has just got an upgrade - now available in tunable white. Featuring the same design with a deep black baffle to reduce glare. And the same versatility with a 24º adjustable tilt and 355º rotation. And the same bathroom-friendly IP54 rating. Now with added control over the colour temperature, switch from a warm 2700K white through to a cool 6500K white, and any value in-between and the touch of a button.

About tunable white LED

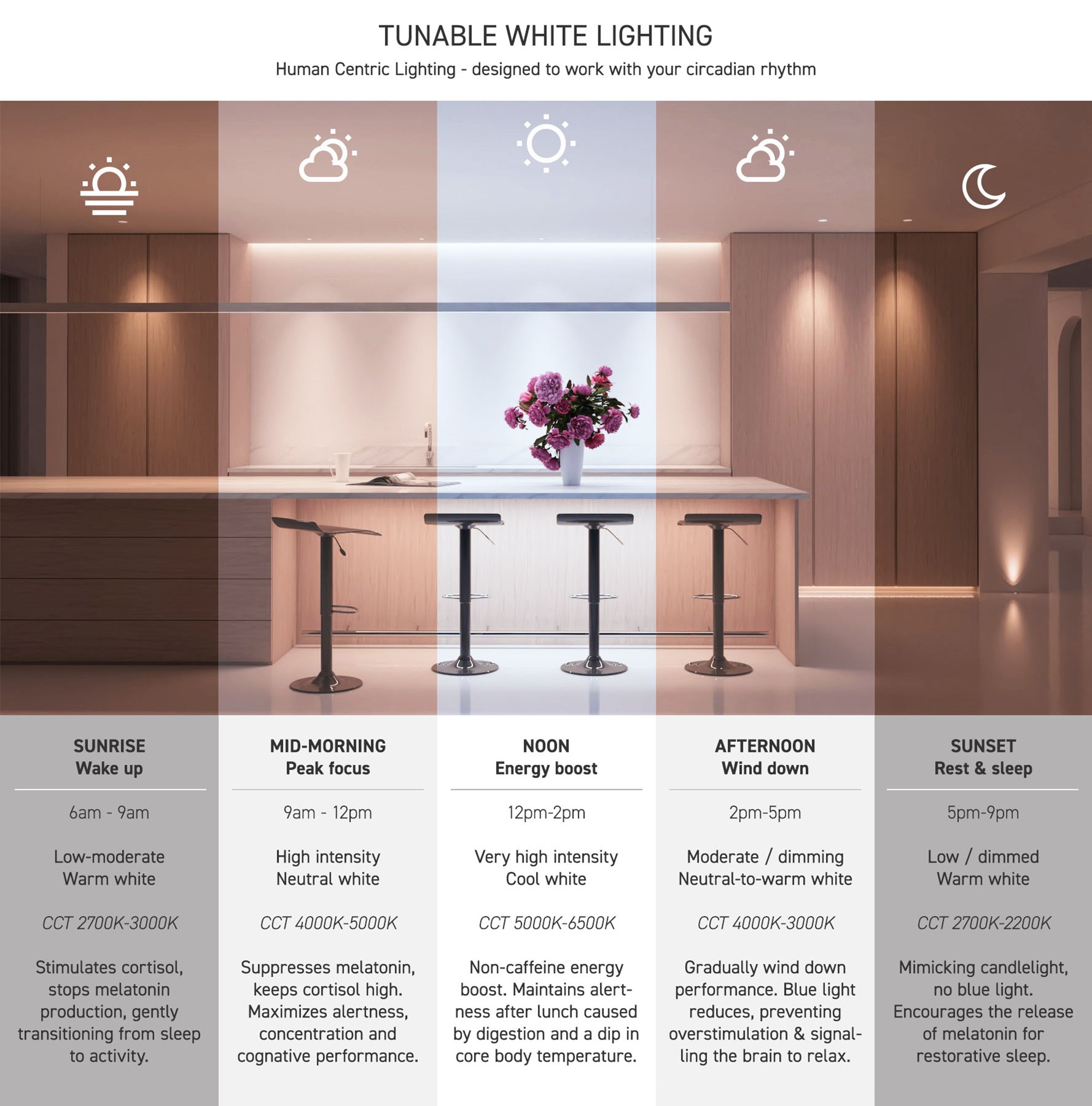

Also known as variable white, dim-to-white, or custom temperature lighting, tunable white LEDs allow the light colour to be adjusted - usually from warm 2700K white, to a neutral 4000K white, through to a cool 6500K white. A flexible lighting solution, easily switch from warm to cool depending on whether you need a calm ambiance or specific lighting for a task.

Full control with NFC driver
Our range of tunable white downlights work best with the L-Tech NFC programmable DALI driver - see dropdown. No DALI master is needed, each NFC driver can be synced to one network and controlled via the app, allowing for the creation of light groups, scenes, fade timer, dimming, colour temperature. This driver is the winner of the 2022 Alighting award, and is the only indoor smart driver to win. Find out more in the videos below or view the data sheet.

Seamless installation
The frame is fixed directly into the ceiling, which is then plastered and decorated to produce a perfectly seamless finish with zero risk of damaging the LED fitting. It is simple to pop the LED light engine in and out of the frame, which allows for easy maintenance post installation. Available with a beam angle of 15º or 36º, allowing for a narrower or wider spread of light depending on the requirements. Made from die-cast aluminium with steel housing. Heat sink in forged aluminium for optimum heat dissipation. Reflector in plastic PC. Bezel ring in white or black finish with an inner black baffle. Our downlights are fire rated as standard, and have lasted over 60 minutes in independent tests by Cambridge Fire Research.

Wireless dimming from your smartphone
This luminaire can also be used with the Casambi dimming units to give flexible control of all the lights in your home. Create the perfect mood for all situations wirelessly via Bluetooth 4.0 and save them as pre-set scenes on the Casambi app from your smartphone. Or control the scene at the touch of a button, either with Casambi wireless wall switches or with an off-the-shelf push dimmable on/off switch.  See the 'You May Also Need...' section below for the available options and technical information.

Available on request
Body in black
Baffle in white or gold
Please contact us for the lead time on these finishes

Specification

IP54 - suitable for bathroom zone 2
Wattage: 14.5W
Current: 350mA
Beam angle: 15º | 36º
Adjustable tilt: 24º
Adjustable rotation: 355º

Tunable White LED Colour Temperature:
2700ºK - 6500ºK

Delivered lumens (based on 36º beam angle)
2700ºK: 750lm
6500ºK: 900lm

Plaster-in frame: Ø124mm

Driver (required):
L-Tech NFC Programmable DALI
(
SE-20-100-700-W2D)
Dimensions: W127mm D230mm H40mm
Min cutout hole size: Ø48mm
View Data Sheet PDF

Fire Rated:

60+ minute FR rating
Independently tested by Cambridge Fire Service

Maintenance & Access

  • LED fitting removable from the plaster-in housing post installation
  • Driver fits through the cut-out hole diameter
Dimensions

Product dimensions: W.128mm x D.128mm x H.105mm

Cutout dimensions: W.80mm x H.80mm
