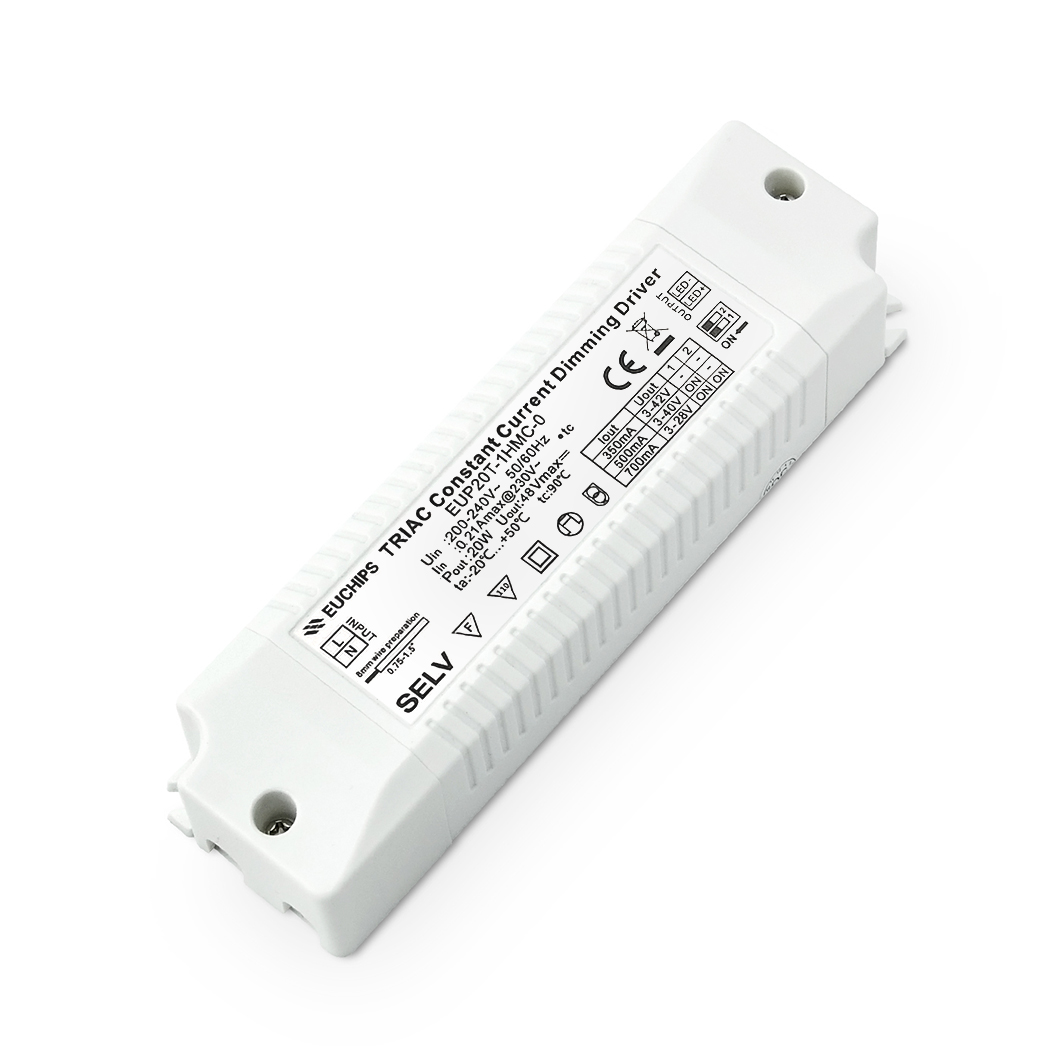

EUP20T-1HMC-0 Constant Current 20W 350mA-700mA Multi-Current Mains Dimming Driver

Description

EUP20T-1HMC-0 is a constant current mode output LED driver. The output current can be easily set via the DIP dial switch to 350mA, 400mA, 450mA, 500mA, 550mA, 600mA, 650mA or 700mA. The driver supports leading edge (TRIAC) and trailing edge (ELV) dimmers. For the current-voltage-power information, please see the specification tab below.

Delivery is 2-3 working days.

Specification

IP20
220VAC-240VAC
Leading edge (TRIAC) and Trailing edge (ELV) dimming

Current/Voltage/Power:
350mA/9-40VDC/14W
400mA/9-40VDC/16W
450mA/9-40VDC/18W
500mA/9-40VDC/20W
550mA/9-36VDC/19.8W
600mA/9-33VDC/19.8W
650mA/9-30VDC/19.5W
700mA/9-28VDC/19.6W

Dimensions

Product dimensions: W.150mm x D.29mm x H.43mm

Downloads

• EUP20T datasheet
