- Description
-

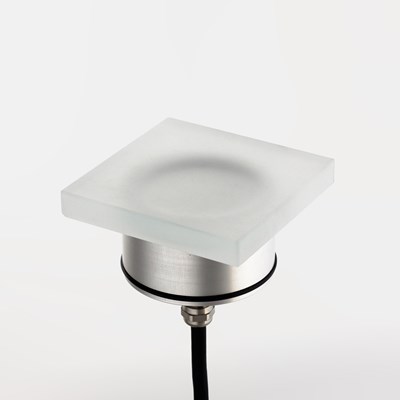

At just under 5cm square, the Ganimede S by LED Luce E Dintorni (LLD) is a small minimal outdoor LED glass path light that recesses flush to the ground. Omitting 120° light, Ganimede S is a fixed optic path light that is suitable for recessed installation into the floor or wall, perfect for lighting exterior pathways, cobbled paths, steps and gardens due to its IP67 rating. The LLD Ganimede S Glass Path Light is can take the weight of a person, making it perfect as a walk-over lighting solution.
The 24VDC constant voltage Ganimede path light uses an energy efficient 2W LED light source that produces over 170 lumens. Available with a choice of 3000K or 4000K light colour temperatures. A sandblasted tempered glass diffuser sits on top of an anticorodal anodised aluminium body. Supplied with a 500mm cable with WP System connection. The optional housing box should be used for installing Ganimede into the ground, allowing 30cm gravel drainage. 24VDC constant voltage driver (wired parallel) required. This fitting is compatible with non dim, TRIAC dim, push dim, 1-10V dim and DALI dim drivers.
Larger version available - see below. View the full LLD Light catalogue in the downloads tab.
Delivery usually within 2 weeks
- Specification
-
IP67
2W
Class III
500mm cable with Water Proof connection system
Flush to ground
Beam angle: 120°
Cutout: Ø45mm
Weight: 0.18kg
Walk-over: up to 500kg
30cm gravel drainage
24VDC constant voltage version - wired parallel
24VDC driver required
Push, 1-10V and DALI dimmable with compatible driver (not included)
CCT | Lumens
3000°K | 170lm
4000°K | 180lm
Optional housing box (CAQ41): 45 x 45mm D.115mm
Lamp type: LED 2W Lifespan 50,000hrs
- Dimensions
-
Product dimensions: W.45mm x D.45mm x H.55mm
- Downloads
-
- Delivery and warranty
-
Delivery usually within 2-3 weeks
Supplied with a 2 year warranty covering manufacturing and/or design defects. The warranty does not cover:
- damage caused by transport
- the use of products in unsuitable environmental conditions
- non-standard product use or stress including under/over voltage
- damage caused by negligence or lack of maintenance
- damage caused by the use of power supplies not provided or indicated by LLD Light
- repair attempts or tampering performed by unauthorised staff
- About the manufacturer
-
With a heritage in nautical lighting, it's no surprise that LLD Light have evolved to become a prominent manufacturer of contemporary architectural indoor and outdoor lighting. Passionate about continual research and innovation, LLD combine innovative Italian design with the highest quality locally sourced materials. Each LLD light fitting, electronics and all, is produced in Vicenza - a true example of Made In Italy.
We're especially excited about their range of contemporary IP rated outdoor lighting - from adjustable spike spots and bollards, to wall lights and IP68 submersible underwater lights. Most are available in sleek and modern stainless steel, black or white, as well as COR-TEN stable rusted or in green to truly camouflage with the outdoor environment.
