LLD Cupido Outdoor IP65 LED Low Level Step Light

Description

Suitable for both indoor and outdoor installation, the LLD Cupido LED recessed step light is sleek and modern in appearance with rounded edges softening the profile. With an IP65 rating, the Cupido LED Low Level Light is perfect for lighting steps, paths and corridors with a minimal and contemporary light fitting.

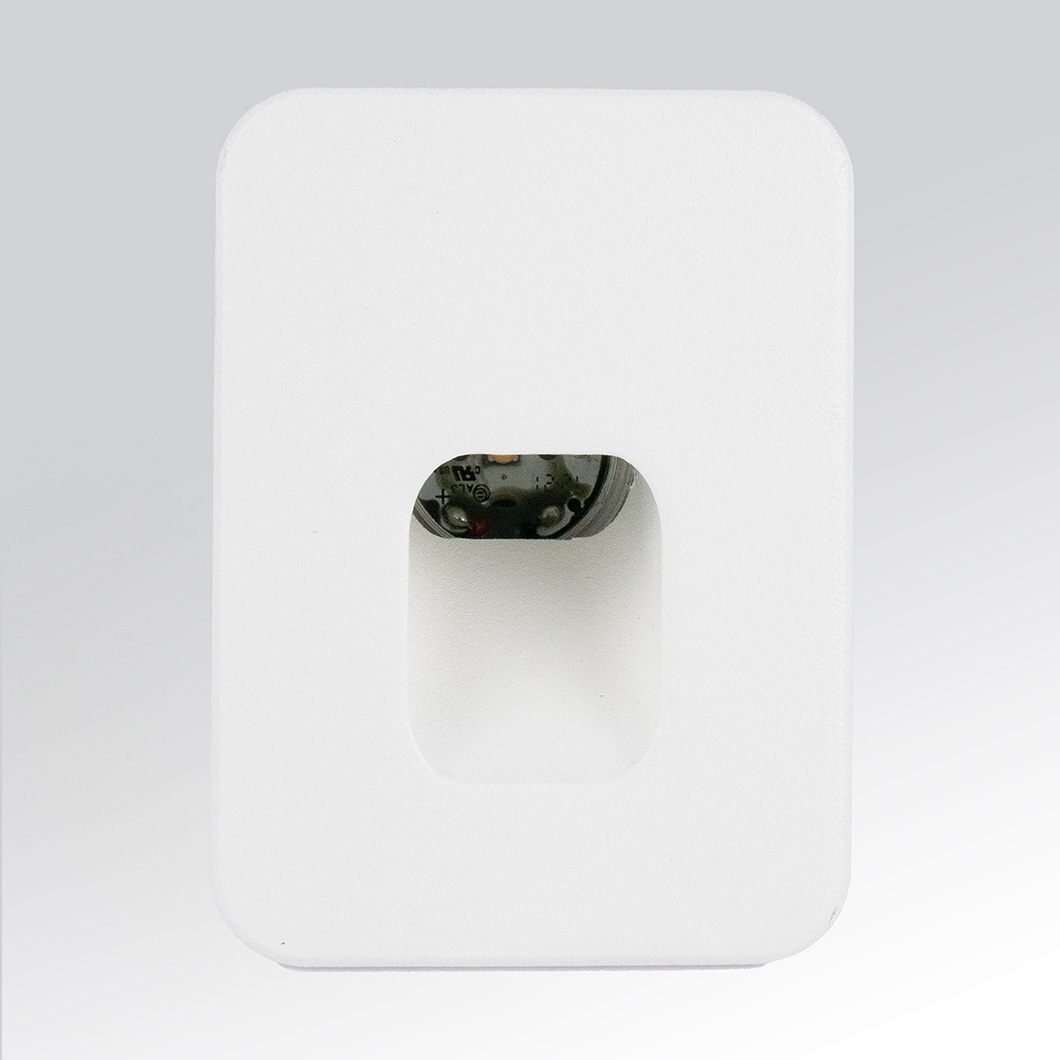

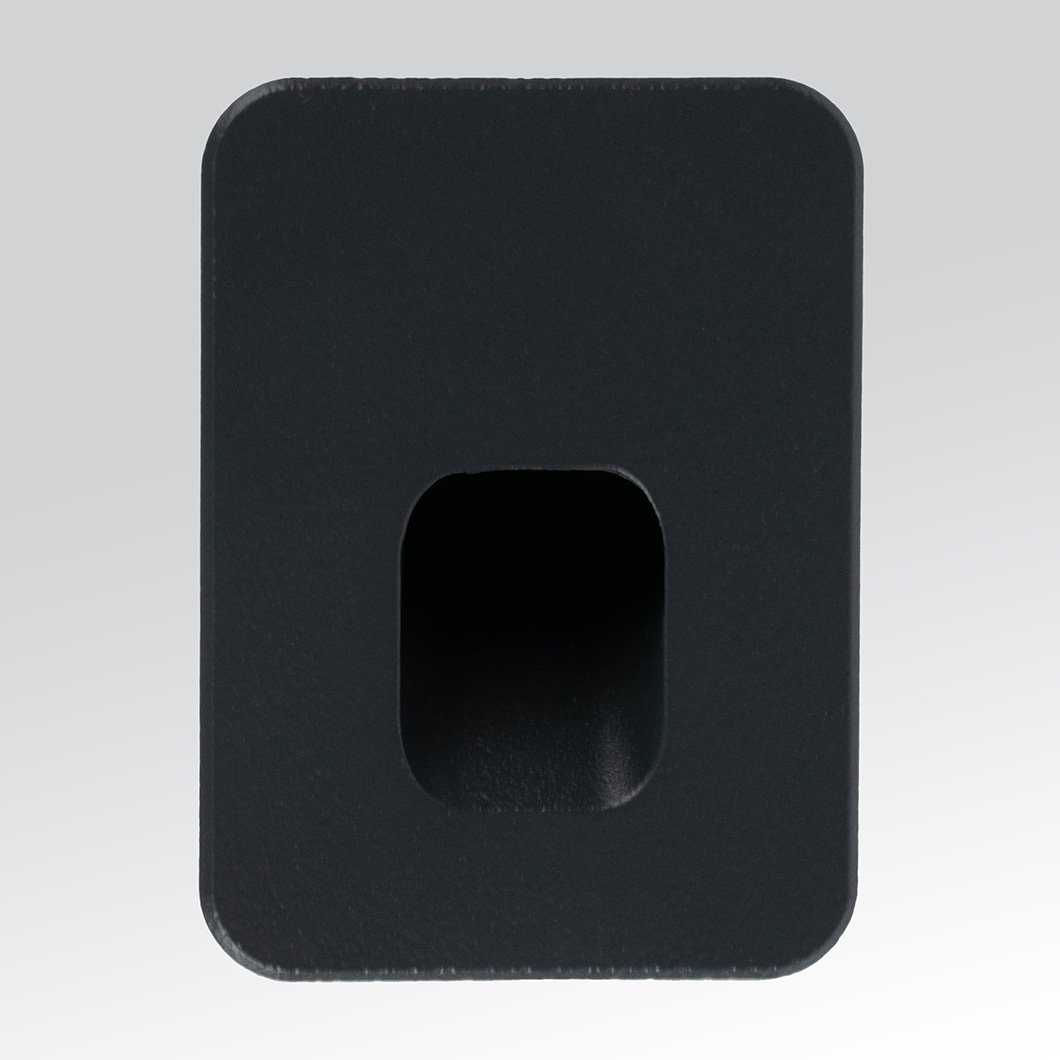

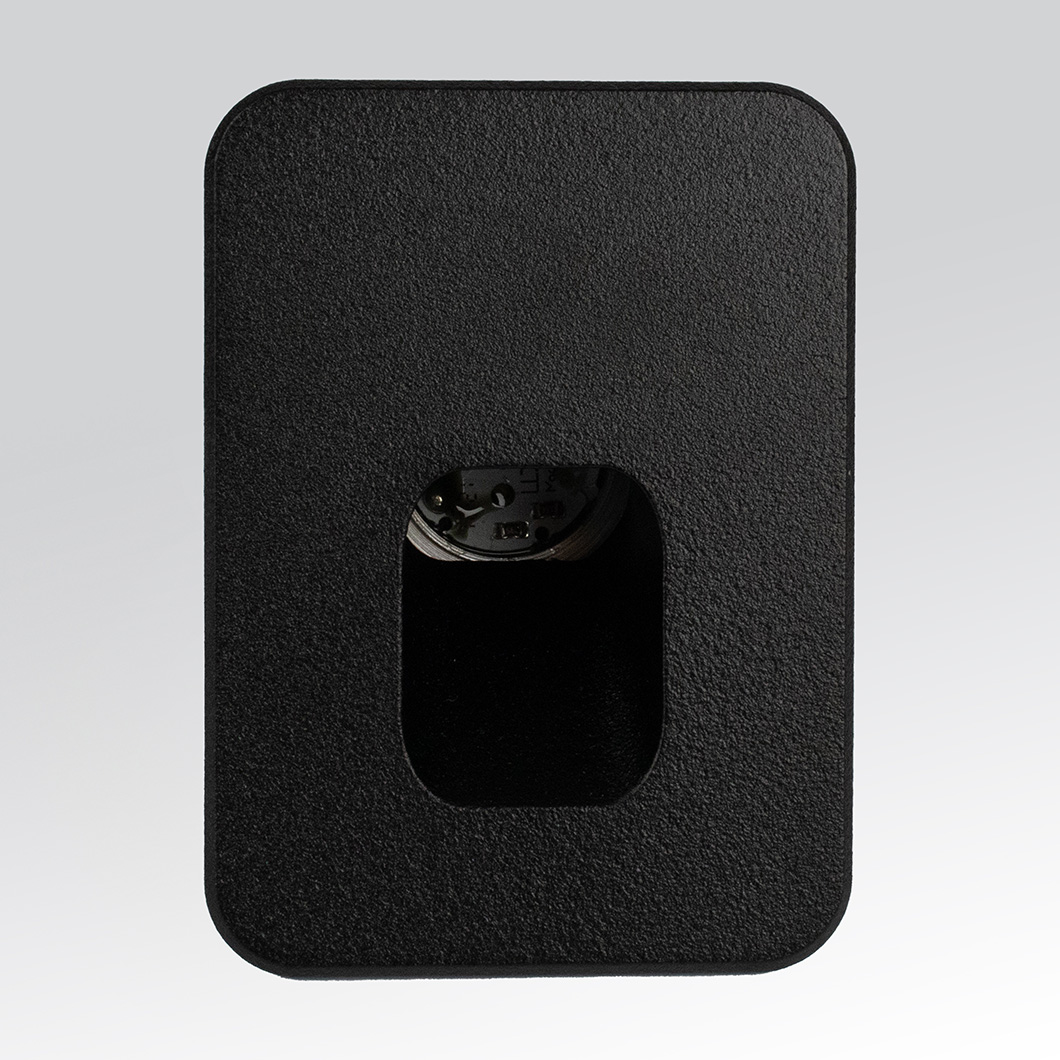

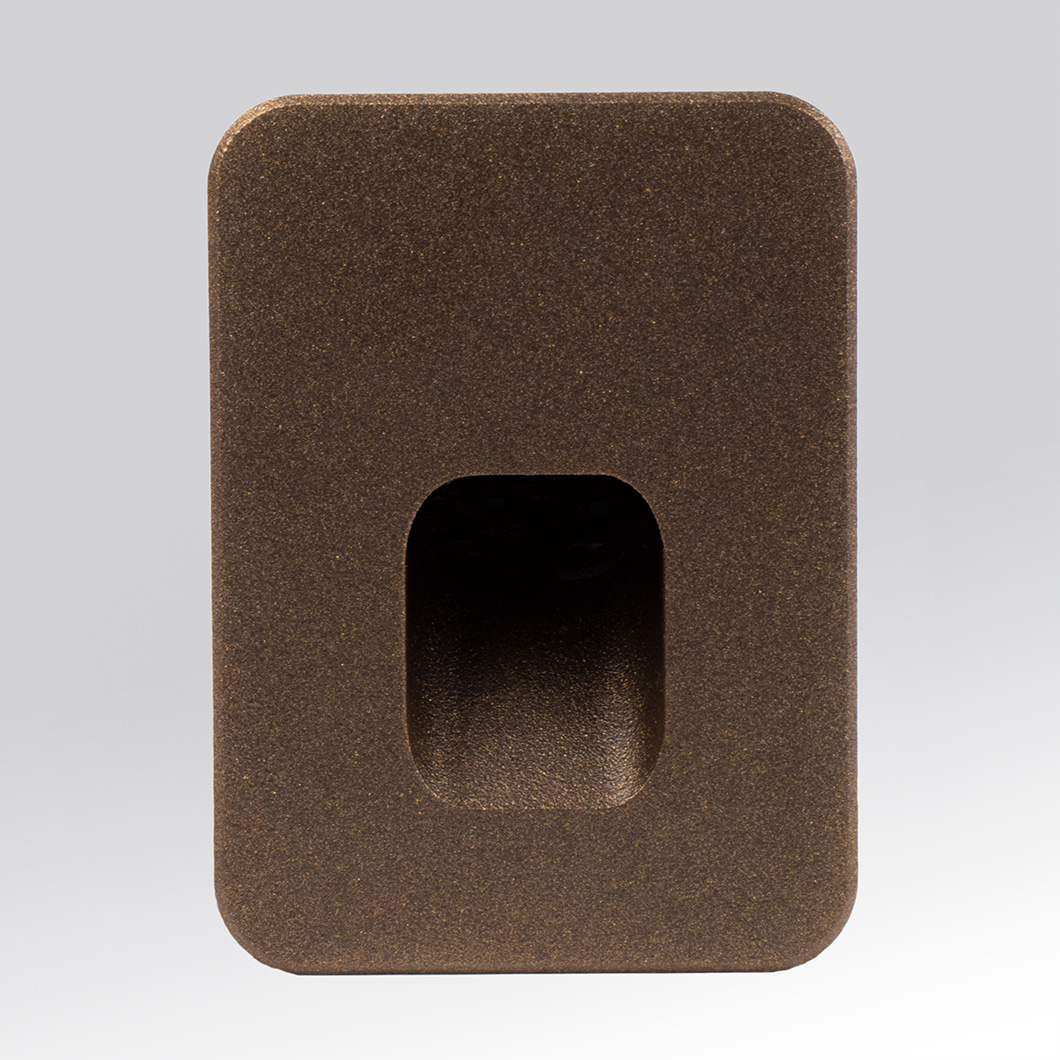

Cupido utilises an energy efficient low wattage 1-2W LED light source with a wide 60° beam angle. Constant current and wired in series with a choice of 2700K, 3000K, 4000K, 5000K, red, green or blue light temperatures. Constructed from an anticorodal aluminium body with protection glass. Finished in anodized aluminium, matt white, matt black, COR-TEN (rusted) or anthracite.

Supplied with a 250mm cable. Can be installed in plasterboard or wood using the spring, or installed into brickwork using the housing box.

350mA (for 1W) or 500mA (for 2W) driver required. This fitting is compatible with non dim, TRIAC dim, push dim, 1-10V dim and DALI dim drivers.

View the full LLD Light catalogue in the downloads tab.

Delivery usually within 2 weeks

Specification

IP65
1W (350mA driver) or 2W (500mA driver)
Class III
Cutout: Ø46mm
250mm cable
Beam angle: 60°
Recessed D.30mm
Protruding lip: 3mm
Weight: 0.14kg

Constant current - wired in series
350mA (1W) or 500mA (2W) driver required
Push, 1-10V and DALI dimmable

CCT | Lumens (1W-2W)
2700°K | 105-146lm
3000°K | 111-155lm
4000°K | 125-172lm
5000°K
Red
Green
Blue

Optional spring (ML053): W.78mm D.19mm
Optional housing box (CAE45): Ø50mm D.75mm

Lamp type: LED 1-2W Lifespan 50,000hrs

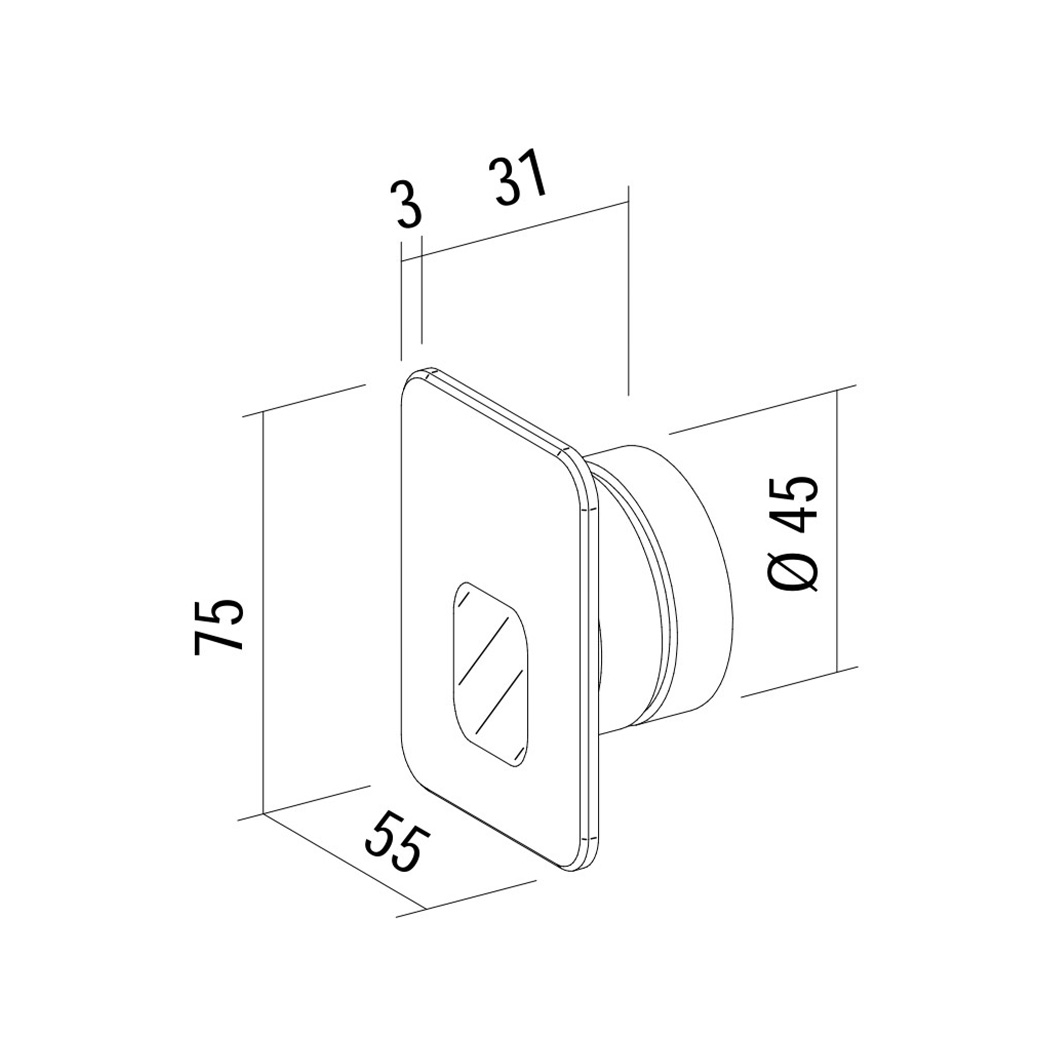

Dimensions

Product dimensions: W.55mm x D.33mm x H.75mm

Downloads

• Cupido-datasheet.pdf
• Cupido-install.pdf
• CUP311x3 [email protected]
• CUP311x3 [email protected]
• Info on WP Water Protection System PDF
• LLD Light 2021 Catalogue PDF
• LLD Light 2021 News Catalogue PDF

Delivery and warranty

Delivery usually within 2-3 weeks

Supplied with a 2 year warranty covering manufacturing and/or design defects. The warranty does not cover:

• damage caused by transport
• the use of products in unsuitable environmental conditions
• non-standard product use or stress including under/over voltage
• damage caused by negligence or lack of maintenance
• damage caused by the use of power supplies not provided or indicated by LLD Light
• repair attempts or tampering performed by unauthorised staff

About the manufacturer

With a heritage in nautical lighting, it's no surprise that LLD Light have evolved to become a prominent manufacturer of contemporary architectural indoor and outdoor lighting. Passionate about continual research and innovation, LLD combine innovative Italian design with the highest quality locally sourced materials. Each LLD light fitting, electronics and all, is produced in Vicenza - a true example of Made In Italy.

Our LLD Light edit below showcases the most popular products in the range.

  Browse the full LLD 2021 catalogue
  Browse the full LLD News 2021 catalogue

For prices on any product that isn't shown below please contact us.



We're especially excited about their range of contemporary IP rated outdoor lighting - from adjustable spike spots and bollards, to wall lights and IP68 submersible underwater lights. Most are available in sleek and modern stainless steel, black or white, as well as COR-TEN stable rusted or in green to truly camouflage with the outdoor environment.

Got a question? Email us or call 01189 882294
