LED Profilelement L24 Alu Profile

Description

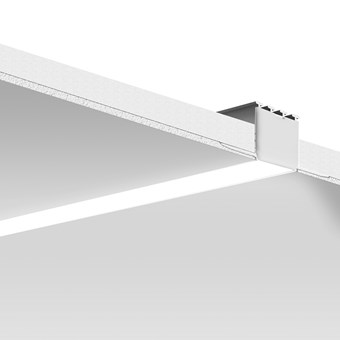

LED Profilelement L24 Linear profile for concealed and integrated installation in walls and ceilings. The L24 LED recessed profile is made from high-grade aluminium, in which a maximum of 2 LED strips with 8-10mm width can be installed. If the distance of the LED chips is less than 15mm, a homogeneously illuminated line (without visible points) is created.

Opal supplied diffuser cover made of polycarbonate (PC) is weathering and UV-resistant and flame-retardant. The optional end caps, made of polypropylene (PP), additionally seal the profile.

Installing two LED strips in the profile means that L24 can be used as a primary light source that is energy-efficient.

See the Optional Items below for:
The fleece lining for seamless installation (see install instructions)

Supplied in 2m lengths. Various connectors are available to join on the same plane (flat) and wall-to-ceiling (angle), scroll through the images above for further details.

Delivery usually within 3-5 working days

See install instructions PDF in the Downloads tab.

Specification

Length 2000mm
Internal width 24.2mm
Profile: aluminium
Opal diffuser cover: polycarbonate (PC) included
Optional end cap (PE85.0005): polypropylene (PP)

Connectors:
Flat straight - wall-to-wall/ceiling-to-ceiling
Flat 90° - wall-to-wall/ceiling-to-ceiling
Flat 135° - wall-to-wall/ceiling-to-ceiling
Angle 90° - wall-to-ceiling/ceiling-to-wall
Angle 135° - wall-to-ceiling/ceiling-to-wall

LED tape: maximum 30W/m

How to install LED Profilelement L24 Alu Profile - video

Dimensions

Product dimensions: W.2000mm x D.67mm x H.25mm

Downloads

• LED-prof-L24-ALU-profile.pdf
• LED-Prof-L24-install.pdf

Delivery and warranty

When in stock: Next day delivery
Not in stock: Delivery approximately 2 weeks

Supplied with a 3 year warranty

About the manufacturer

Flexibility. If there’s one word to sum up LED Profilelement, it’s flexibility. Whether creating indirect accent lighting, shadow gaps for coves and skirtings or highlighting architectural features, the versatility of LED Profilelement flows from soft and subtle integrated lighting to a striking, dramatic statement.

The LED Profilelement edit below showcases the most popular products in the range.

 Browse the full LED Profilelement catalogue

For prices on any product that isn't shown below please contact us.



Installed directly into the drywall, many of the profiles are either plaster-in or with a paintable wing - seamlessly integrating into the architectural scheme whilst taking advantage of the latest in LED innovations. As we said - flexibility.
