Flexalighting Tera 7 IP67 Recessed Floor Uplight

Description

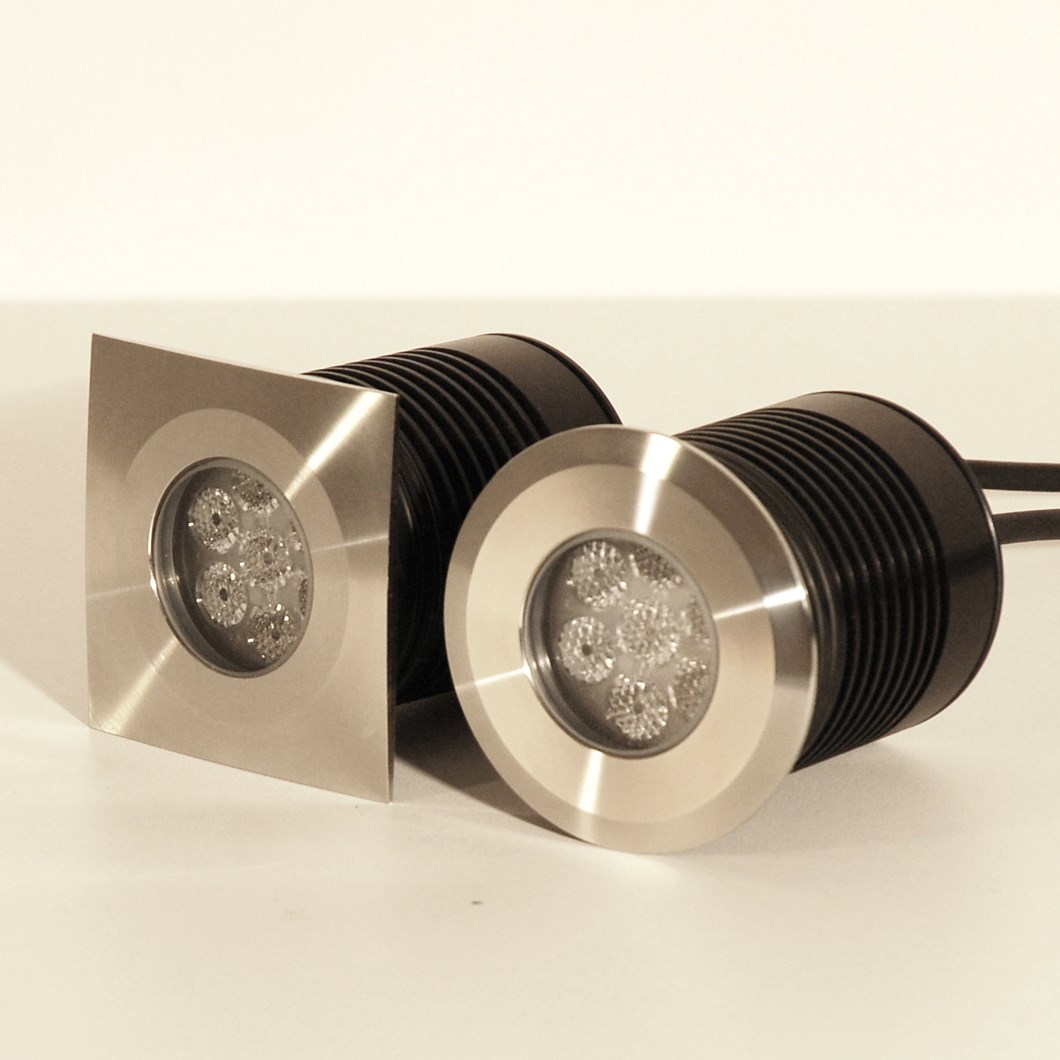

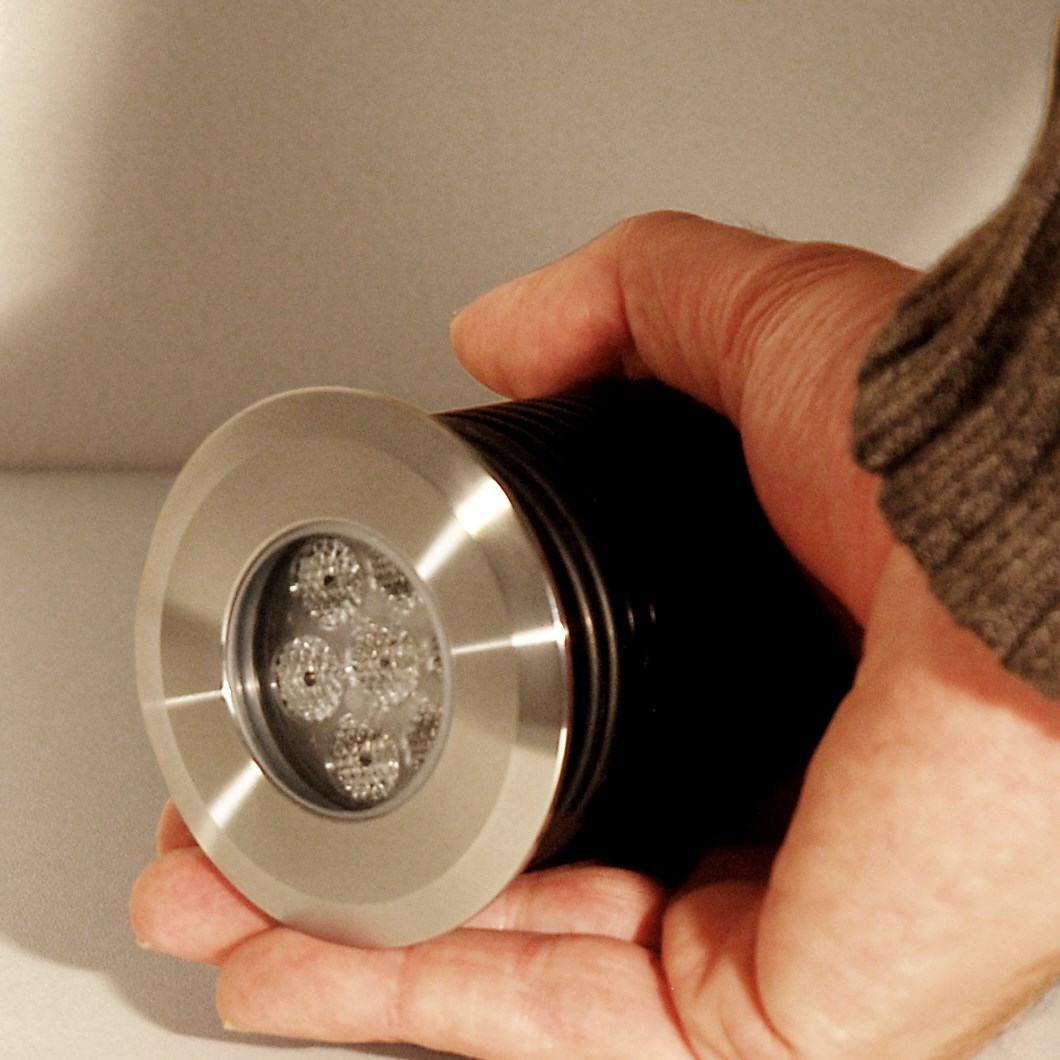

Tera 7 LED IP67 in-ground recessed floor uplight boasts high construction quality and excellent optical performance. The use of advanced waterproofing technologies ensures absolute product reliability. In square and round versions. Aluminium front with double powder coating finished in Grey, Black or COR-TEN. Also in stainless steel AISI 316L. IP67 and IK09 ratings mean this fitting can be used outside (with recessing box CSXJ01) and is strong enough to take the weight of a human. The stainless steel finish is IK10 rated, which means it can be driven over. Optional antiglare low luminance louvre available.

Other Tera versions available.

Delivery usually in 1-2 weeks

- Our Top Tips -

This fitting needs a driver. You can pick a driver:

(1) from the dropdown above, or
(2) from ‘You May Also Need' below, or
(3) once you add this product to your basket

Driver questions? Contact us - we're happy to help :)



Specification

IP67
Stainless Steel: IK10 (can be driven over)
Other finishes: IK09 (can be walked over)

7W 350mA
Wired in series

18°, 40° or 120° beam angle

CSXJ01 recessing box:
Diameter:93mm H:115mm

Driver required - see 'You May Also Need' below
Constant Current Driver | No. units powered
L-Tech 20W 300-650mA CC Triac LED Driver | 1-2 Tera 7 (7W)

Lamp type: 7W LED (350mA)

Dimensions

Product dimensions: W.70mm x D.90mm x H.70mm x Diameter.70mm

Downloads

• tera-7-datasheet-1.pdf
• tera-7-datasheet-2.pdf
• Tera-Energy-Label2.pdf
• Flexa-Drivers-Datasheet41.pdf
• TERA 7 18DG 3000K 350mA.ies
• TERA 7 40DG 3000K 350mA.ies
• TERA 7 120DG 3000K 350mA.ies
• TERA 7 18DG 3000K 350mA.ldt
• TERA 7 40DG 3000K 350mA.ldt
• TERA 7 120DG 3000K 350mA.ldt

Delivery and warranty

Delivery usually within 2-3 weeks

About the manufacturer

Flexalighting produce innovative and beautifully made architectural lighting solutions for indoor and outdoor installations. Leveraging one of the fundamental qualities of the LED source, the small size, the collection combines minimum device size with high quality luminous efficiency and high Chromatic Rendering Index LEDs.  Manufactured in Italy with a level of finishing that is at the top of the international market, Flexalighting is the perfect choice for domestic or commercial projects.
