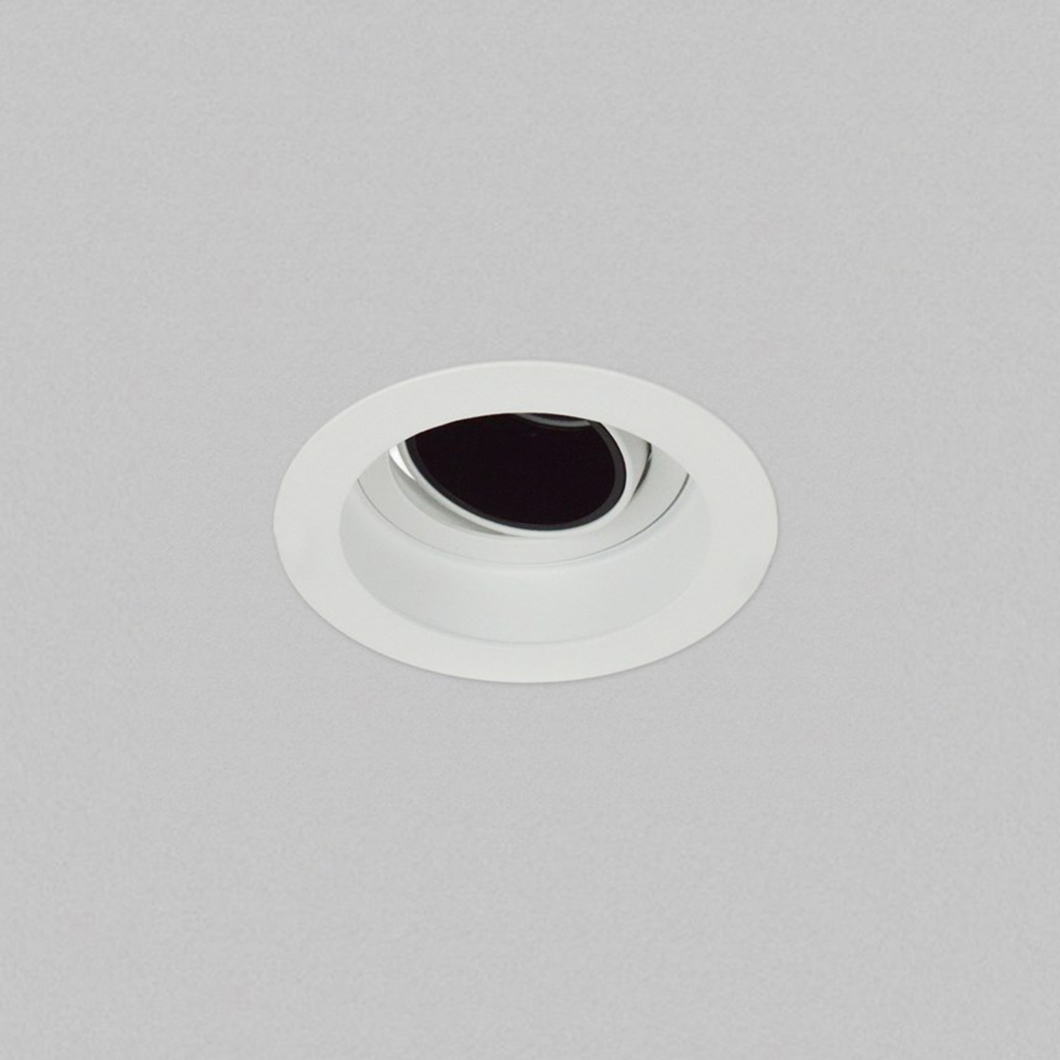

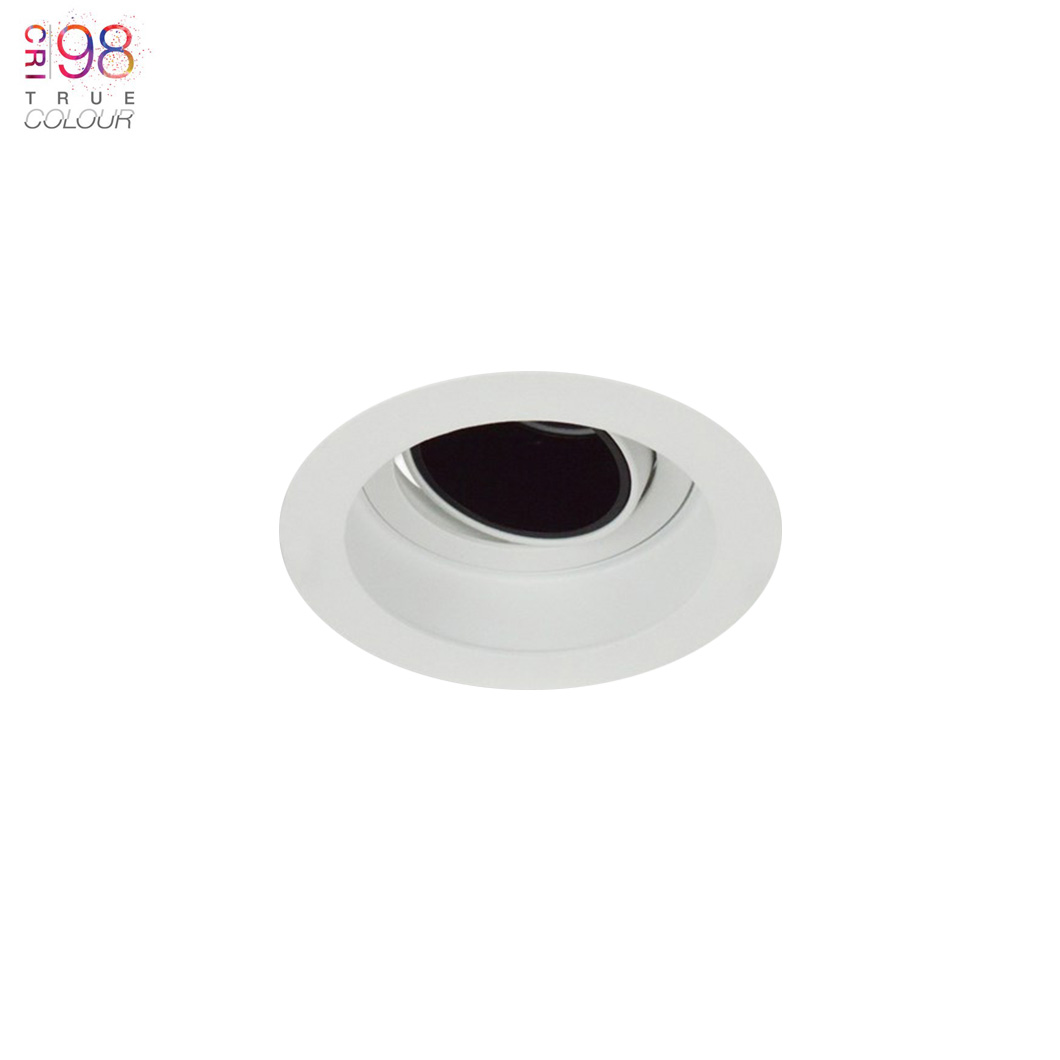

DLD Andes 1 Round Adjustable Recessed Downlight, installed in a white ceiling, with TrueColour CRI98 logo
Andes down light on a plasterboard background, front view to show the lens

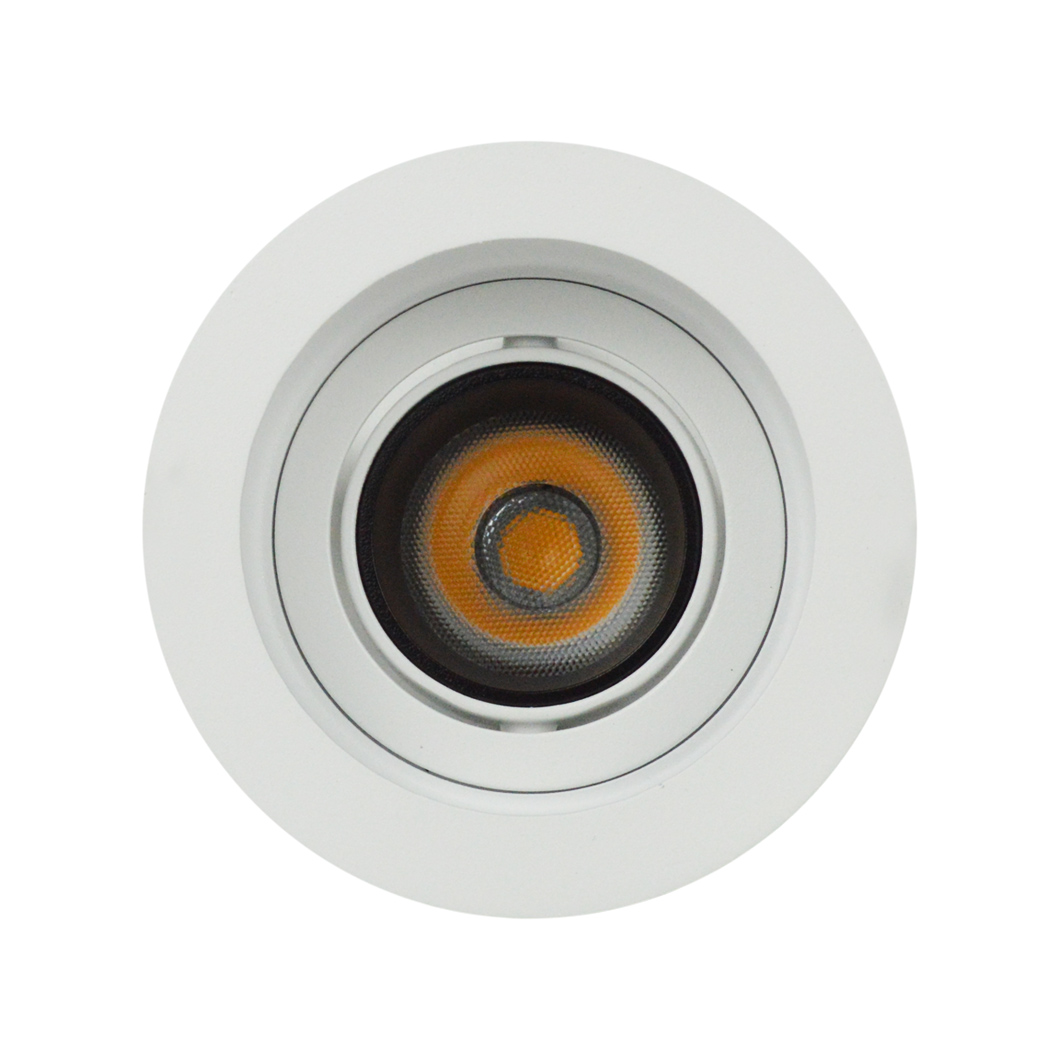

Straight on view DLD Andes 1-R True Colour CRI98 adjustable recessed downlight with round trim on white background

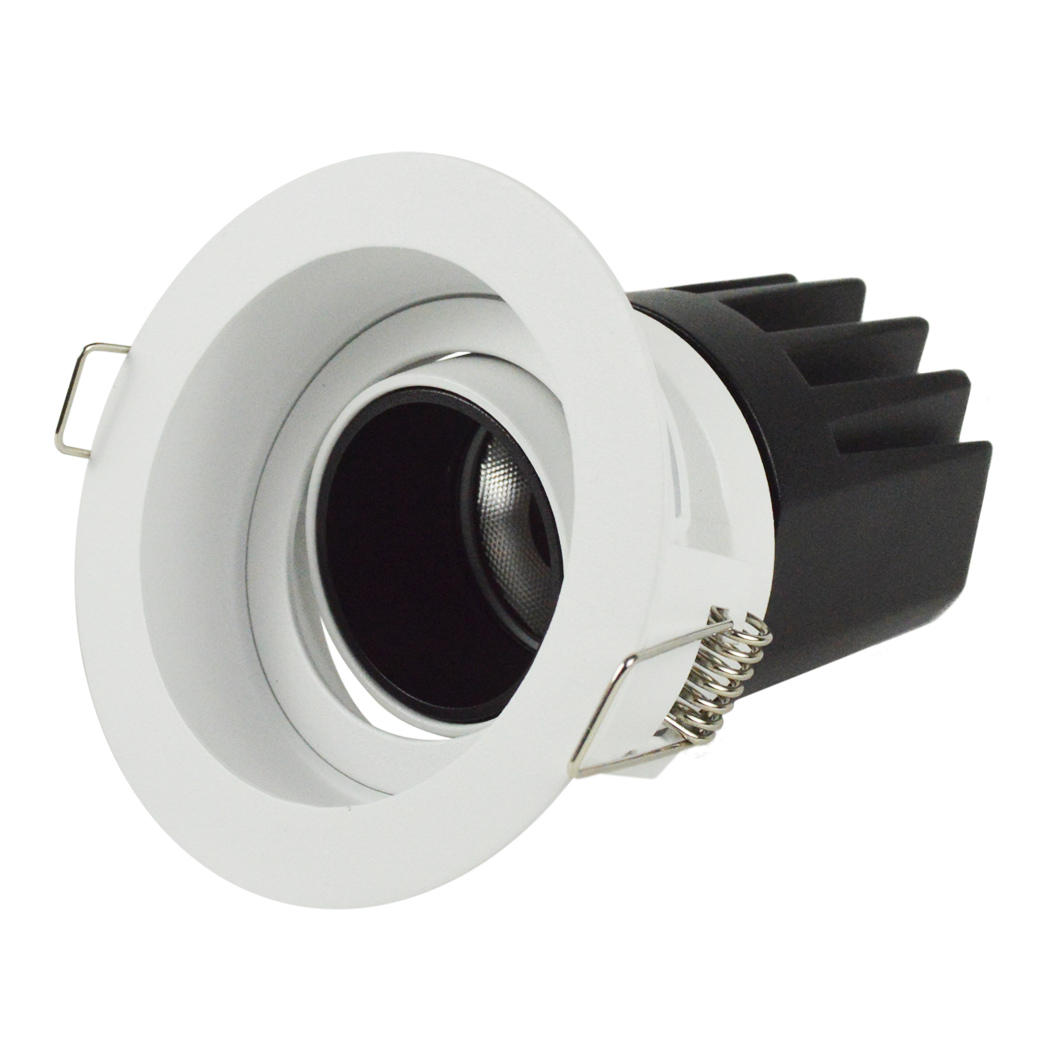

3/4 view DLD Andes 1-R True Colour CRI98 round adjustable recessed downlight on white background

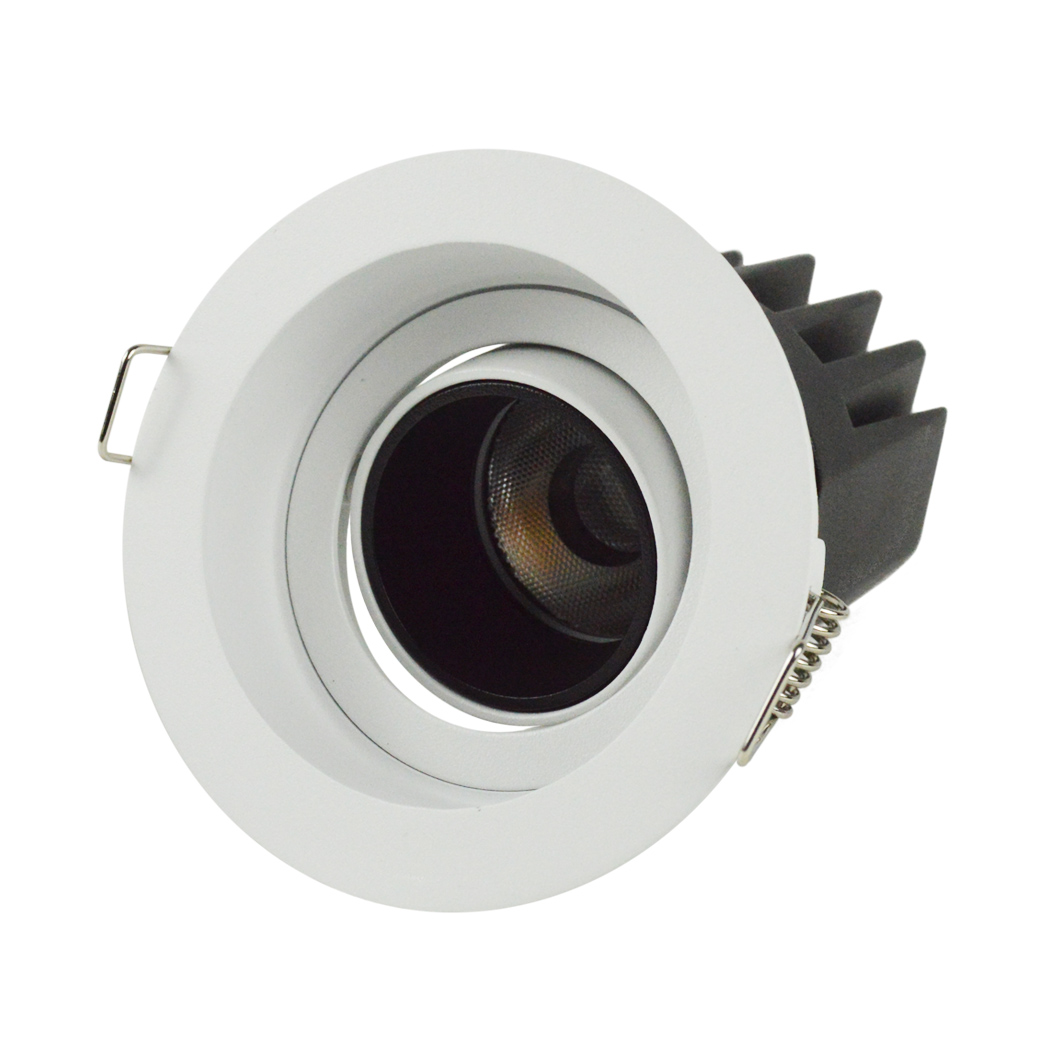

3/4 view DLD Andes 1-R True Colour CRI98 round adjustable recessed downlight on white background

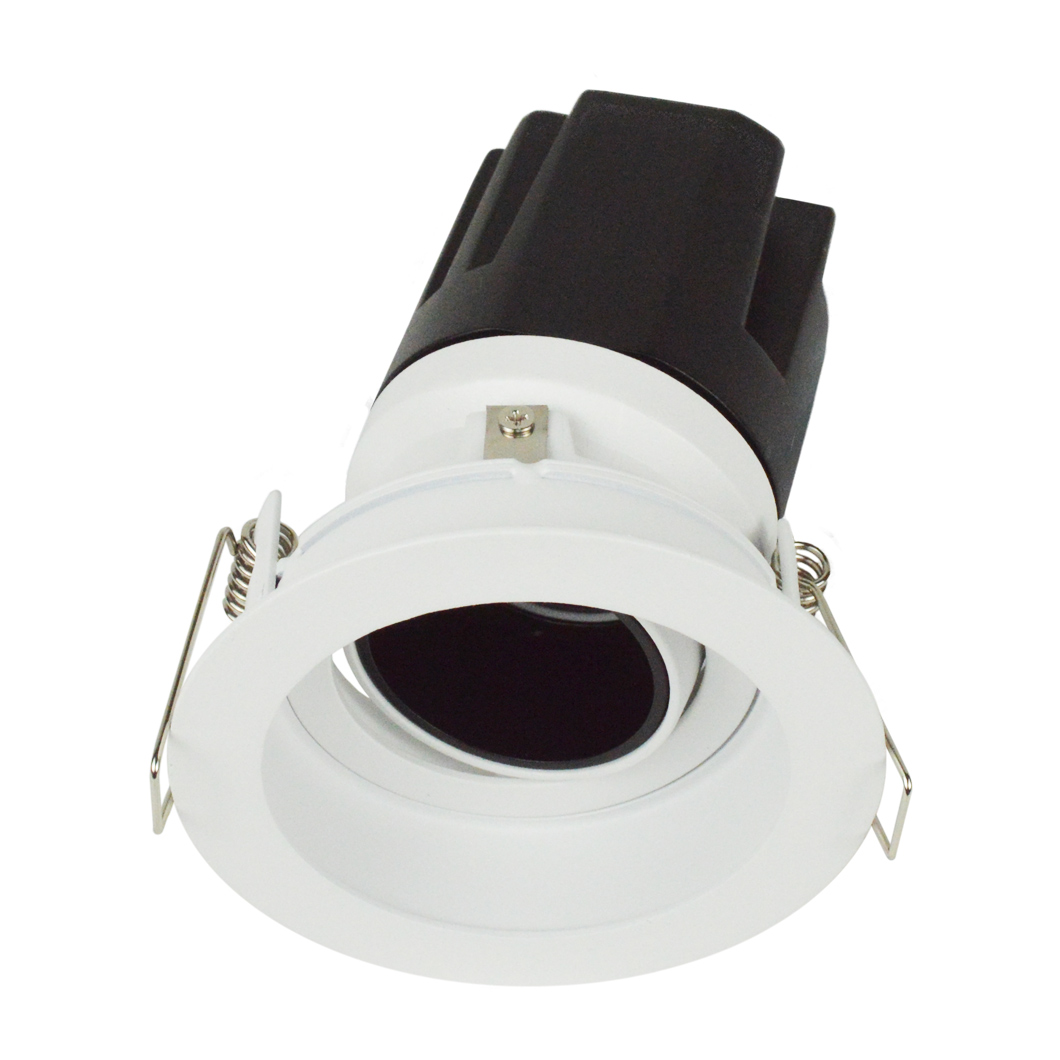

3/4 view DLD Andes 1-R True Colour CRI98 round adjustable recessed downlight with trim tilted light engine on white background

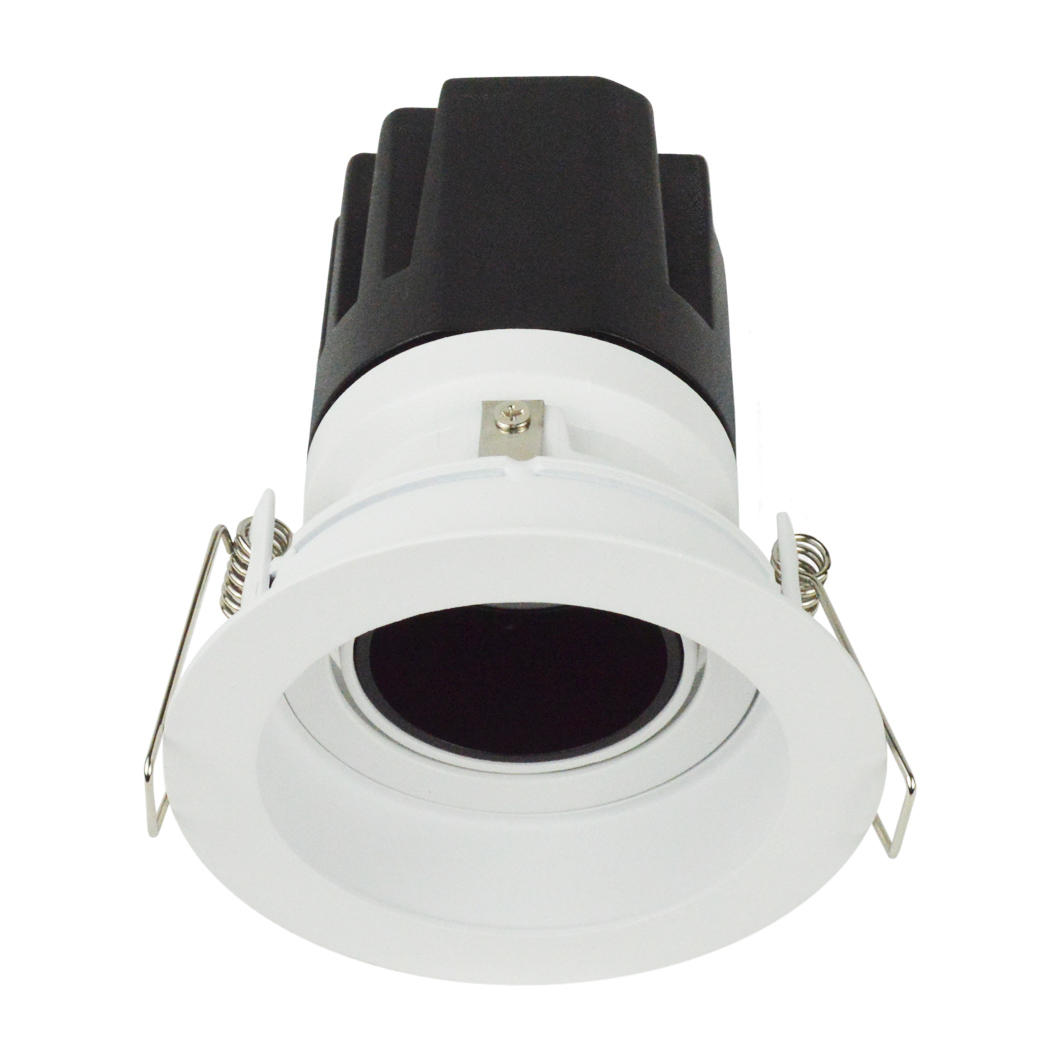

3/4 view DLD Andes 1-R True Colour CRI98 round adjustable recessed downlight with trim straight light engine on white background

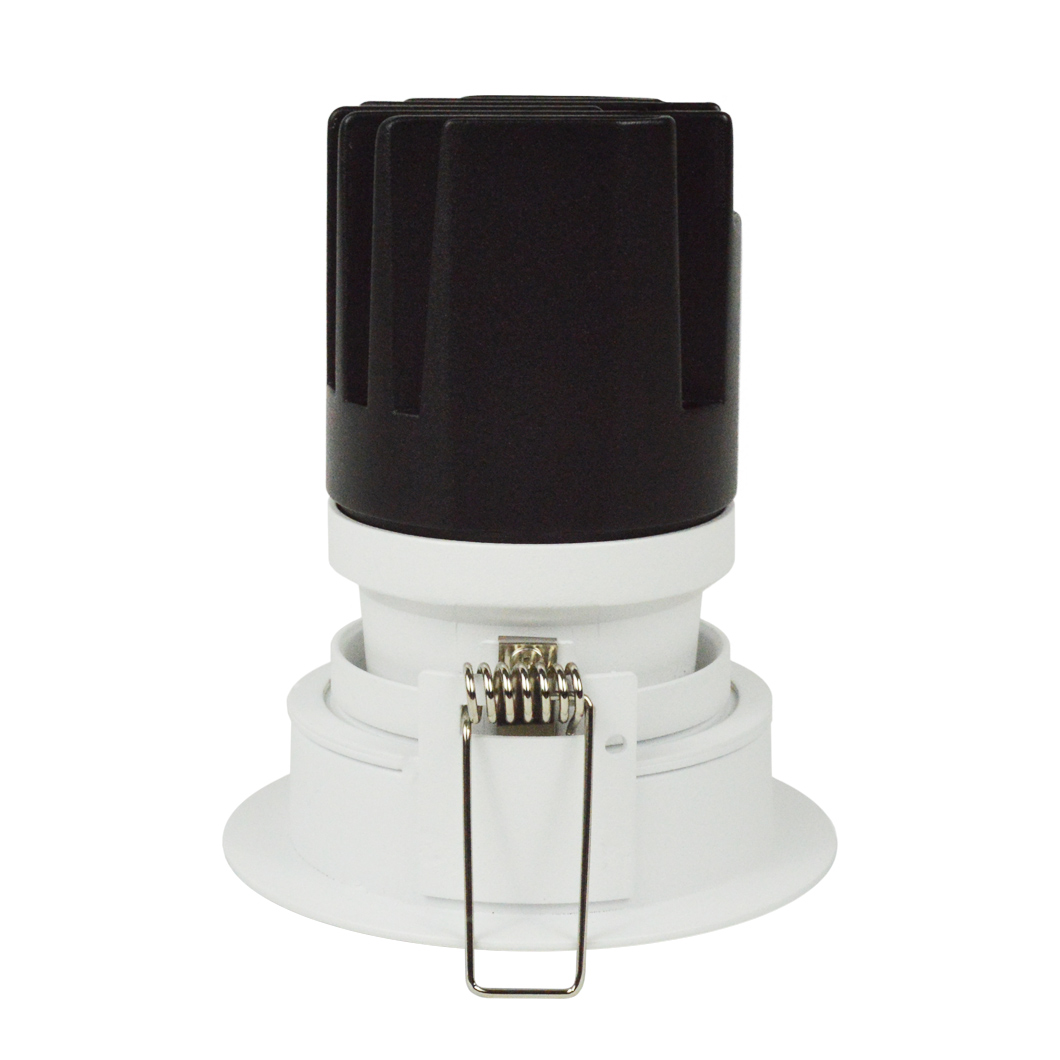

Side on DLD Andes 1-R True Colour CRI98 round adjustable recessed downlight with straight light engine on white background

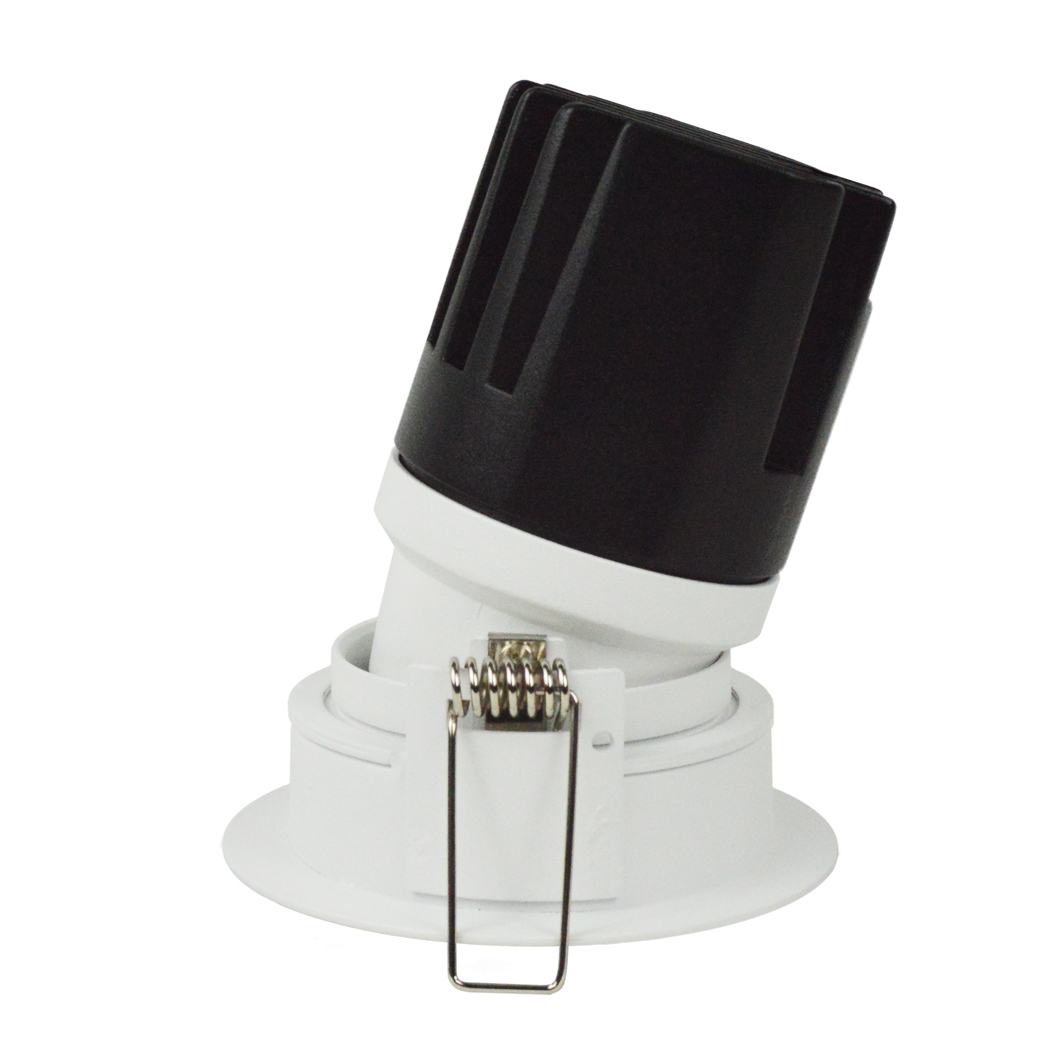

Side on DLD Andes 1-R True Colour CRI98 round adjustable recessed downlight with tilted light engine on white background
DLD Andes 1 Round Adjustable Recessed Downlight, installed in a white ceiling, with TrueColour CRI98 logo
Andes down light on a plasterboard background, front view to show the lens
Straight on view DLD Andes 1-R True Colour CRI98 adjustable recessed downlight with round trim on white background
3/4 view DLD Andes 1-R True Colour CRI98 round adjustable recessed downlight on white background
3/4 view DLD Andes 1-R True Colour CRI98 round adjustable recessed downlight on white background
3/4 view DLD Andes 1-R True Colour CRI98 round adjustable recessed downlight with trim tilted light engine on white background
3/4 view DLD Andes 1-R True Colour CRI98 round adjustable recessed downlight with trim straight light engine on white background
Side on DLD Andes 1-R True Colour CRI98 round adjustable recessed downlight with straight light engine on white background
Side on DLD Andes 1-R True Colour CRI98 round adjustable recessed downlight with tilted light engine on white background

DLD Andes 1-R True Colour CRI98 LED Adjustable Recessed Downlight - Next Day Delivery

Manufacturer: DLD Architectural

£99

One tree planted
Trustpilot Rating
Free UK delivery
Next Day Delivery
365 Day returns

View product details

Description

With a glare-reducing deep black baffle, the DLD Andes 1-R adjustable recessed downlight displays colours with amazing precision thanks to our True Colour CRI98 LED chip. The Andes range is the ideal directional downlight for bathroom zone 2 (it's also suitable for standard rooms) thanks to the IP54 rating. The 24º adjustable tilt and 355º rotation mean Andes can be used to highlight specific walls or architectural features.

Once the frame is installed into the ceiling it's easy to pop the LED light engine in and out, allowing for simple maintenance after installation. Beam angles of 15º or 36º offer a narrower or wider spread of light depending on what effect is needed. Die-cast aluminium luminaire with steel housing. Heat sink in forged aluminium for optimum heat dissipation. Reflector in plastic PC. Bezel ring in white or black finish with an inner black baffle. Our downlights are fire rated as standard, and have lasted over 60 minutes in independent tests by Cambridge Fire Research. The Andes range is fully dimmable, supporting 0-10V, TRIAC or DALI drivers.

4000K colour temperature on demand - please contact for details.

Wireless dimming from your smartphone

This luminaire can also be used with the Casambi dimming units to give flexible control of all the lights in your home. Create the perfect mood for all situations wirelessly via Bluetooth 4.0 and save them as pre-set scenes on the Casambi app from your smartphone. Or control the scene at the touch of a button, either with Casambi wireless wall switches or with an off-the-shelf push dimmable on/off switch.  See the 'You May Also Need...' section below for the available options and technical information.

Emergency lighting compatible

Emergency pack available as an extra. By utilising the optional emergency pack this luminaire can be used as a back-up emergency light fitting that complies with standard building safety regulations. In the event of a power outage this high performance fitting becomes a low lux emergency light, operating at around 10% of it’s original performance with a battery life of 3 hours. Please contact us for details.

Currently in stock:
White with black baffle
Orders placed before midday are delivered next working day

Available on request:
Body in black
Baffle in white or gold
Please contact us for the lead time on these finishes

Specification

IP54 - suitable for bathroom zone 2
Wattage: 13W
Current: 350mA
Beam angle: 15º | 36º
Adjustable tilt: 24º
Adjustable rotation: 355º
True Colour CRI 98

Colour Temperature:
2700ºK | 3000ºK | 4000ºK

Delivered Lumens:
Dependent on beam angle and colour temp - see datasheet in Downloads tab

Driver Options:

  • Mains dimmable driver: Osram OT FIT 14W Phase Cut CC Driver
  • 0-10V dimmable driver: EldoLED 0-10V ELD/SL0241A2-350
  • DALI dimmable driver: L-Tech DALI-15-100-700-E1A1
  • See datasheets in Downloads tab for further details

Fire Rated:

60+ minute FR rating
Independently tested by Cambridge Fire Service

Emergency pack (optional)

1 x per light engine
3hr battery life
Low lux emergency light output
Fully compliant with standard building safety regulations

Maintenance & Access

  • LED fitting removable from the plaster-in housing post installation
  • Driver fits through the cut-out hole diameter
  • Driver can be housed remotely from the fitting (check maximum distance with us)
Dimensions

Product dimensions: H.105mm x Diameter.92mm

Cutout dimensions: Dia.78mm

Downloads
Delivery and warranty

Delivery varies for each product, please see product description

About the manufacturer

Tailor-made for lighting designers and architects, the DLD Architectural lighting collection is sourced and manufactured by us to complement our Raw Design decorative lighting range. Our outstanding selection of LED architectural fittings and luminaires combines modern minimalist design with the finest components, and utilises the latest technology. Specialising in contemporary linear profile lighting, discreet yet powerful glare-free recessed downlights, modular track systems and high end exterior lighting solutions, the DLD Architectural collection is perfect for creating inspirational and innovative lighting schemes for domestic and commercial projects.

For more information on our products and services please call 01189 882294 or email [email protected].
