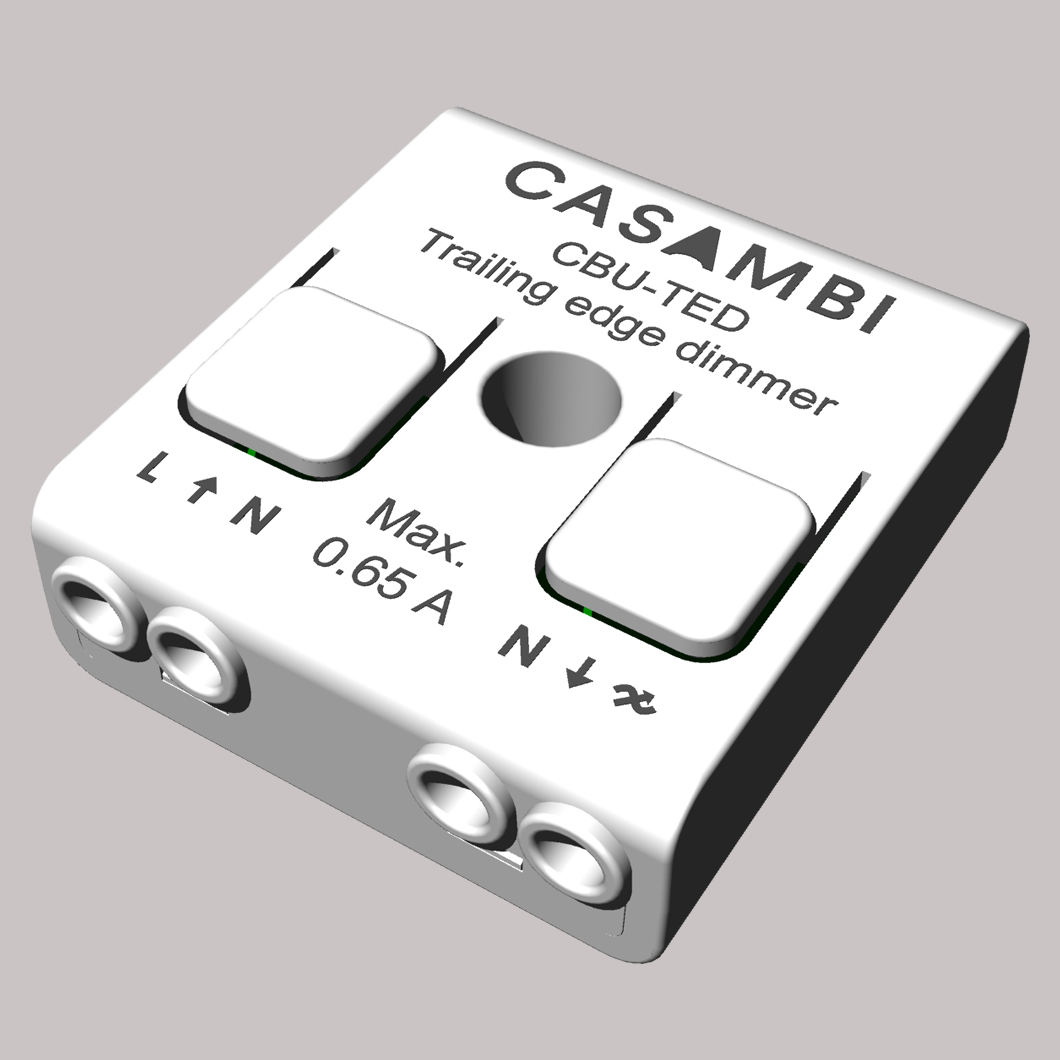

Casambi CBU-TED Compact Bluetooth Phase Cut Trailing Edge Dimming Wireless Control Unit

Manufacturer: Casambi

View product details

Description

The Casambi CBU-TED is a wireless dimming control unit for trailing edge phase cut / mains dimming LED or halogen luminaires. The control unit uses BLE (Bluetooth Low Energy) technology which means no external gateway device is required – being more cost effective and is also considered as more reliable than WIFI based dimming units through its ‘mesh network’.

The versatile CBU-TED is able to control up to 150W at 230VAC, allowing you to control either 1 luminaire directly or creating a full featured home dimming system with up to 127 dimming units all controlled under the same network.

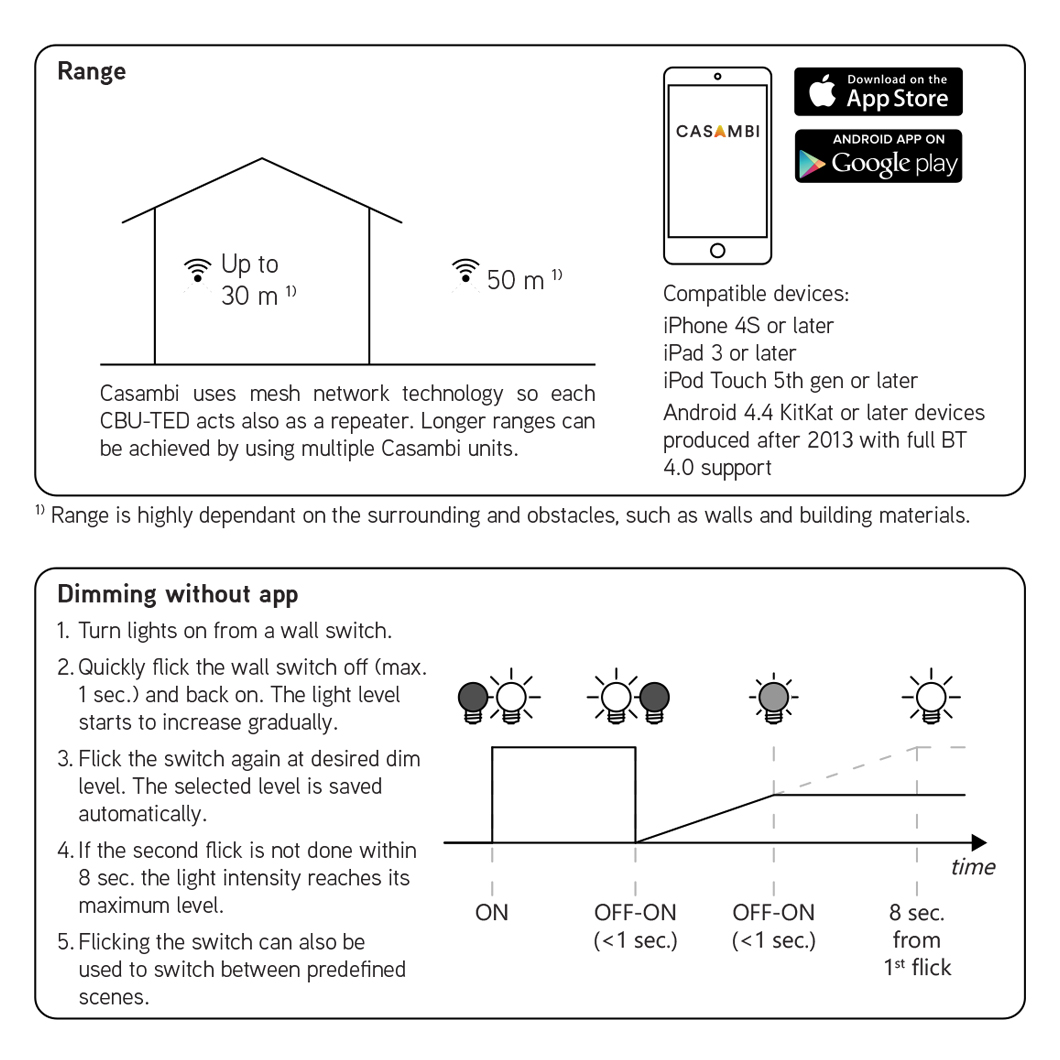

Download the free Casambi app on your smartphone/tablet to control your lights or alternatively, you can use an existing standard wall switch or Casambi’s own advanced X-Press switch (see related products below).

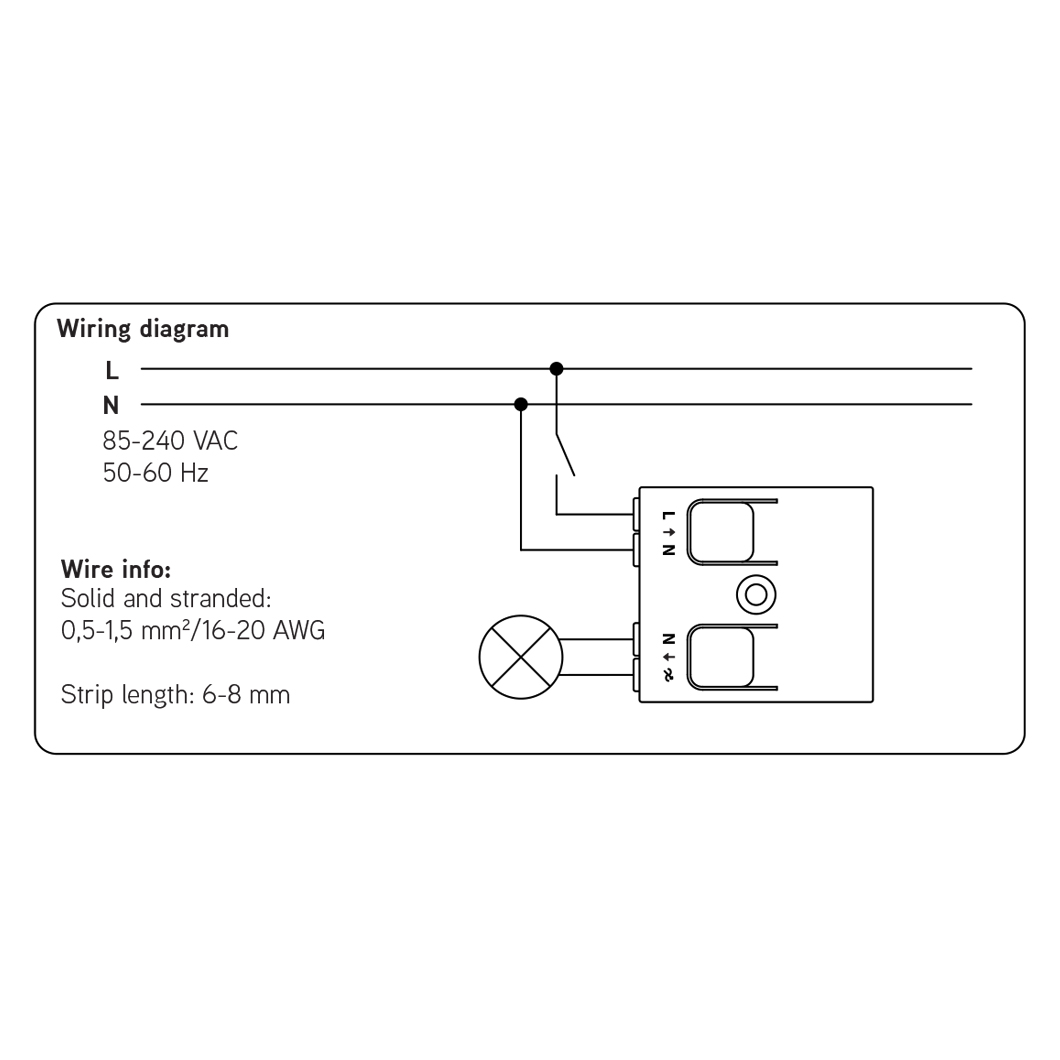

For help with how to wire this unit, please see the datasheet guide in the downloads tab or contact us for further info - 01189 882294 / [email protected].

Casambi tutorial video:

- Our Top Tips -

At maximum load, this unit can get quite hot - make sure it's placed in a well ventilated space and away from any flammable materials

Never connect this unit to inductive loads, such as iron core transformers - this could cause permanent damage to the dimmer. Do not mix different types of loads.

Specification

IP20

Dimming method:
Trailing-edge phase control

Input
85-240VAC 50-60HZ and 120VAC 60Hz

Output
150W @ 230VAC / 75VA @ 120VAC

Max. output current:
0,65A

Min. load requirement:
1W

Max. inrush current:
10A, 100ms

Video on how the Casambi network works:

Dimensions

Product dimensions: W.40mm x D.14mm x H.36mm
