9010 Hint Big 1304C LED Outdoor Recessed Step / Low Level Wall Light

Description

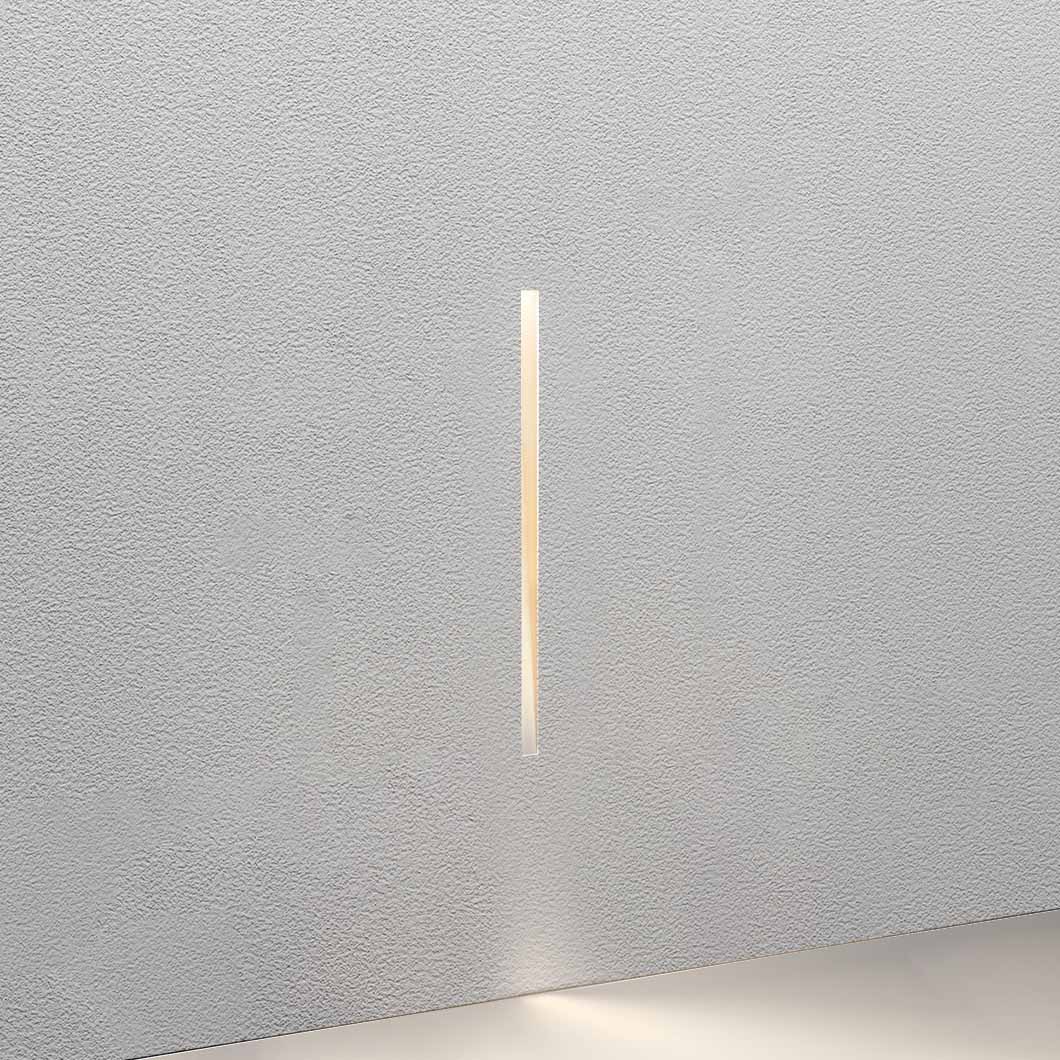

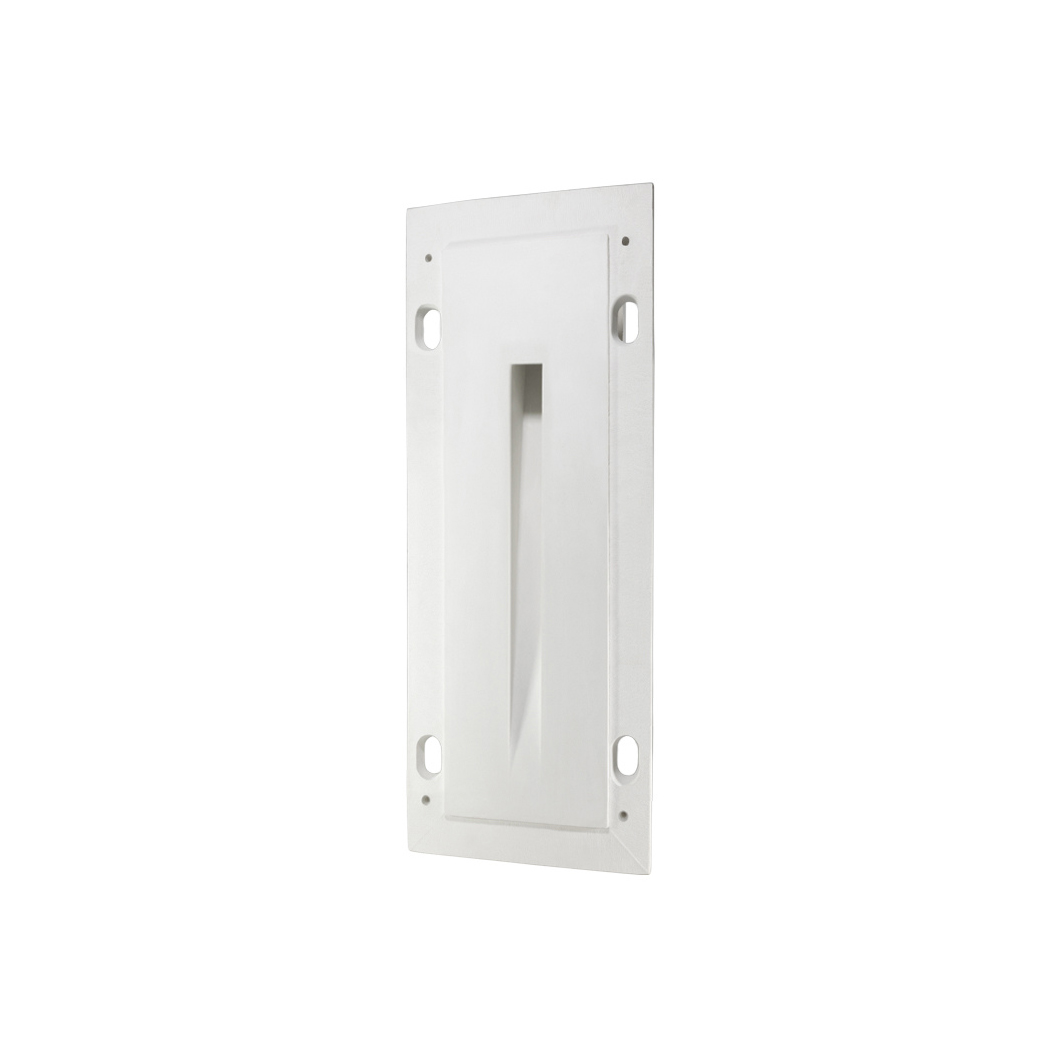

A minimalist wall recessed LED fitting, Hint Big by 9010 Novantadieci is designed specifically to wash steps, staircases, and paths in light. Compatible with cladding insulation and blending into the wall, the Hint Big fitting has a slim visible opening of 45cm x 2cm.

Handmade in Italy, Hint Big is equipped with a 4W 3000K LED, which offers 400 lumen. Once recessed into the wall, Hint Big low level light fitting is plastered up to the BETALY® component, which can then be primed and painted for a seamless finish. The combination of the IP65 rating and weatherproof BETALY® material makes Hint Big perfect for modern exterior landscaping projects.

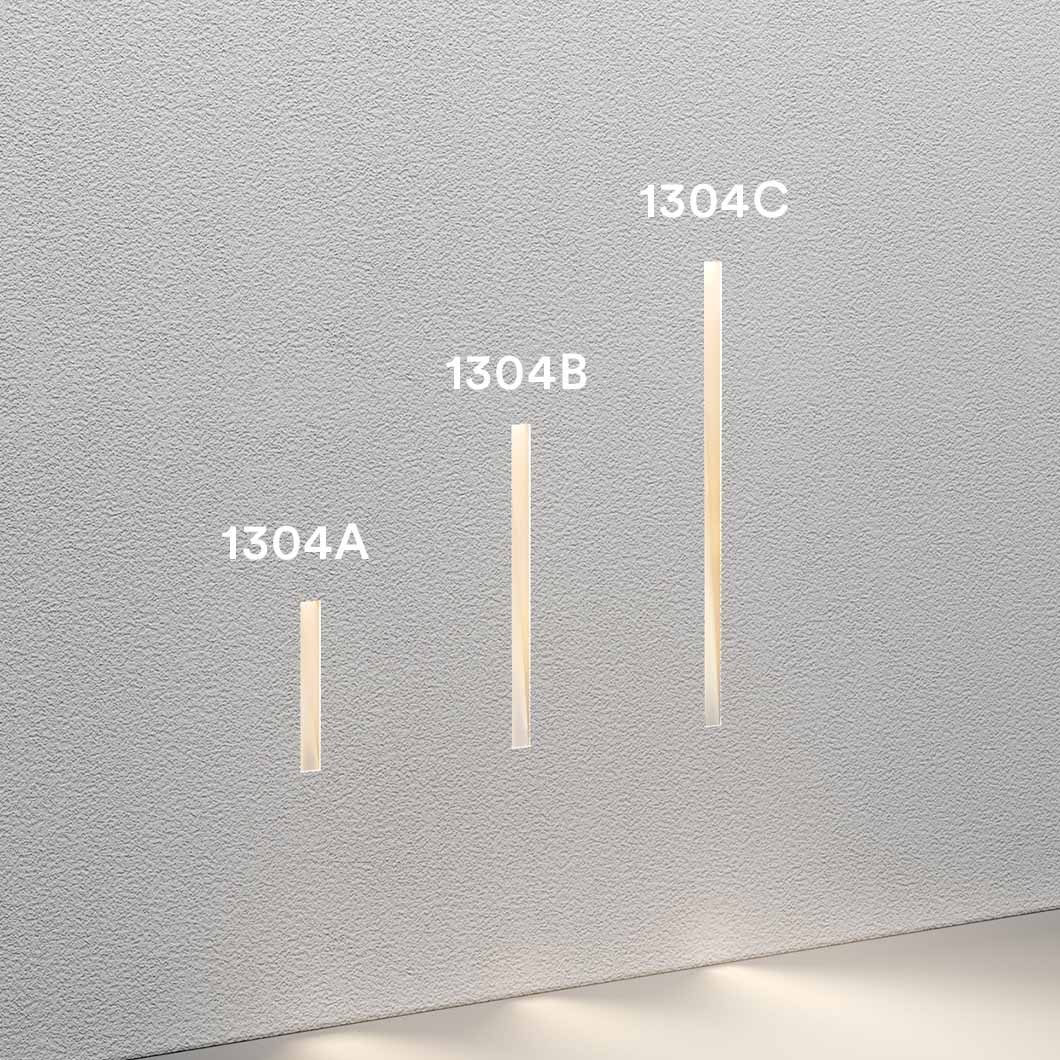

- The 9010 Hint family is available in multiple sizes - see 'More Like This' below.

- Driver not included - see 'You May Also Need' below.

BETALY® - Artisanal raw material

Made from 9010 Novantadieci's very own material, BETALY® is a blend of:

• cements
• precious marbles
• quartz
• fluvial sands

which creates a material that combines strength, lightness and durability whilst being eco-friendly, non-toxic, recycled and solvent free.

Learn more about BETALY® by 9010 Novantadieci in the Downloads tab.



Specification

Isolation Class: III
IP: IP65
Installation: Recessed
Weight: 6.7kg

Type: Indirect light
Light source: LED
Power: 4W
Tension: 24VDC Constant Voltage
Lumen: 400lm
Colour temperature: 3000°K
CRI 80

Finish: White (RAL code 392)

Preparation / finishing cycle to colour the products in BETALY®:
1) Apply a solvent based primer (eventually as second choice an acrylic based one);
2) Wait the required drying time;
3) Apply the acrylic based finishing colour.

Lamp type: LED 4W | 3000K | 400lm | 24VDC

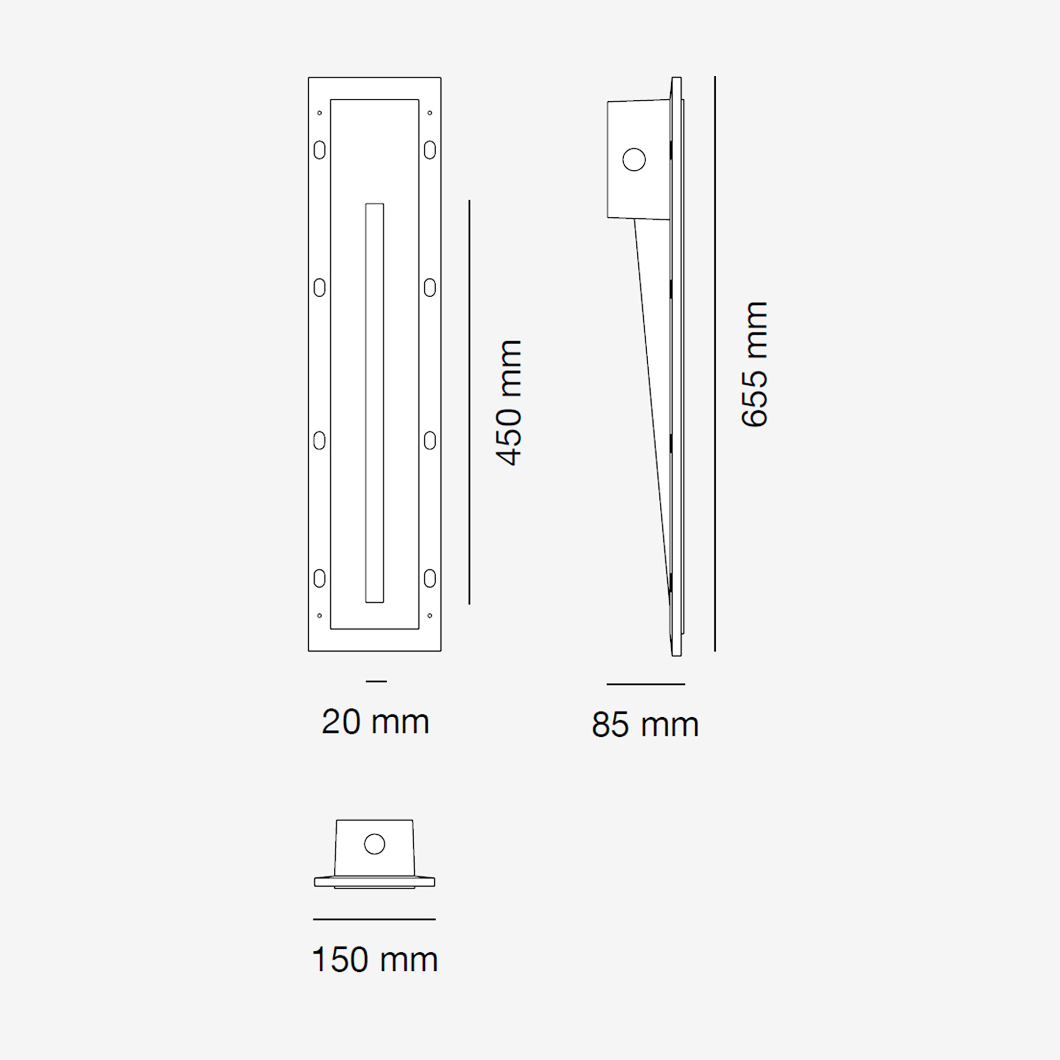

Dimensions

Product dimensions: W.150mm x D.90mm x H.650mm

Diffuser dimensions: W.20mm x H.450mm

Downloads

• Materials | BETALY® PDF
• Hint Big 1304C Data Sheet PDF
• Hint Big 1304C Install Instructions PDF

Delivery and warranty

Handmade in Italy - delivery usually within 4-5 weeks

About the manufacturer

The 9010 Novantadieci collection is a benchmark in recessed plaster-in lighting - evolving into an ever more complete range utilising innovative designs, creative lighting applications and the ultimate generation of LEDs. Vast experience as a leading Italian ceramic and lighting company has led to the creation of CRISTALY® - successfully combining mineral elements and stabilizers to create a matt surface finish with high UV and thermal resistance, and is non-allergenic, non-toxic and paintable with any water based paint. It is this fusion of tradition with technology that puts 9010 at the forefront of plaster in lighting.
