9010 Diago 1302A GU10 Outdoor Recessed Step / Low Level Wall Light

Manufacturer: 9010 Novantadieci

Description

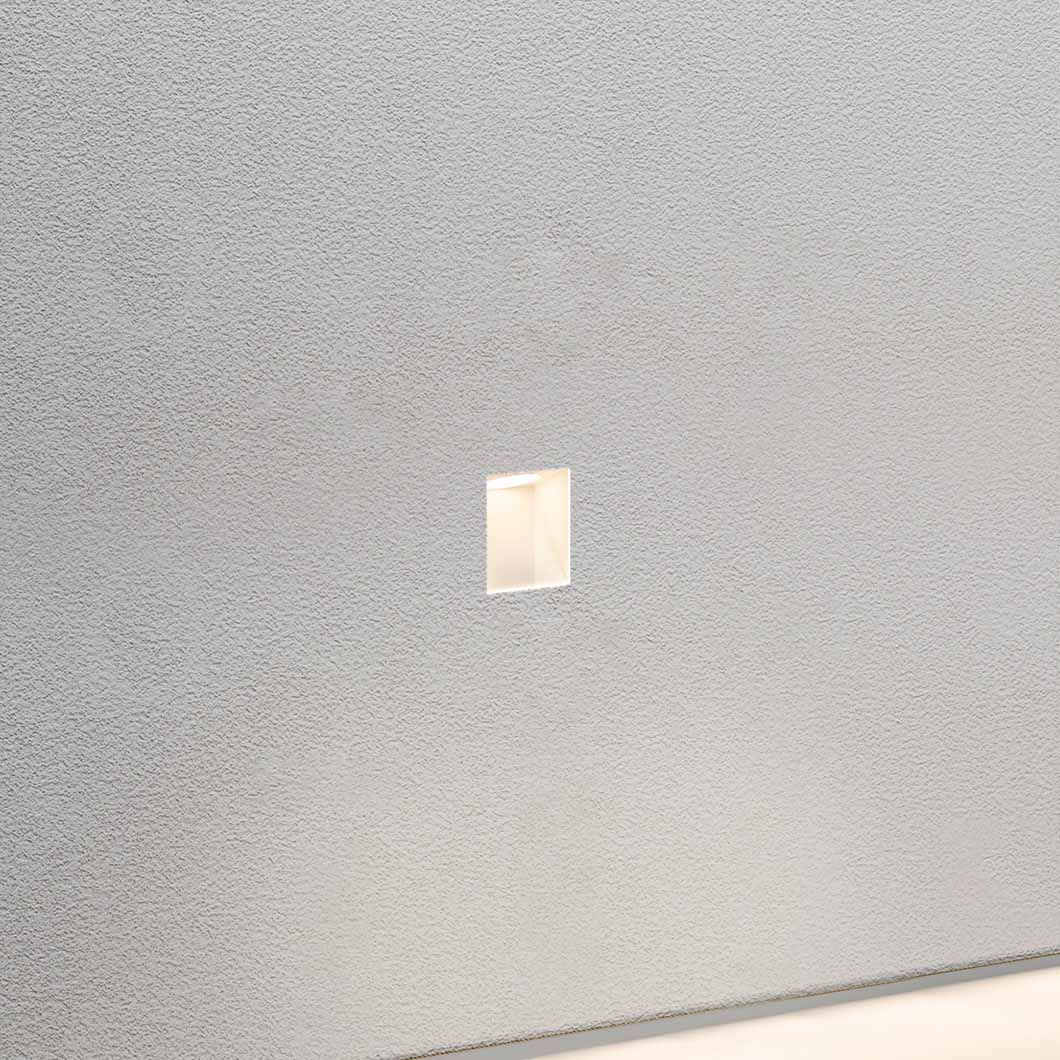

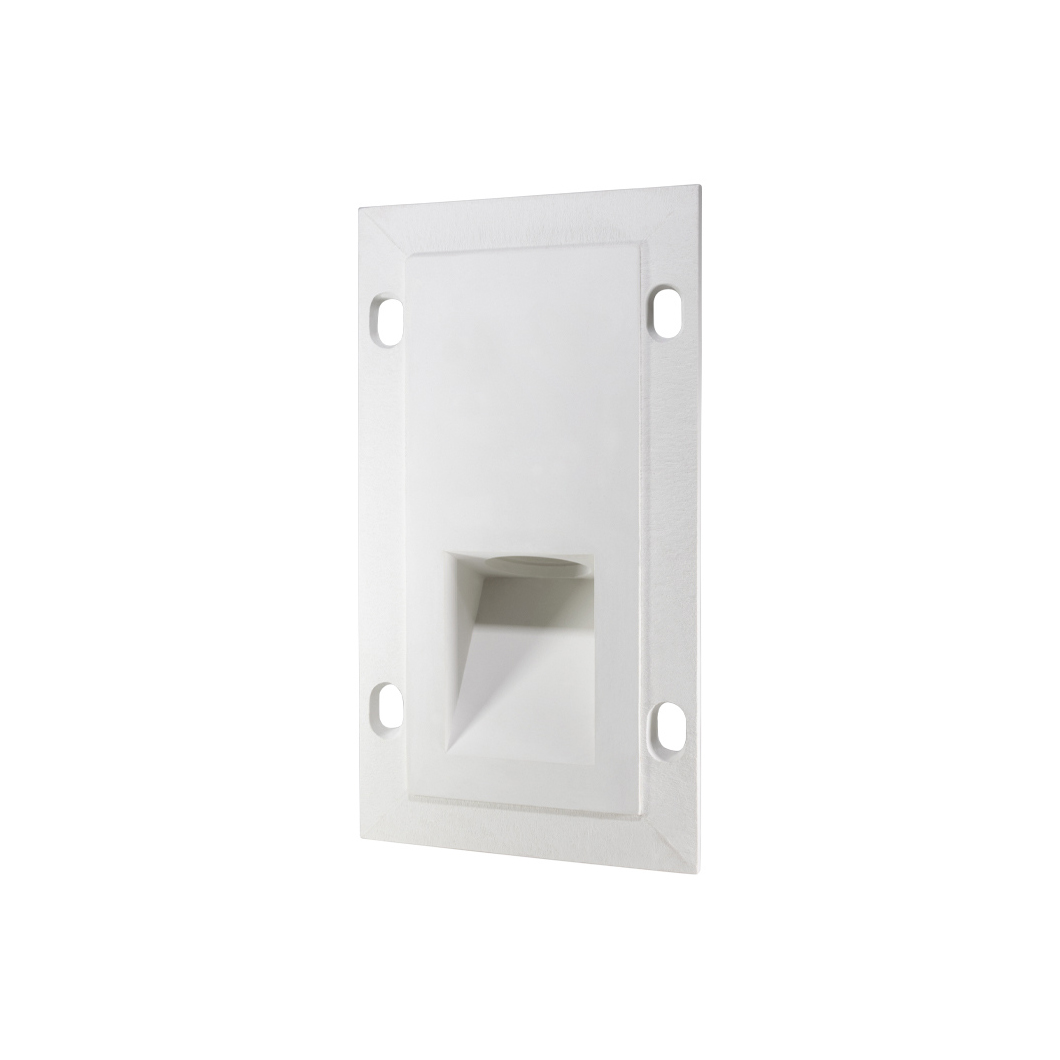

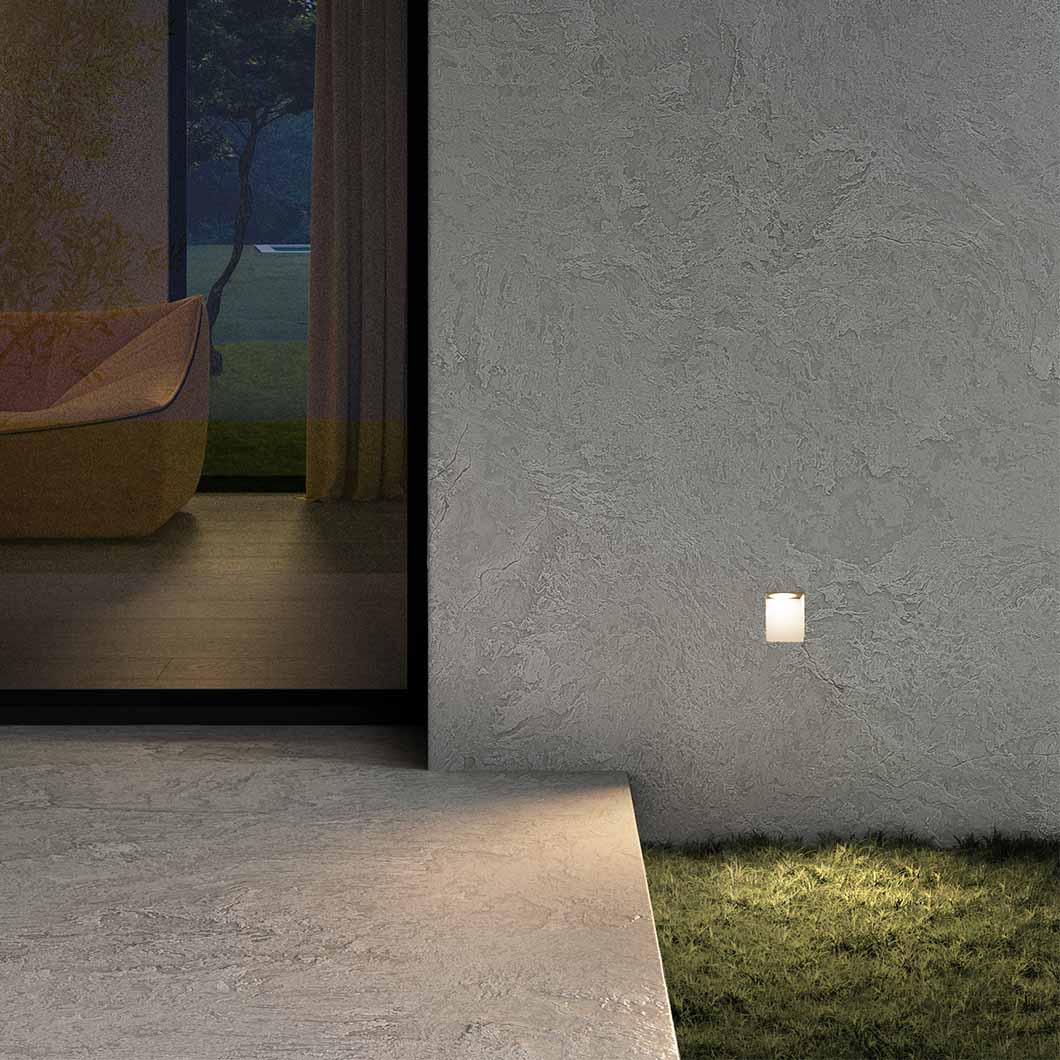

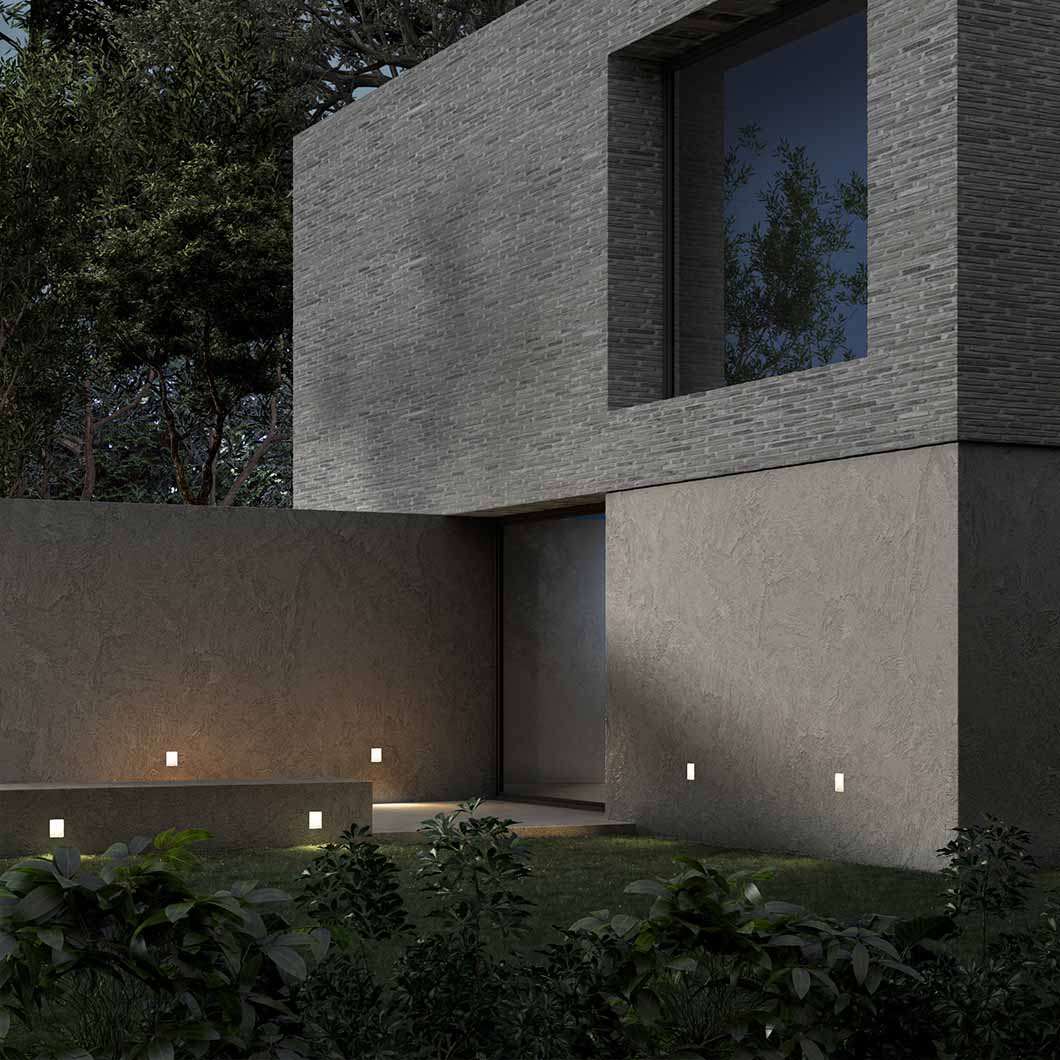

Designed specifically to wash steps, staircases, and paths in light, the Diago by 9010 Novantadieci is compatible with cladding insulation. The minimalist Diago path light has a visible opening of just 7cm x 9cm.

Handmade in Italy, Diago takes a retrofit GU10 Ø35mm lamp (not included), which keeps ongoing lamp maintenance simple. Once recessed into the wall, the Diago low level light fitting is plastered up to the BETALY® component, which can then be primed and painted for a seamless finish. The combination of the IP65 rating and weatherproof BETALY® material make Diago perfect for modern exterior landscaping projects.

See 'More Like This' below for similar recessed path fittings.

BETALY® - Artisanal raw material

Made from 9010 Novantadieci's very own material, BETALY® is a blend of:

cements
precious marbles
quartz
fluvial sands

which creates a material that combines strength, lightness and durability whilst being eco-friendly, non-toxic, recycled and solvent free.

Learn more about BETALY® by 9010 Novantadieci in the Downloads tab.

handmade in Italy (handwritten)

Specification

Isolation Class: II
IP: IP65
Installation: Recessed
Weight: 2.4 Kg

Power supply: Mains voltage
IP rating IP65
Type: Indirect light
Light source: GU10 Ø35 mm
Power: max 10W
Tension: 230-240V
Hz 50/60

Finish: White (RAL code 392)

Preparation / finishing cycle to colour the products in BETALY®:
1) Apply a solvent based primer (eventually as second choice an acrylic based one);
2) Wait the required drying time;
3) Apply the acrylic based finishing colour.

Lamp type: GU10 Ø35 mm | Max 10W | not included

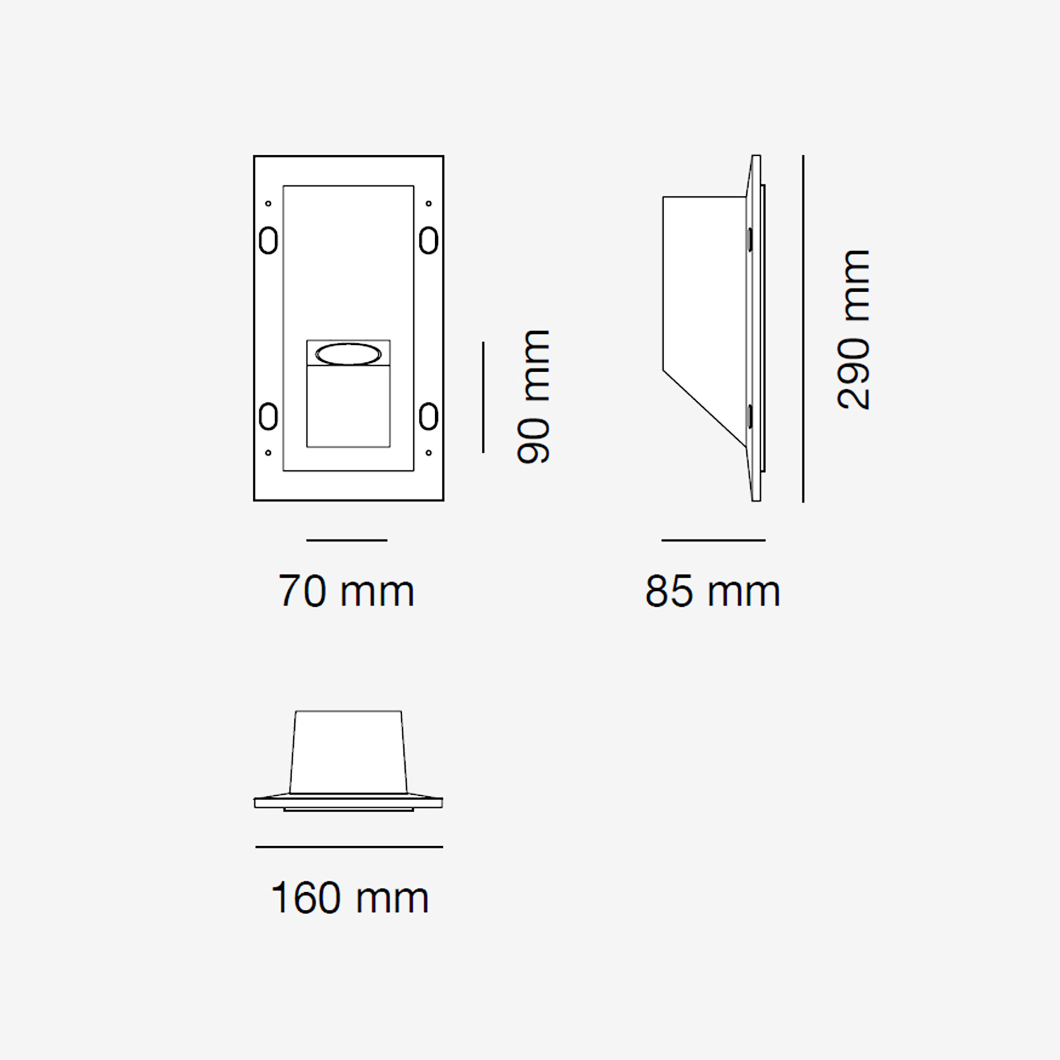

Dimensions

Product dimensions: W.165mm x D.85mm x H.290mm

Diffuser dimensions: W.70mm x H.90mm

Downloads

Delivery and warranty

Handmade in Italy - delivery usually within 4-5 weeks
