9010 Cave Big 1301C GU10 Outdoor Recessed Step / Low Level Wall Light

Description

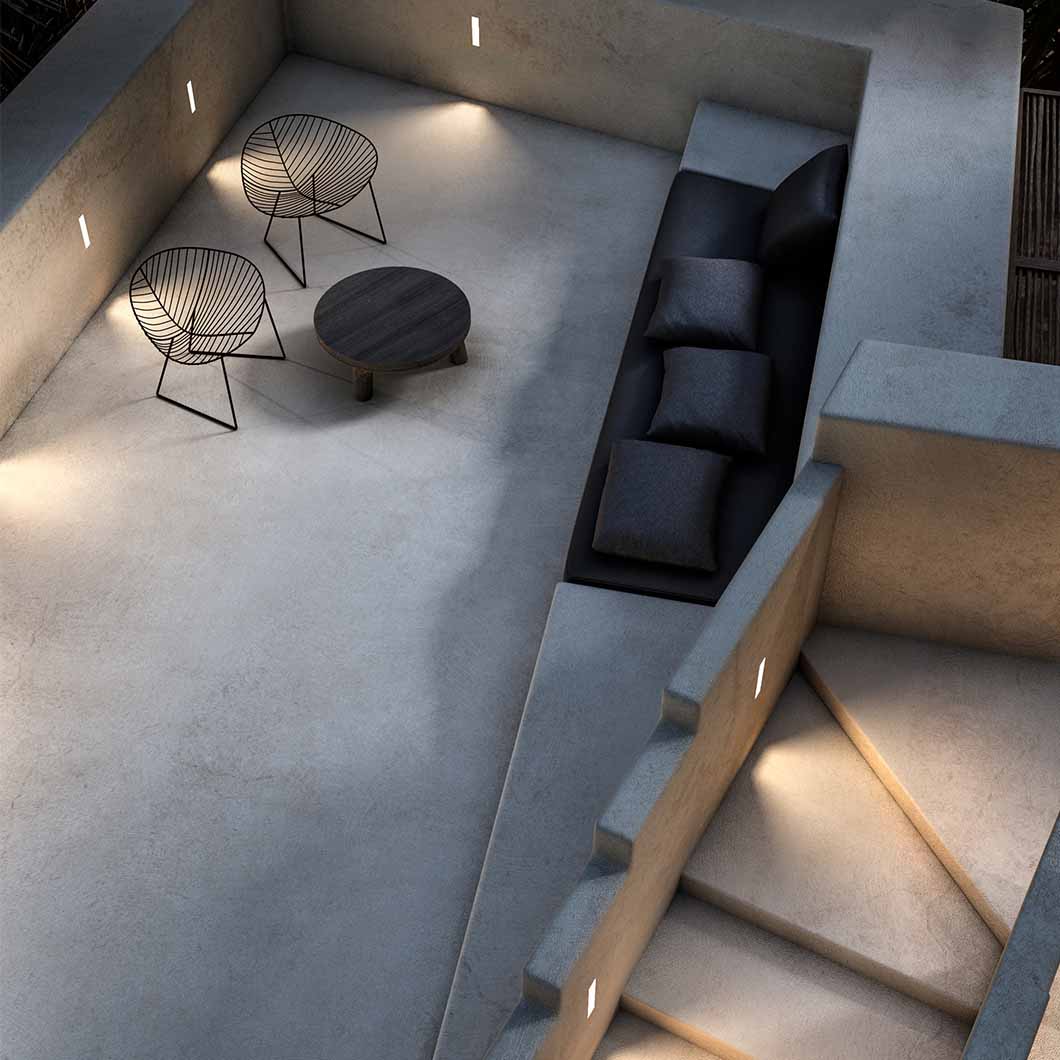

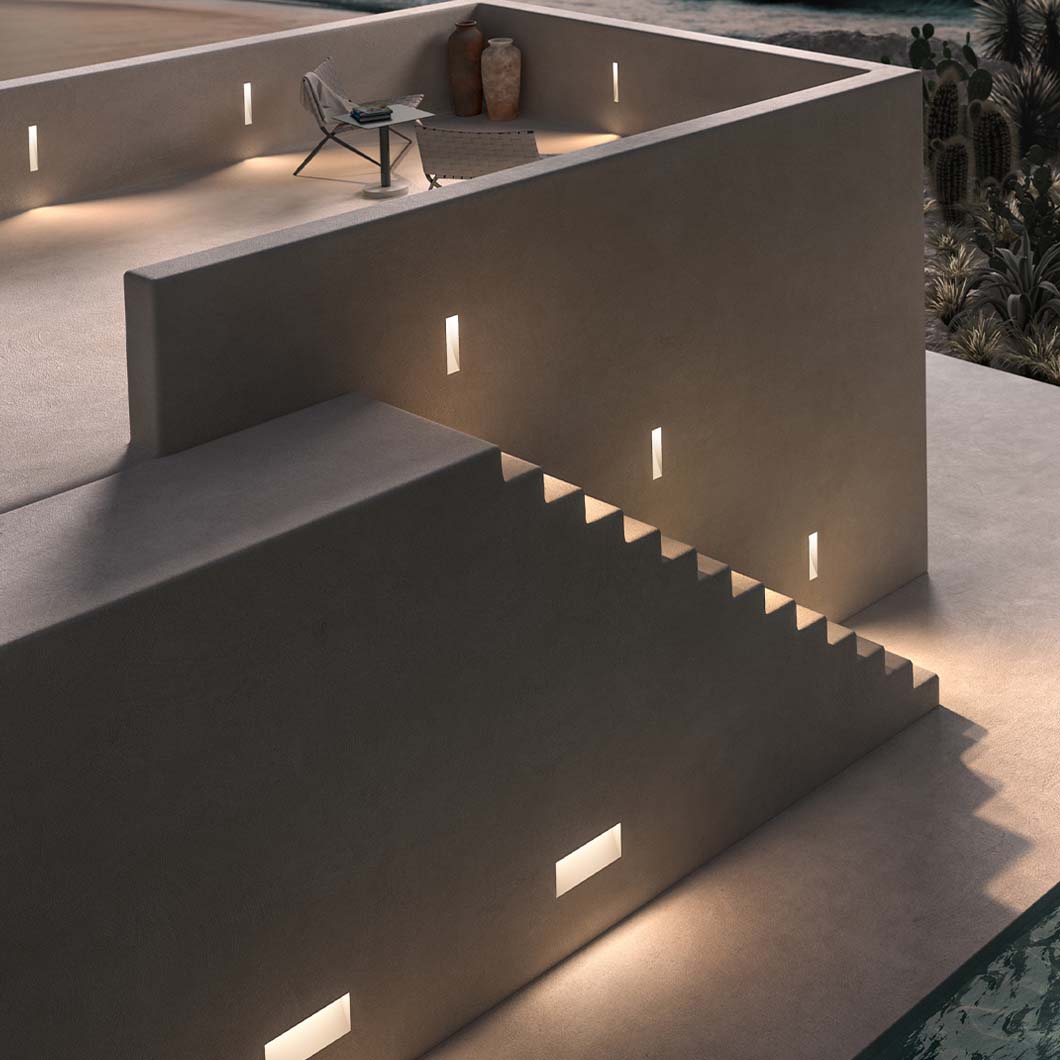

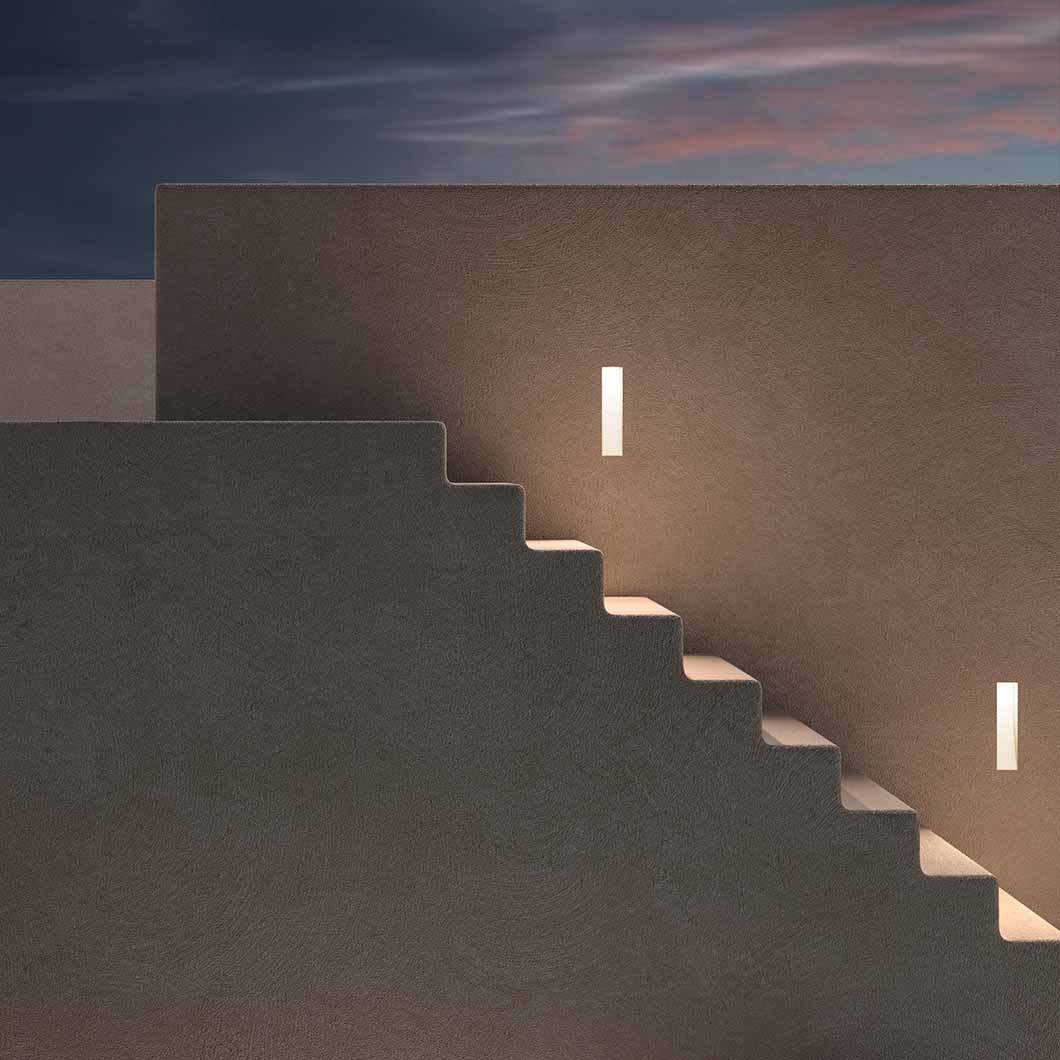

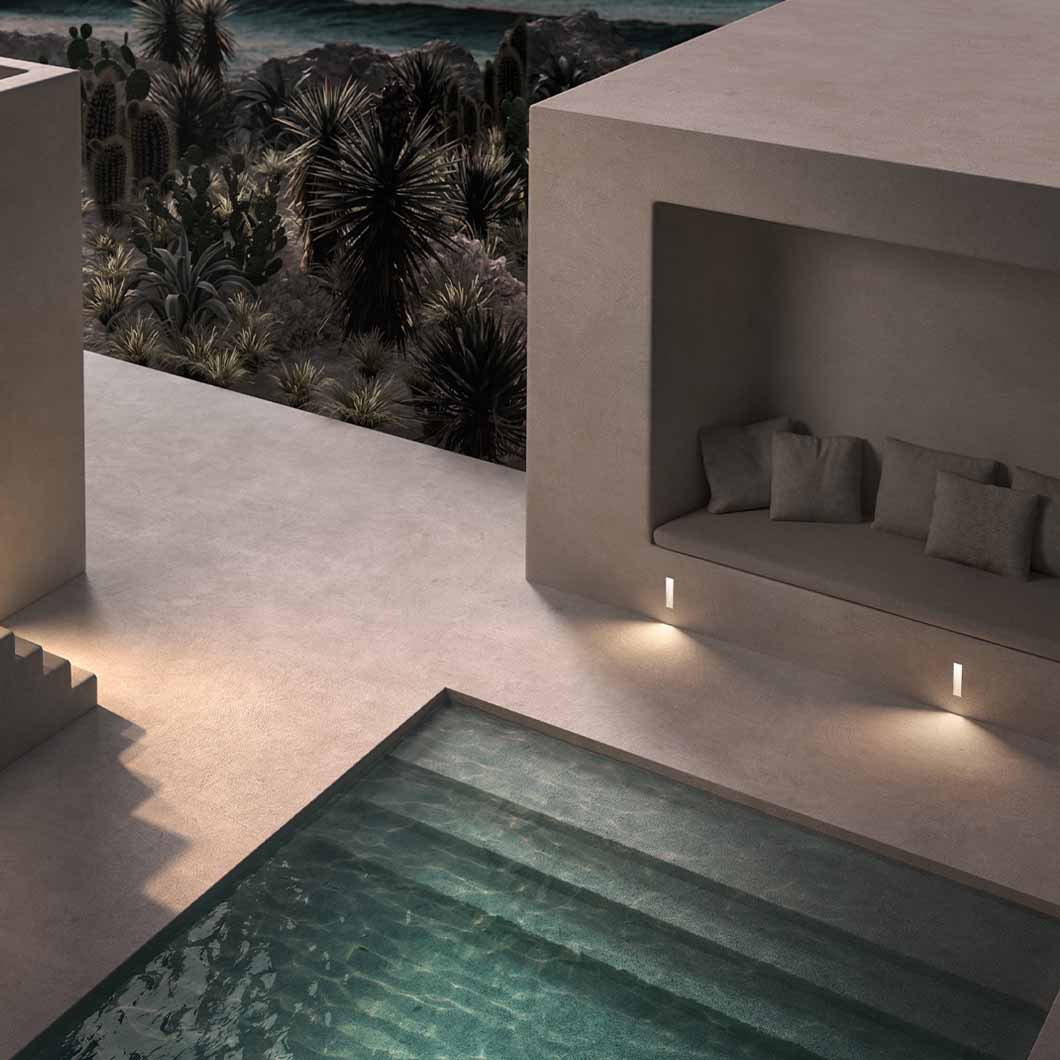

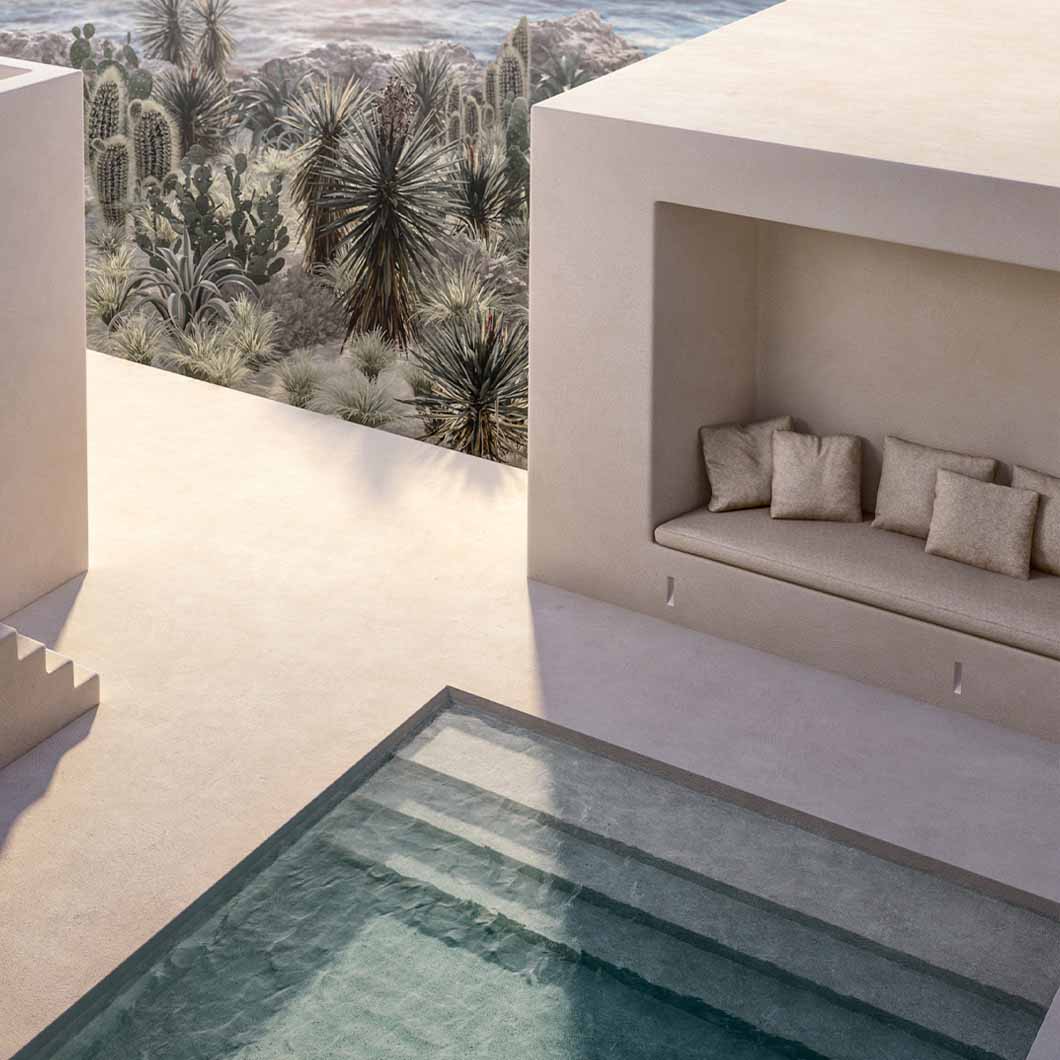

The minimalist Cave Big wall recessed path light by 9010 Novantadieci is a member of a larger outdoor lighting family, designed specifically to wash steps, staircases, and paths in light. Compatible with cladding insulation, the Cave Big low level light fitting has a visible height of 30cm but is slightly wider than Cave 1301B.

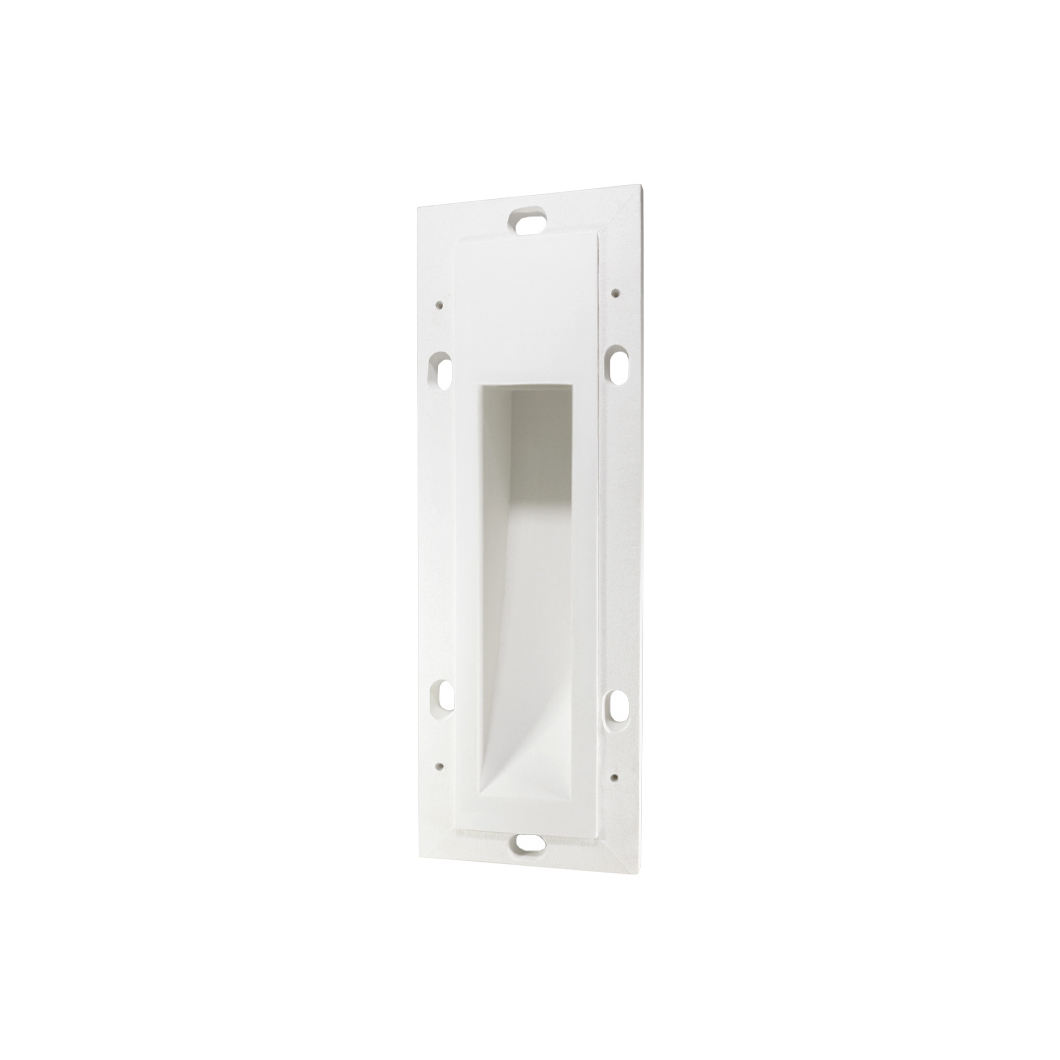

Handmade in Italy, Cave Big is recessed into the wall and plastered up to the BETALY® component, which can then be primed and painted for a seamless finish. Future maintenance of the fitting is simple, as Cave Big uses a retrofit GU10 Ø35mm lamp - not included. The combination of the IP65 rating and weatherproof BETALY® material make Cave Big perfect for contemporary exterior landscaping projects.

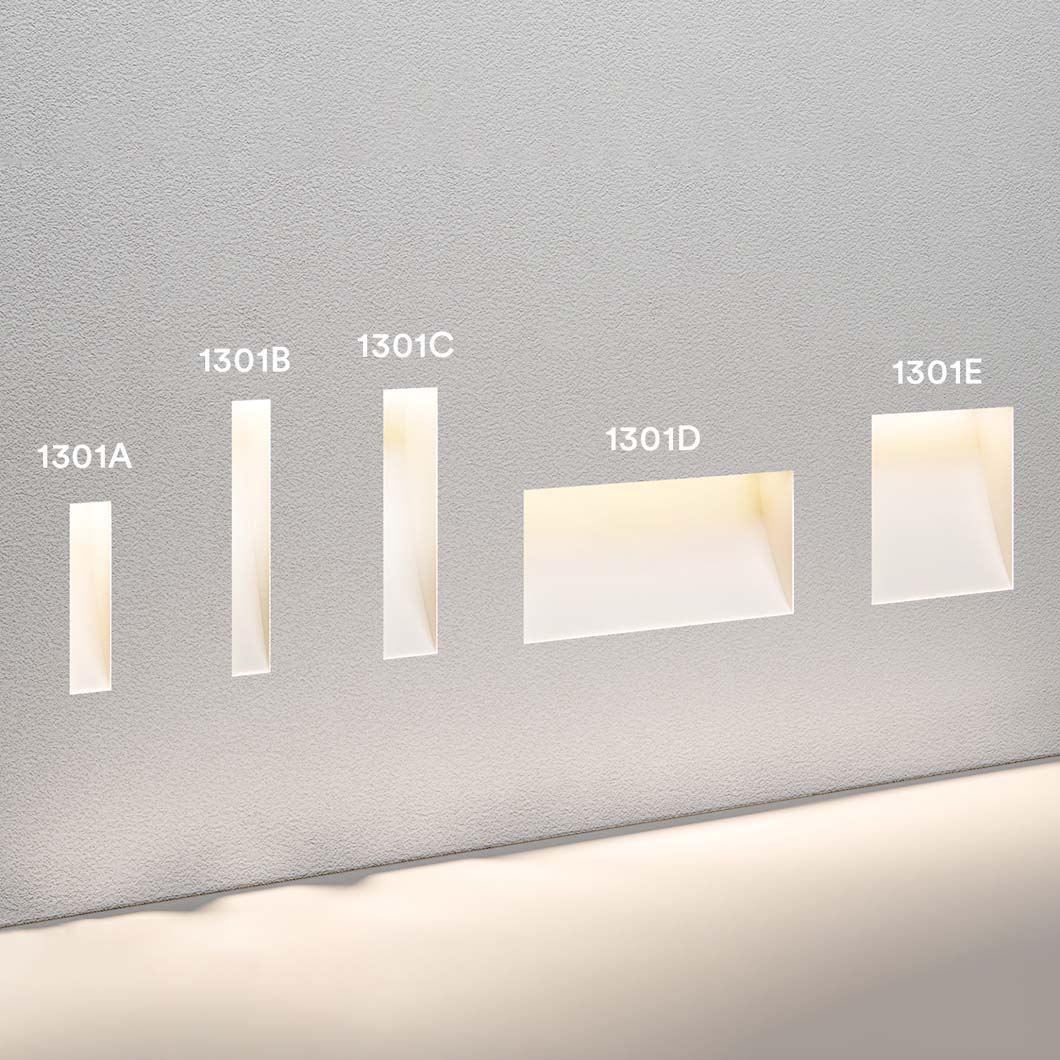

The 9010 Cave family is available in 5 different sizes - see 'More Like This' below.

BETALY® - Artisanal raw material

Made from 9010 Novantadieci's very own material, BETALY® is a blend of:

• cements
• precious marbles
• quartz
• fluvial sands

which creates a material that combines strength, lightness and durability whilst being eco-friendly, non-toxic, recycled and solvent free.

Learn more about BETALY® by 9010 Novantadieci in the Downloads tab.



Specification

Isolation Class: II
IP: IP65
Installation: Recessed
Weight: 4.3 Kg

Power supply: Mains voltage
IP rating IP65
Type: Indirect light
Light source: GU10 Ø35 mm
Power: max 10W
Tension: 230-240V
Hz 50/60

Finish: White (RAL code 392)

Preparation / finishing cycle to colour the products in BETALY®:
1) Apply a solvent based primer (eventually as second choice an acrylic based one);
2) Wait the required drying time;
3) Apply the acrylic based finishing colour.

Lamp type: GU10 Ø35 mm | Max 10W | not included

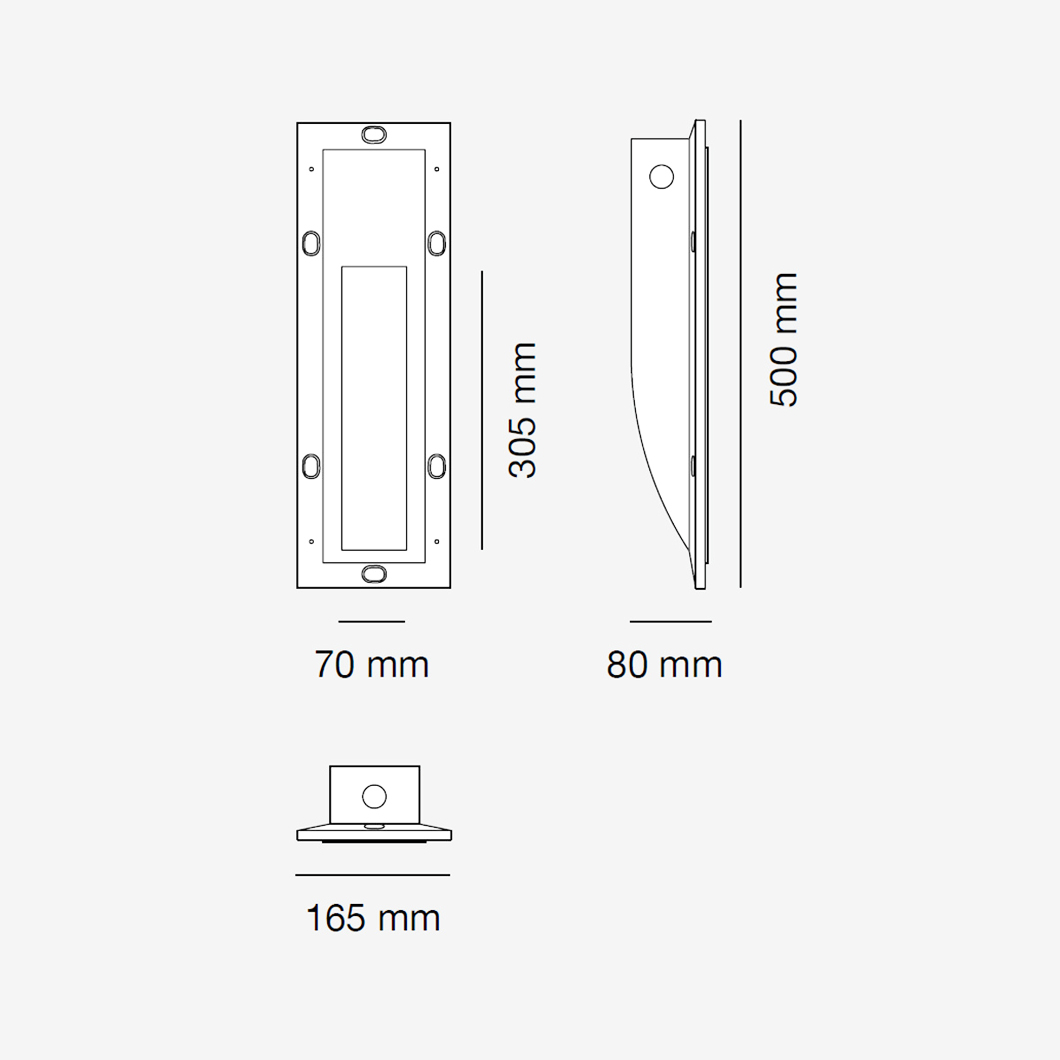

Dimensions

Product dimensions: W.165mm x D.82mm x H.500mm

Diffuser dimensions: W.70mm x H.305mm

Downloads

• Materials | BETALY® PDF
• Cave Big 1301C Data Sheet PDF
• Cave Big 1301C Install Instructions PDF

Delivery and warranty

Handmade in Italy - delivery usually within 4-5 weeks
